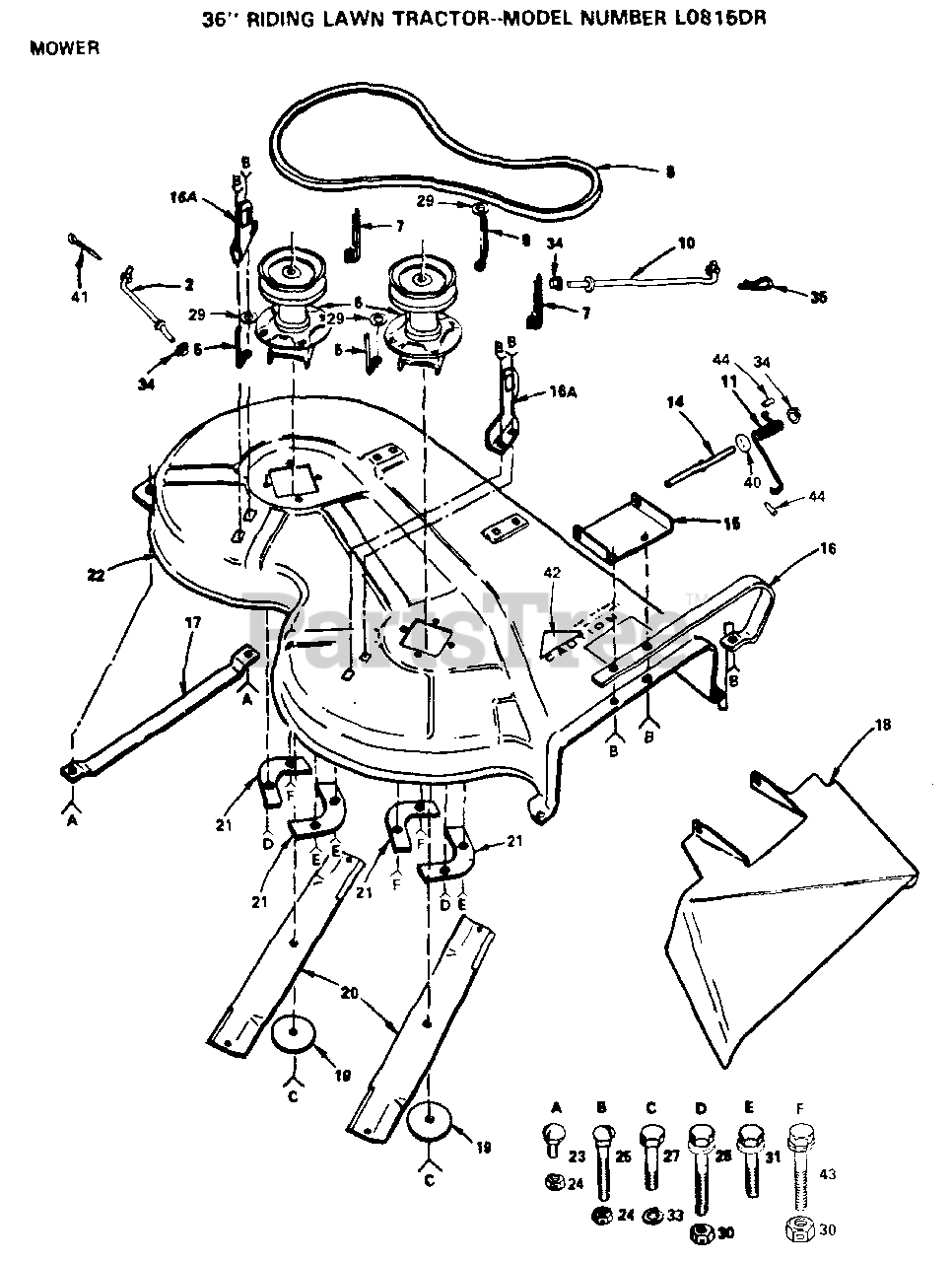

L 0815 DR - Electrolux/AYP Lawn Tractor MOWER Parts Diagram

Lawn Tractor

MOWER Parts Diagram

  • Title
2

Electrolux/AYP 100516L

BRAKE ROD LT

$

$

Not available

5

Electrolux/AYP 535J

BELT SNUBBER T

$

$

Not available

6

Electrolux/AYP 101479X

SUB= 101477X

$

$

Not available

7

Electrolux/AYP 106577X

BRAKE.ASSY.LT.
(Superseded to 583651401)

$21.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 106412X

SUB= TH4H690
(Superseded to 583785901)

$30.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 1763J

BELT SNUBBER T
(Superseded to 583696401)

$9.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 100517L

BRAKE ROD LT

$

$

Not available

11

Electrolux/AYP 71526

SPRING LT
(Superseded to 582936401)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 100569K

HINGE ROD LT
(Superseded to 583637101)

$2.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 71528

SUB= 120244X

$

$

Not available

16

$

$

Not available

16A

Electrolux/AYP 4487J

BRACKET.LIFT
(Superseded to 583767701)

$6.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 4496J

SKID LH T
(Superseded to 583767801)

$3.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 100544N

SUB= 102811X

$

$

Not available

19

Electrolux/AYP 19133808

WASHER T
(Superseded to 583789501)

$

$

Not available

20

$

$

Not available

21

Electrolux/AYP 100668L

SUPPORT PLATE LT
(Superseded to 532100668)

$

$

Not available

22

Electrolux/AYP 4495J

SUB= 121150X

$

$

Not available

23

Electrolux/AYP 72140505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

24

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 74610624

BOLT.3/8-24X1-1/2
(Superseded to 874610624)

$6.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

29

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

30

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 5846R

SUB= 110452X

$

$

Not available

35

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

40

Electrolux/AYP 19111416

WASHER
(Superseded to 819111416)

$

$

Not available

41

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

42

$

$

Not available

43

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

44

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0
