L 0815 DR - Electrolux/AYP Lawn Tractor ENCLOSURE Parts Diagram

Lawn Tractor

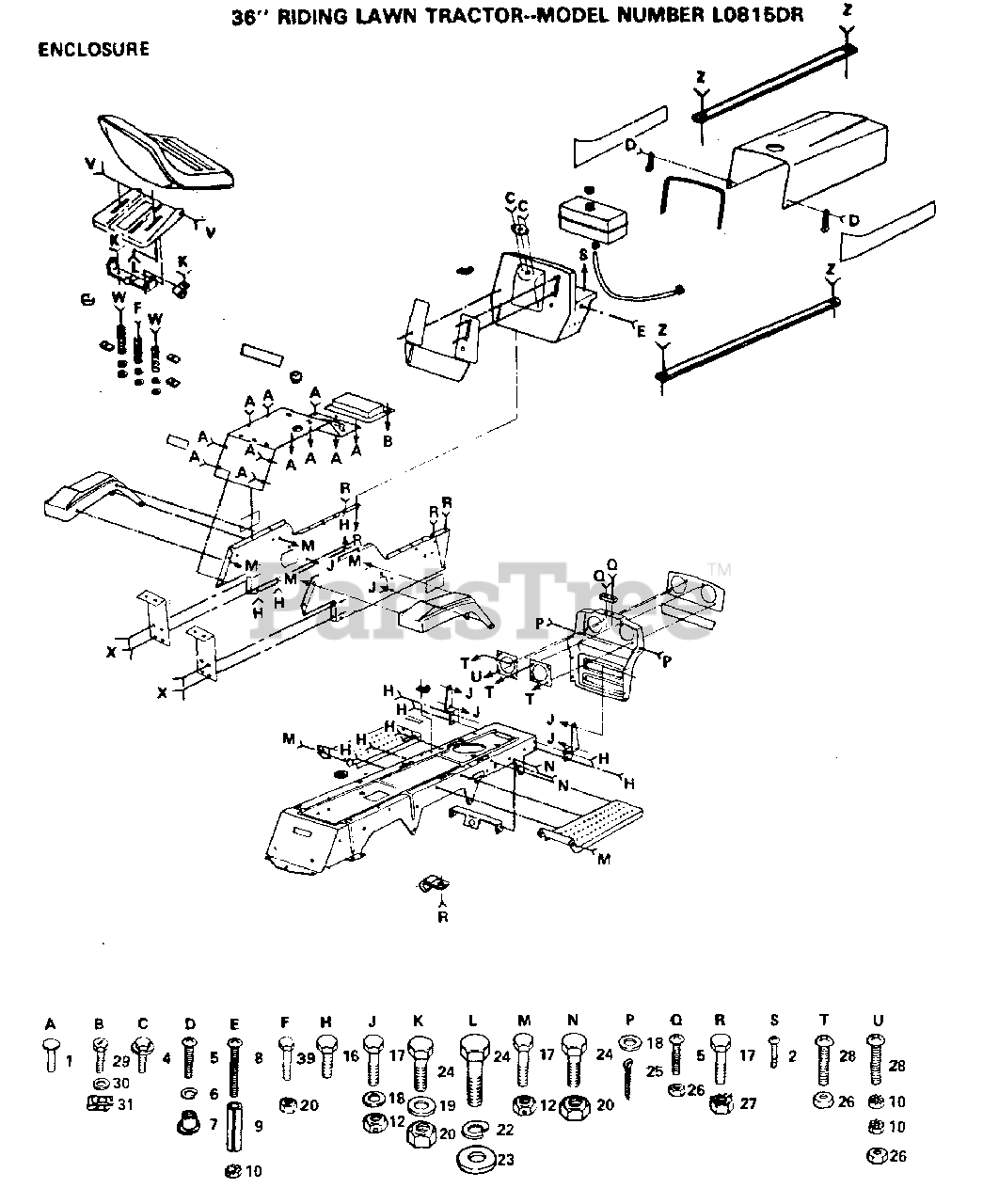

ENCLOSURE Parts Diagram

  • Title

1

Electrolux/AYP 110058X

SUB= 110057X

$

$

Not available

2

Electrolux/AYP 481J

DECAL

$

$

Not available

3

Electrolux/AYP 100770L

NLA

$

$

Not available

4

Electrolux/AYP 482J

DECAL

$

$

Not available

5

Electrolux/AYP 2521R

CLIP SB
(Superseded to 583730101)

$

$

Not available

6

Electrolux/AYP 109732X

SUB= 110381X

$

$

Not available

7

Electrolux/AYP 102803X

SUB= 918102803X
(Superseded to 532155107)

$7.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 73427

TANK.FUEL.LT

$

$

Not available

9

Electrolux/AYP 74145

FUEL CAP

$

$

Not available

10

Electrolux/AYP 109321X

NLA

$

$

Not available

11

Electrolux/AYP 100225L

SUB= 109808X
(Superseded to 532109808)

$6.99

$

In Stock, Qty 13

0

12

Electrolux/AYP 105901X366

NLA

$

$

Not available

13

Electrolux/AYP 109322X

DECAL

$

$

Not available

14

Electrolux/AYP 8937R

SUB= 892J

$

$

Not available

15

Electrolux/AYP 6999R

SUB= 123487X

$

$

Not available

16

Electrolux/AYP 3807R

BUSHING

$

$

Not available

18

Electrolux/AYP 105712X

"PANEL LT, BATTE "

$

$

Not available

19

Electrolux/AYP 109659X

PANEL TOP T

$

$

Not available

20

Electrolux/AYP 104150X366

NLA

$

$

Not available

21

Electrolux/AYP 105788X

NLA

$

$

Not available

22

Electrolux/AYP 104819X

PANEL-SIDE LH LT

$

$

Not available

23

Electrolux/AYP 104694X

PANEL-SIDE RH LT

$

$

Not available

24

Electrolux/AYP 104149X366

NLA

$

$

Not available

25

Electrolux/AYP 109734X366

NLA

$

$

Not available

26

Electrolux/AYP 470J

HOOD BUMPER

$

$

Not available

27

Electrolux/AYP 109324X

NLA

$

$

Not available

28

Electrolux/AYP 104290X

DECAL LT

$2.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 73025

SUB= 2702J

$

$

Not available

30

Electrolux/AYP 104140X

BRACKET-SUPP LT

$

$

Not available

31

Electrolux/AYP 104663X

NLA

$

$

Not available

32

Electrolux/AYP 109653X

CHANNEL ASSY

$

$

Not available

36

Electrolux/AYP 109871X

BRKT.ASM.SEAT.P

$

$

Not available

37

Electrolux/AYP 104662X

FOOT REST

$

$

Not available

38

Electrolux/AYP 109323X

NLA

$

$

Not available

39

Electrolux/AYP 376J

DECAL

$

$

Not available

40

Electrolux/AYP 100207K

CLIP GTV
(Superseded to 532100207)

$4.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 104141X

BRACKET-SUPP LT

$

$

Not available

43

Electrolux/AYP 8548R

FUEL LINE T
(Superseded to 532008548)

$7.99

$

In Stock, only 1 left!

0

44

Electrolux/AYP 1626J

AXLE SUPPORT T
(Superseded to 583684901)

$14.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

46

Electrolux/AYP 106974X

SUB= 133796

$

$

Not available

47

Electrolux/AYP 109866X

SEAT PAN T
(Superseded to 583658401)

$36.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 105512X

SPRING LT

$

$

Not available

49

Electrolux/AYP 105514X

"CLAMP, SPRING LT"
(Superseded to 583646001)

$2.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 109660X

SUPPORT T

$8.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 109686X

SUB= 109869X

$

$

Not available

53

Electrolux/AYP 109867X

SPRING T
(Superseded to 583658501)

$60.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 109724X

BRACE

$

$

Not available

55

Electrolux/AYP 109412X

CAP T
(Superseded to 532109412)

$2.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 109641X

GROMMET T
(Superseded to 583657901)

$2.99

$

Usually ships in 3-10 days

0
