L 0815 DR - Electrolux/AYP Lawn Tractor CLUTCH-BRAKE AND DRIVE Parts Diagram

Lawn Tractor

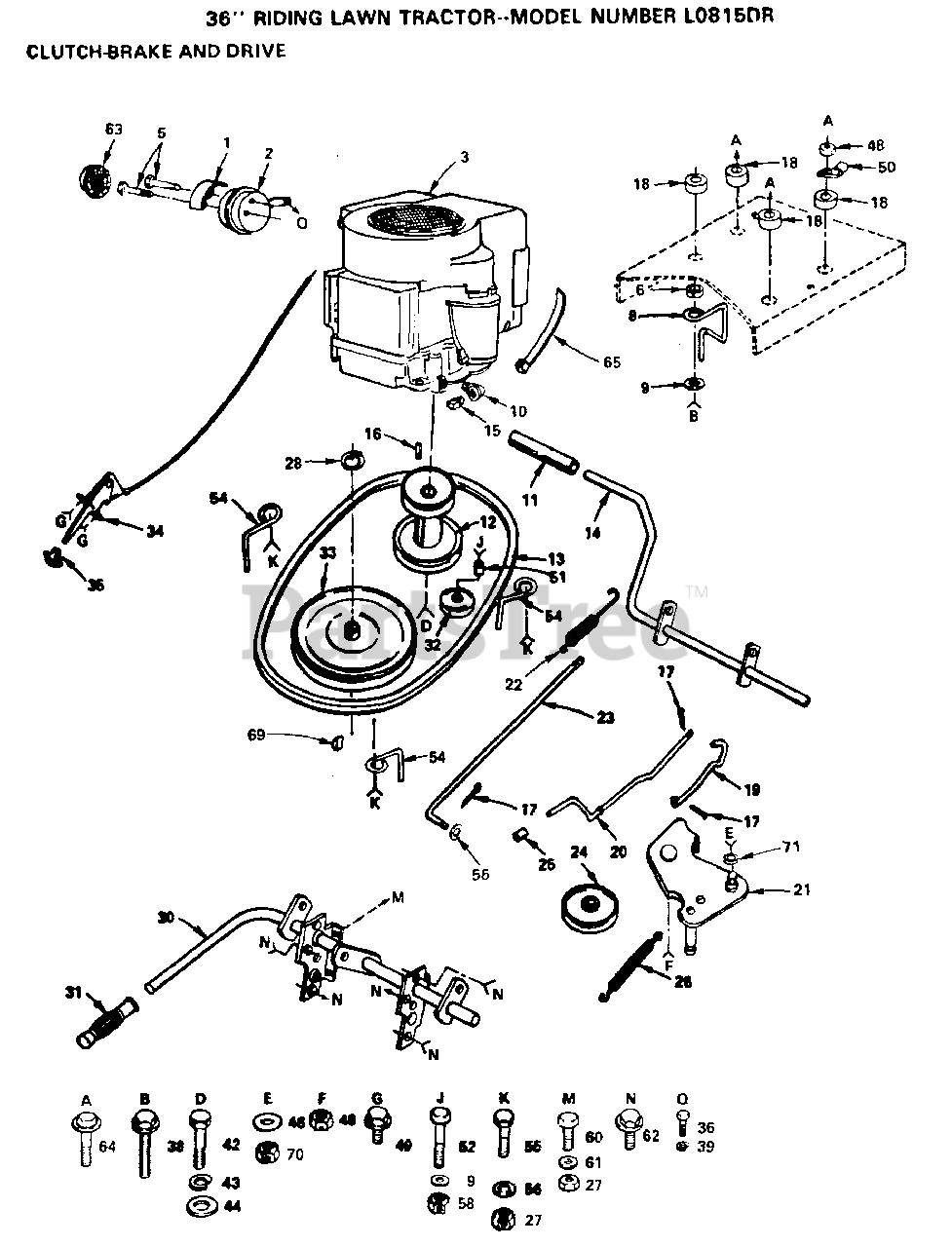

CLUTCH-BRAKE AND DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 101159L

SHIELD HEAT LTV
(Superseded to 583638401)

$3.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 101273M

MUFFLER LTV
(Superseded to 583638801)

$72.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 252707

ENGINE-B&S

$

$

Not available

5

Electrolux/AYP 74780552

BOLT
(Superseded to 582740501)

$2.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 101201K

SPACER LT
(Superseded to 583638501)

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 1666J

BELT SNUBBER T
(Superseded to 583689001)

$

$

Not available

9

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 13240300

STREET ELBOW LT
(Superseded to 813240300)

$7.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 8883R

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 7731J

SUB= 144671

$

$

Not available

13

Electrolux/AYP 1629J

V-BELT.83.0
(Superseded to 583685001)

$26.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 100506M

FT PEDAL SHAFT LT

$

$

Not available

15

Electrolux/AYP 91084

PLUG OIL DRAIN

$

$

Not available

16

Electrolux/AYP 9396E

SQ KEY STD
(Superseded to 532009396)

$3.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 76020312

SUB= 3145
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 101200K

SPACER LT

$

$

Not available

19

Electrolux/AYP 1636J

CLUTCH ROD LT

$

$

Not available

20

Electrolux/AYP 104142X

BRAKE ROD LT

$

$

Not available

21

Electrolux/AYP 109655X

IDLER BRKT T

$

$

Not available

22

Electrolux/AYP 1635J

BRAKE SPRING T
(Superseded to 583685701)

$13.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 109194X

BRAKE ROD T

$

$

Not available

24

Electrolux/AYP 67400

SUB= 104679X

$

$

Not available

25

Electrolux/AYP 7733J

SUB= 71673

$

$

Not available

26

Electrolux/AYP 100123L

SPRING LT

$

$

Not available

27

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 12000028

SUB= 2267J
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

30

Electrolux/AYP 102794X

SHAFT ASSY LT

$

$

Not available

31

Electrolux/AYP 7735J

HANDLE GRIP

$

$

Not available

32

Electrolux/AYP 105307X

IDLER.PULLEY.LT
(Superseded to 583645001)

$109.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 1631J

PULLEY.TRANSAXLE

$

$

Not available

34

Electrolux/AYP 7929J

SUB= 132768

$

$

Not available

35

Electrolux/AYP 61159

KNOB

$

$

Not available

36

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 17490640

SCREW
(Superseded to 817490640)

$

$

Not available

39

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

42

Electrolux/AYP 74770724

BOLT
(Superseded to 582740201)

$2.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 19152405

WASHER LT
(Superseded to 819152405)

$6.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 19112410

WASHER
(Superseded to 819112410)

$6.49

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

51

Electrolux/AYP 4470J

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 74760636

BOLT
(Superseded to 874760636)

$6.49

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 1642J

BELT SNUBBER T

$

$

Not available

55

Electrolux/AYP 74760516

SUB= 77394

$

$

Not available

56

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

61

Electrolux/AYP 19111214

WASHER
(Superseded to 819111214)

$

$

Not available

62

Electrolux/AYP 17490610

SCREW LT
(Superseded to 817490610)

$4.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 673A223

SCREEN
(Superseded to 532124835)

$56.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 17490632

SCREW LT
(Superseded to 817490632)

$

$

Not available

65

Electrolux/AYP 7192J

WIRE TIE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

69

Murray 2228M

SUB= 2228M1

$

$

Not available

70

Electrolux/AYP 1685H

SUB= 68478
(Superseded to 532001685)

$

$

Not available

71

Electrolux/AYP 109657X

SPACER T
(Superseded to 583658001)

$

$

Not available
