KWS 30 A (HD080A-BS00) - Kawasaki Semi Trash Pump HOUSING Parts Diagram

Semi Trash Pump

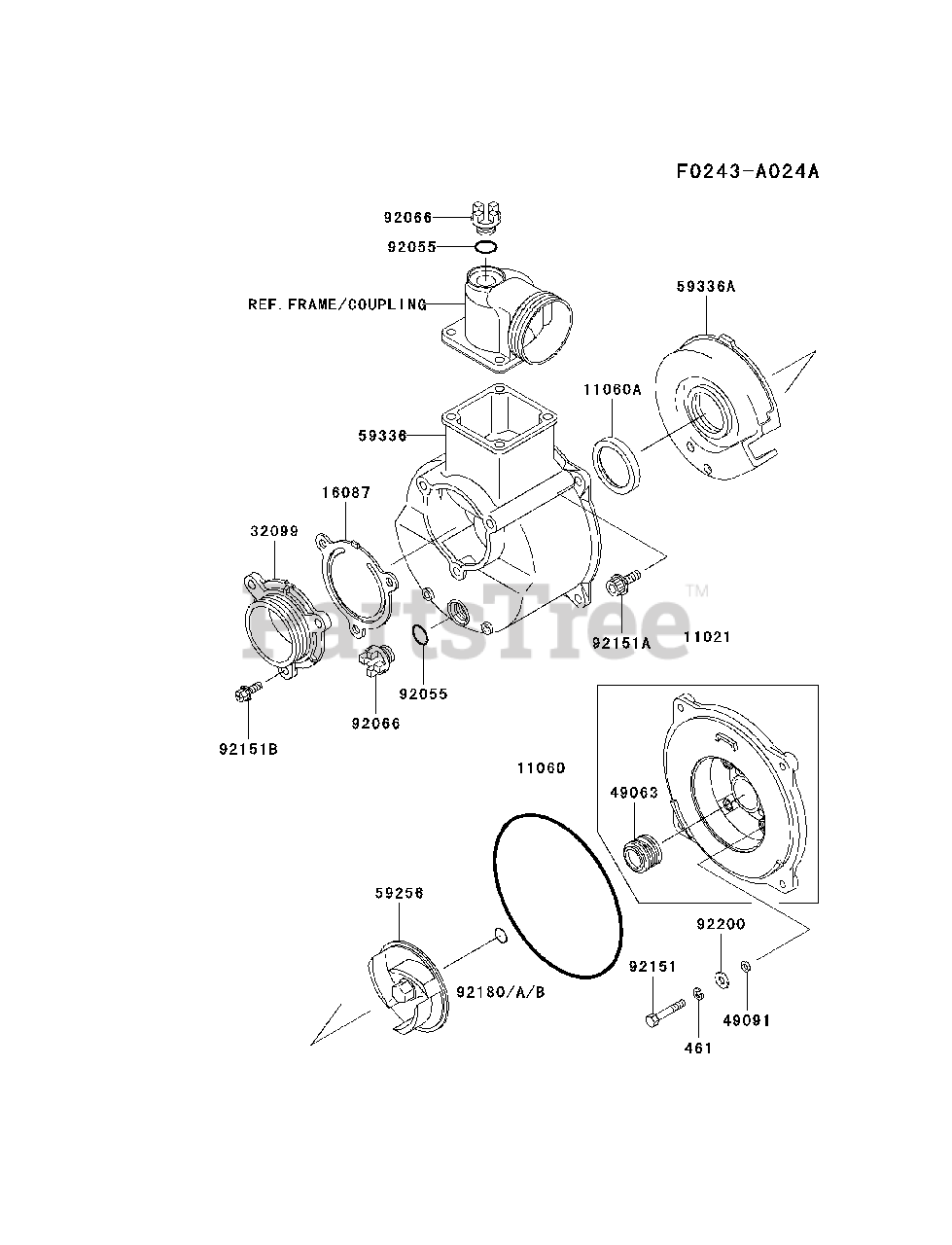

HOUSING Parts Diagram

  • Title
11021

$

$

Not available

11060

Kawasaki 11060-2416

GASKET,HOUSING

$

$

Not available

11060A

Kawasaki 11060-2418

GASKET,INNER CASE

$

$

Not available

16087

Kawasaki 16087-2064

VALVE-CHECK

$

$

Not available

32099

Kawasaki 32099-2332

CASE,VALVE

$

$

Not available

49063

Kawasaki 49063-2060

SEAL-MECHANICAL

$130.99

$

Usually ships in 2-5 days

0

49091

Kawasaki 49091-2056

WASHER-SEAL

$

$

Not available

59256

$

$

Not available

59336

$

$

Not available

59336A

Kawasaki 59336-2067

CASE-PUMP,INNER

$

$

Not available

92055

$1.99

$

In Stock, only 2 left!

0

92066

$

$

Not available

92151

$3.99

$

Usually ships in 2-5 days

0

92151A

Kawasaki 92151-2084

BOLT,10X30

$

$

Not available

92151B

$

$

Not available

92180

Kawasaki 92180-2046

SHIM,T=0.3

$

$

Not available

92180A

Kawasaki 92180-2047

SHIM,T=0.6

$

$

Not available

92180B

Kawasaki 92180-2048

SHIM,T=1.0

$

$

Not available

92200

$0.99

$

In Stock, Qty 6

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
