KWS 20 A (HD050A-BS00) - Kawasaki Semi Trash Pump FUEL-TANK/FUEL-VALVE Parts Diagram

Semi Trash Pump

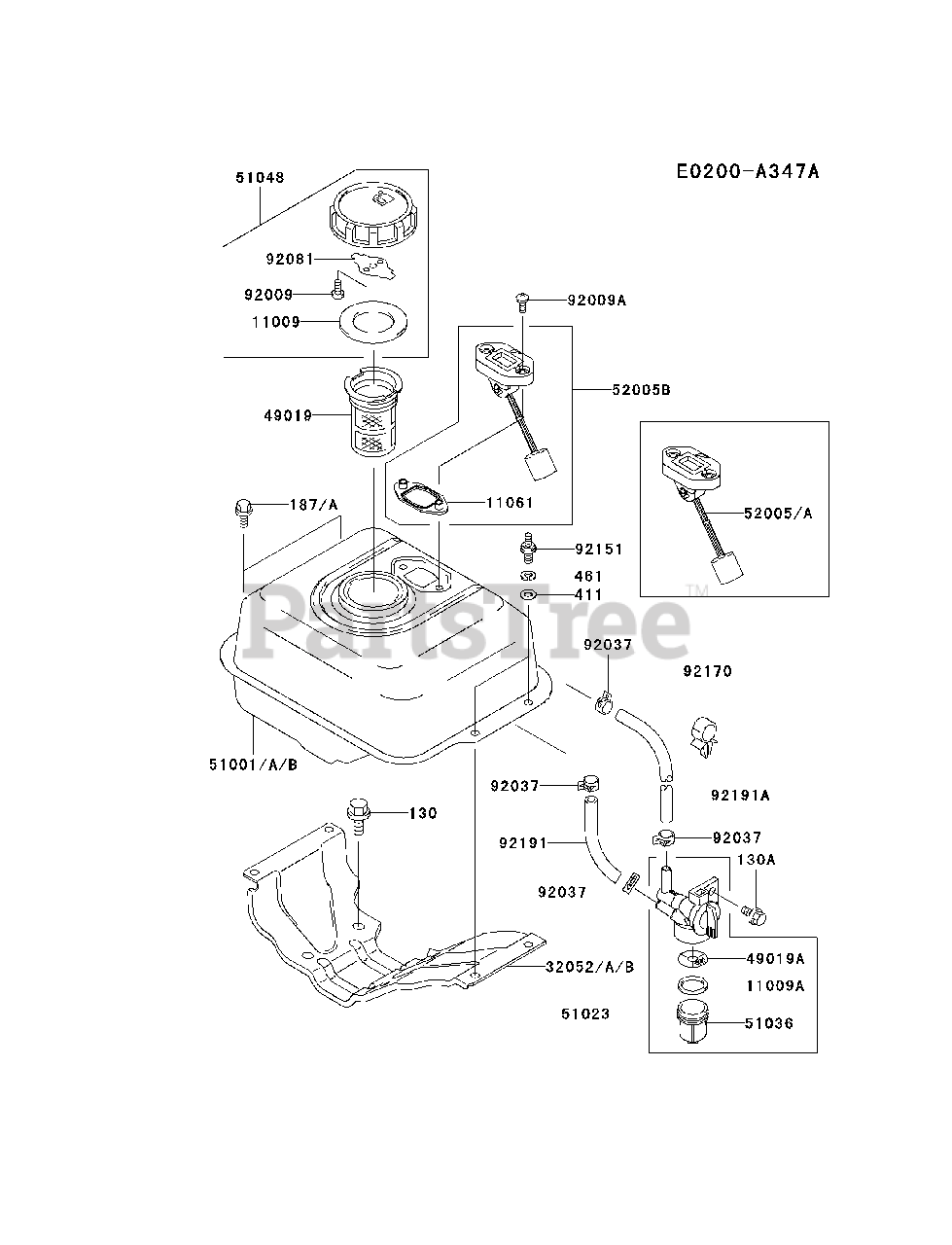

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title
11009

Kawasaki 11009-2115

GASKET
(Superseded to 11009-2044)

$2.49

$

Usually ships in 2-5 days

0

11009A

Kawasaki 11009-2876

GASKET,FUEL TAP

$4.99

$

In Stock, only 3 left!

0

11061

$2.99

$

Usually ships in 2-5 days

0

32052

Kawasaki 32052-2209-XT

BRACKET-TANK

$

$

Not available

32052A

Kawasaki 32052-2219-XT

BRACKET-TANK

$

$

Not available

32052B

Kawasaki 32052-2222-XT

BRACKET-TANK

$

$

Not available

49019

Kawasaki 49019-2051

FILTER-FUEL
(Superseded to 49019-2003)

$6.99

$

In Stock, only 1 left!

0

49019A

Kawasaki 49019-2095

FILTER-FUEL
(Superseded to 49019-2101)

$6.49

$

In Stock, only 2 left!

0

51001

Kawasaki 51001-2254-XT

TANK-COMP-FUEL
(Superseded to 51001-2306-XT)

$

$

Not available

51001A

Kawasaki 51001-2304-XT

TANK-COMP-FUEL
(Superseded to 51001-2306-XT)

$

$

Not available

51001B

Kawasaki 51001-2306-XT

TANK-COMP-FUEL
(Superseded to 51001-2254-XT)

$

$

Not available

51023

$34.99

$

In Stock, only 1 left!

0

51036

Kawasaki 51036-2071

CUP,FUEL TAP

$8.99

$

In Stock, Qty 9

0

51048

Kawasaki 51048-2080

CAP-ASSY-TANK

$17.99

$

Usually ships in 2-5 days

0

187

Kawasaki 187J0614

BOLT-UPSET-WSP
(Superseded to 187BB0616)

$1.49

$

Usually ships in 2-5 days

0

187A

Kawasaki 187J0616

BOLT-UPSET-WSP
(Superseded to 187BB0616)

$1.49

$

Usually ships in 2-5 days

0

411

Kawasaki 411F0600

WASHER-PLAIN
(Superseded to 411AB0600)

$

$

Not available

461

Kawasaki 461K0600

WASHER-SPRING
(Superseded to 461DB0600)

$0.99

$

Usually ships in 2-5 days

0

52005

Kawasaki 52005-2128

GAUGE
(Superseded to 52005-2139)

$29.99

$

In Stock, only 1 left!

0

52005A

Kawasaki 52005-2135

GAUGE
(Superseded to 52005-2139)

$29.99

$

In Stock, only 1 left!

0

52005B

Kawasaki 52005-2139

GAUGE
(Superseded to 52005-2007)

$29.99

$

In Stock, only 1 left!

0

92009

Kawasaki 92009-2021

SCREW
(Superseded to 314401-6732A)

$0.99

$

In Stock, only 3 left!

0

92009A

Kawasaki 92009-2440

SCREW,5X12
(Superseded to 92172-2064)

$0.99

$

In Stock, only 2 left!

0

92037

$1.49

$

Usually ships in 2-5 days

0

92081

$2.49

$

In Stock, only 1 left!

0

92151

Kawasaki 92151-2116

BOLT
(Superseded to 92153-2088)

$

$

Not available

92170

$1.99

$

Usually ships in 2-5 days

0

92191

Kawasaki 92191-2084

TUBE,6X10X72

$

$

Not available

92191A

Kawasaki 92191-2091

TUBE,6X10X235

$

$

Not available

130

Kawasaki 130B0818

BOLT-FLANGED
(Superseded to 130AA0818)

$1.49

$

Usually ships in 2-5 days

0

130A

Kawasaki 130G0612

BOLT-FLANGED
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0
