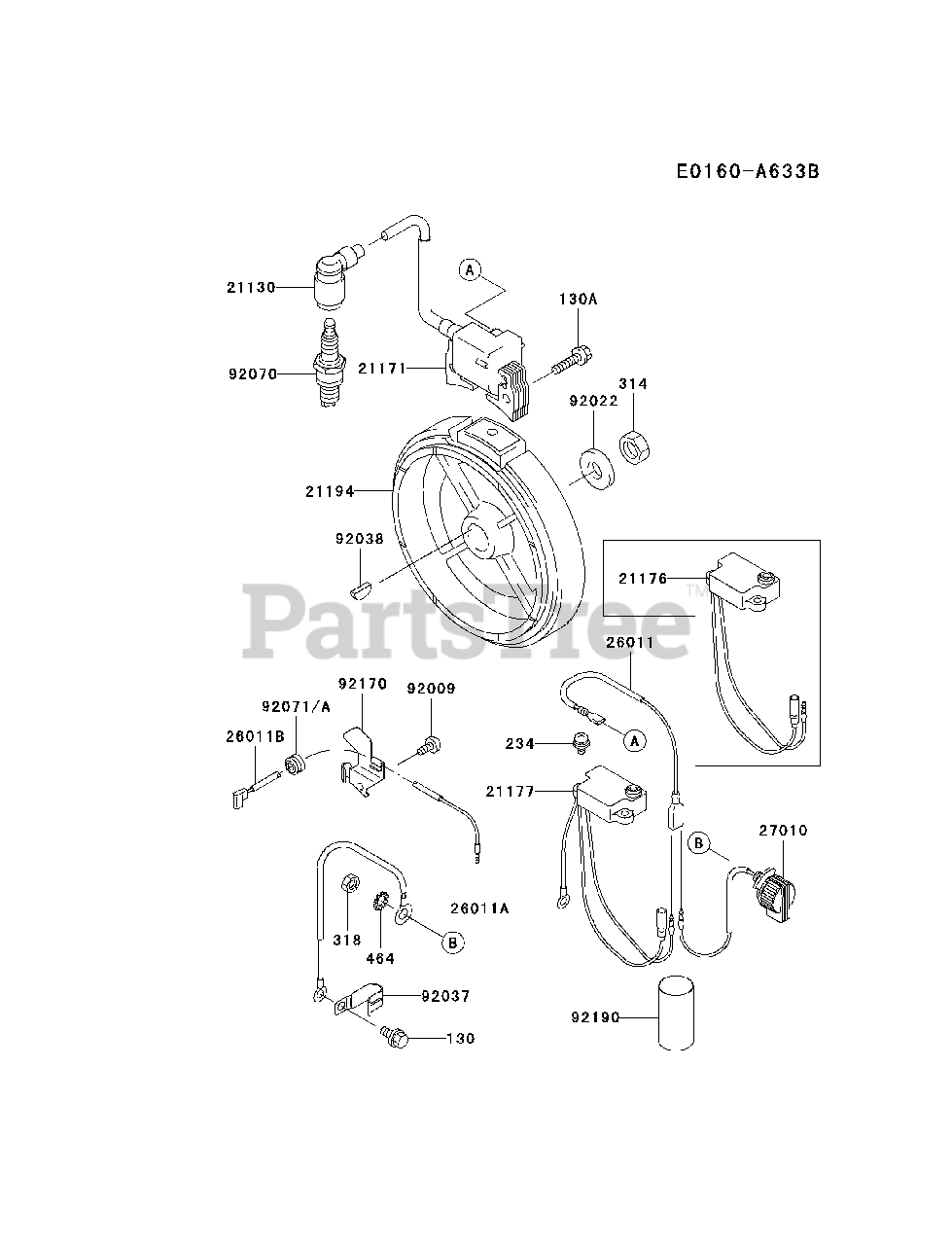

KWS 20 A (HD050A-BS00) - Kawasaki Semi Trash Pump ELECTRIC-EQUIPMENT Parts Diagram

Semi Trash Pump

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21130

Kawasaki 21130-2060

CAP-SPARK PLUG
(Superseded to M88905)

$14.99

$

In Stock, Qty 8

0

21171

Kawasaki 21171-2219

COIL-ASSY-IGNITION

$133.99

$

In Stock, only 1 left!

0

21176

Kawasaki 21176-2103

SENSOR
(Superseded to 21177-2062)

$53.99

$

Usually ships in 2-5 days

0

21177

Kawasaki 21177-2062

CONTROLLER
(Superseded to 21176-2103)

$53.99

$

Usually ships in 2-5 days

0

21194

Kawasaki 21194-2330

FLYWHEEL-COMP
(Superseded to 21194-2245)

$166.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 26011-2363

WIRE-LEAD

$

$

Not available

26011A

Kawasaki 26011-2364

WIRE-LEAD

$

$

Not available

26011B

Kawasaki 26011-2365

WIRE-LEAD

$

$

Not available

27010

Kawasaki 27010-2224

SWITCH
(Superseded to 27010-2107)

$

$

Not available

92009

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 10

0

92022

Kawasaki 92022-2102

WASHER

$13.99

$

Usually ships in 2-5 days

0

92037

Kawasaki 92037-2014

CLAMP

$

$

Not available

92038

Kawasaki 92038-2077

KEY

$2.99

$

In Stock, Qty 13

0

92070

Kawasaki 92070-2077

PLUG-SPARK,BPR5ES,SOLID
(Superseded to 4006)

Note: NGK

$3.99

$

In Stock, Qty 20+

0

92071

Kawasaki 92071-2135

GROMMET
(Superseded to 92071-2159)

$1.99

$

Usually ships in 2-5 days

0

92071A

Kawasaki 92071-2159

GROMMET

$1.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2062

CLAMP

$

$

Not available

92190

Kawasaki 92190-2052

TUBE,25X26X50

$1.49

$

In Stock, only 3 left!

0

130

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0625

BOLT-FLANGED
(Superseded to 130AA0625)

$0.99

$

In Stock, Qty 20+

0

234

Kawasaki 234C0512

SCREW-PAN-WSP+-

$

$

Not available

314

Kawasaki 314G1400

NUT-HEX-FINE
(Superseded to 314G1400A)

$1.49

$

In Stock, Qty 7

0

318

Kawasaki 318B0800

NUT-HEX-SMALL
(Superseded to 318AA0800)

$0.99

$

In Stock, only 4 left!

0

464

Kawasaki 464H0800

WASHER-TOOTHED

$0.99

$

Usually ships in 2-5 days

0
