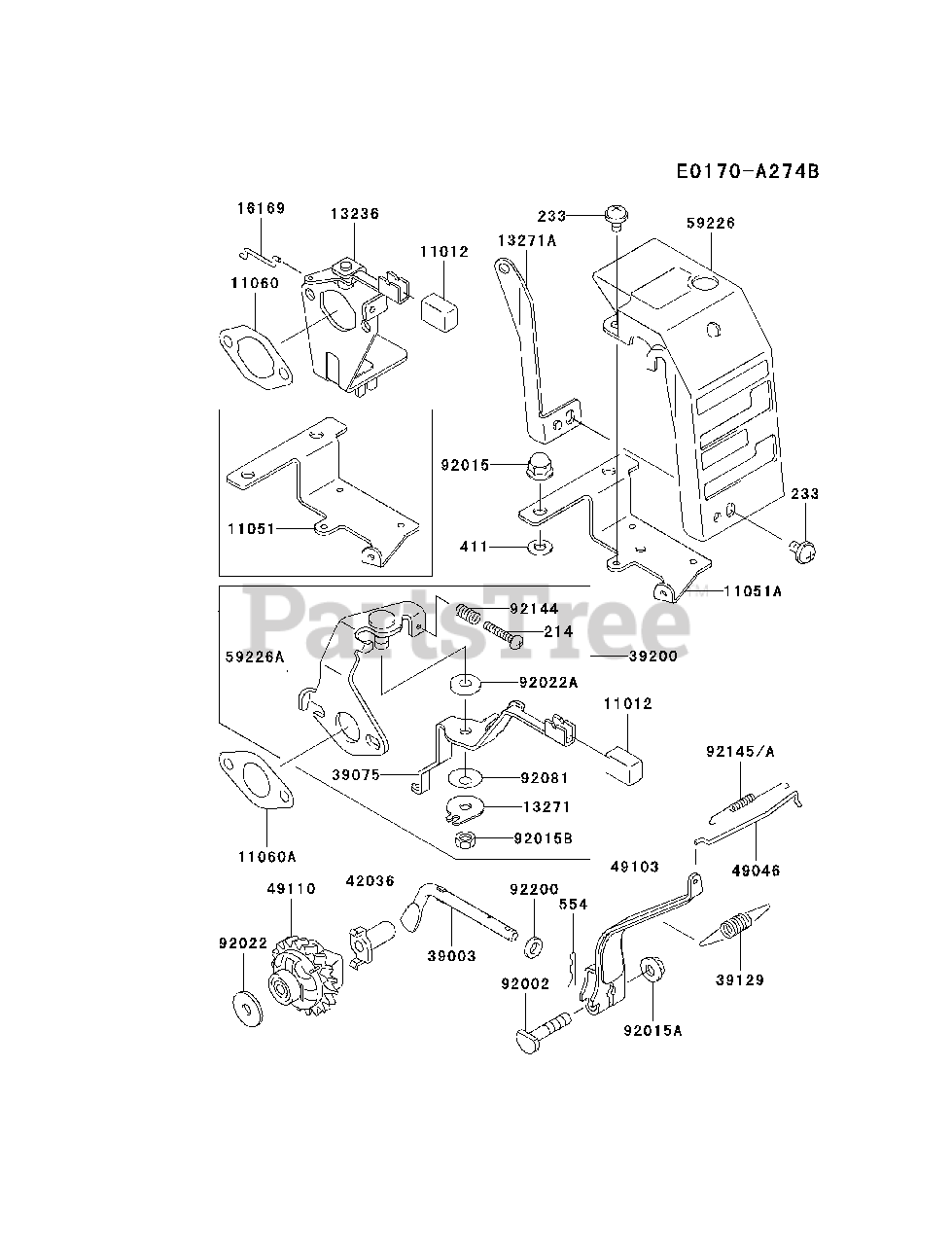

KWN 20 A (HC050A-BS00) - Kawasaki Water Pump CONTROL-EQUIPMENT Parts Diagram

Water Pump

CONTROL-EQUIPMENT Parts Diagram

  • Title

$1.99

$

In Stock, only 2 left!

0

11051

$

$

Not available

11051A

$

$

Not available

11060

Kawasaki 11060-2049

GASKET,AIR FILTER

$1.49

$

In Stock, Qty 6

0

11060A

Kawasaki 11060-2051

GASKET,CARBURETOR
(Superseded to 11009-2142)

$1.99

$

In Stock, Qty 20+

0

13236

Kawasaki 13236-2151

LEVER-COMP

$

$

Not available

13271

$

$

Not available

13271A

$

$

Not available

16169

Kawasaki 16169-2138

LINK-CHOKE

$

$

Not available

39003

$8.49

$

Usually ships in 2-5 days

0

39075

Kawasaki 39075-2158

LEVER-THROTTLE

$

$

Not available

39129

Kawasaki 39129-2086

SPRING-GOVERNOR

$

$

Not available

39200

Kawasaki 39200-2066

PANEL-ASSY-CONTROL

$

$

Not available

42036

Kawasaki 42036-2051

SLEEVE
(Superseded to 42036-2005)

$

$

Not available

49046

Kawasaki 49046-2101

ROD-GOVERNOR

$1.99

$

In Stock, only 1 left!

0

49103

Kawasaki 49103-2124

ARM-GOVERNOR

$8.49

$

Usually ships in 2-5 days

0

49110

Kawasaki 49110-2076

GOVERNOR-ASSY
(Superseded to 49110-2081)

$

$

Not available

59226

Kawasaki 59226-2324

PANEL-CONTROL

$

$

Not available

59226A

Kawasaki 59226-2325

PANEL-CONTROL

$

$

Not available

92002

$1.99

$

In Stock, Qty 6

0

92015

Kawasaki 92015-1170

NUT
(Superseded to 92210-0003)

$0.99

$

In Stock, Qty 20+

0

92015A

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92015B

Kawasaki 92015-2051

NUT
(Superseded to 920151339)

$1.99

$

In Stock, only 1 left!

0

92022

Kawasaki 92022-2019

WASHER
(Superseded to 92200-2036)

$1.49

$

In Stock, Qty 12

0

92022A

$1.99

$

In Stock, only 3 left!

0

92081

$0.99

$

In Stock, only 3 left!

0

92144

$5.49

$

Usually ships in 2-5 days

0

92145

$

$

Not available

92145A

$2.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2029

WASHER,6.5X11.5X2.0

$0.99

$

In Stock, only 2 left!

0

214

Kawasaki 214B0422

SCREW-PAN+-

$

$

Not available

233

Kawasaki 233C0508

SCREW-PAN-WP+-
(Superseded to 233F0508)

$4.99

$

Usually ships in 2-5 days

0

411

Kawasaki 411F0600

WASHER-PLAIN
(Superseded to 411AB0600)

$

$

Not available

554

Kawasaki 554A0600

PIN-SNAP
(Superseded to 554DA0600)

$1.49

$

In Stock, only 3 left!

0
