KV 960 - Husqvarna Cutting Trolley (2008-01) Wheels and Frame Tube Parts Diagram

Cutting Trolley

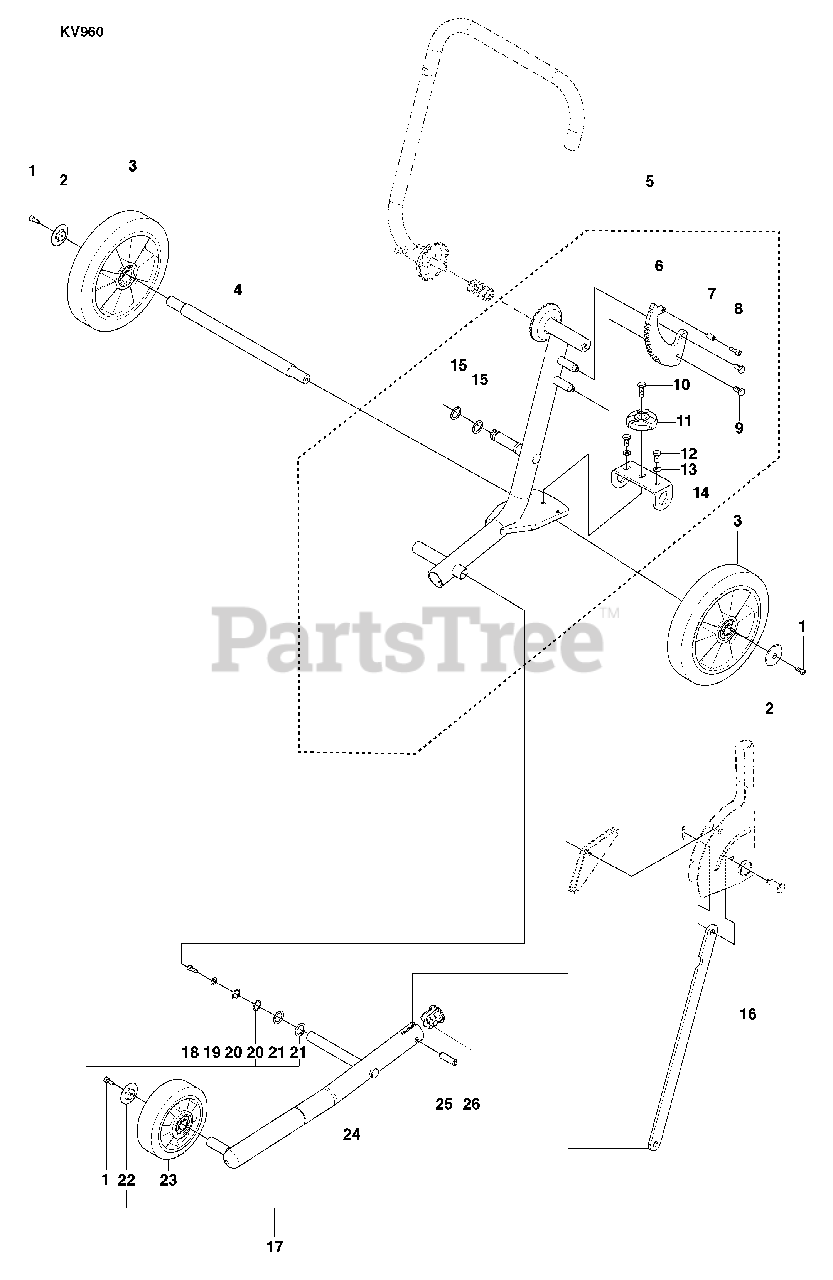

Wheels and Frame Tube Parts Diagram

  • Title

1

Husqvarna 725536801

SCREW

$4.99

$

In Stock, only 2 left!

0

2

Husqvarna 501321201

WASHER

$48.99

$

Usually ships in 3-10 days

0

3

Husqvarna 504185501

WHEEL

$

$

Not available

4

Husqvarna 544919401

SHAFT

$118.99

$

Usually ships in 3-10 days

0

5

Husqvarna 504735302

FRAME

Note: Incl. 6 - 15

$877.99

$

Usually ships in 3-10 days

0

6

Husqvarna 544919901

SHEET

$74.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544962601

SPACING SLEEVE

$25.99

$

Usually ships in 3-10 days

0

8

Husqvarna 725537001

SCREW
(Superseded to 725537055)

$10.99

$

In Stock, Qty 20+

0

9

Husqvarna 725244971

SCREW
(Superseded to 725244951)

$3.49

$

In Stock, only 2 left!

0

10

Husqvarna 505456101

SCREW

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 504569301

KNOB

$15.99

$

In Stock, only 2 left!

0

12

Husqvarna 725245171

SCREW

$1.49

$

In Stock, Qty 5

0

13

Husqvarna 734116541

WASHER

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 501321301

BRACKET

$41.99

$

Usually ships in 3-10 days

0

15

Husqvarna 502465101

O-RING

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 544923902

ROD

$54.99

$

Usually ships in 3-10 days

0

17

Husqvarna 506497002

FRAME TUBE

Note: Incl. 1, 18 - 26

$

$

Not available

18

Husqvarna 725244971

SCREW
(Superseded to 725244951)

$3.49

$

In Stock, only 2 left!

0

19

Husqvarna 504581101

WASHER

$6.49

$

In Stock, only 2 left!

0

20

Husqvarna 501019601

O-RING

$

$

Not available

21

Husqvarna 504581001

CUP SPRING

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 506497301

PLATE

$103.99

$

Usually ships in 3-10 days

0

23

Husqvarna 543045954

WHEEL

$

$

Not available

24

Husqvarna 506497501

FRAME TUBE

$

$

Not available

25

Husqvarna 501019801

SPRING PIN

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 544922701

COVER LID

$

$

Not available
