KV 750 - Husqvarna Cutting Trolley (2007-06) Holder Assy And Water Tank Parts Diagram

Cutting Trolley

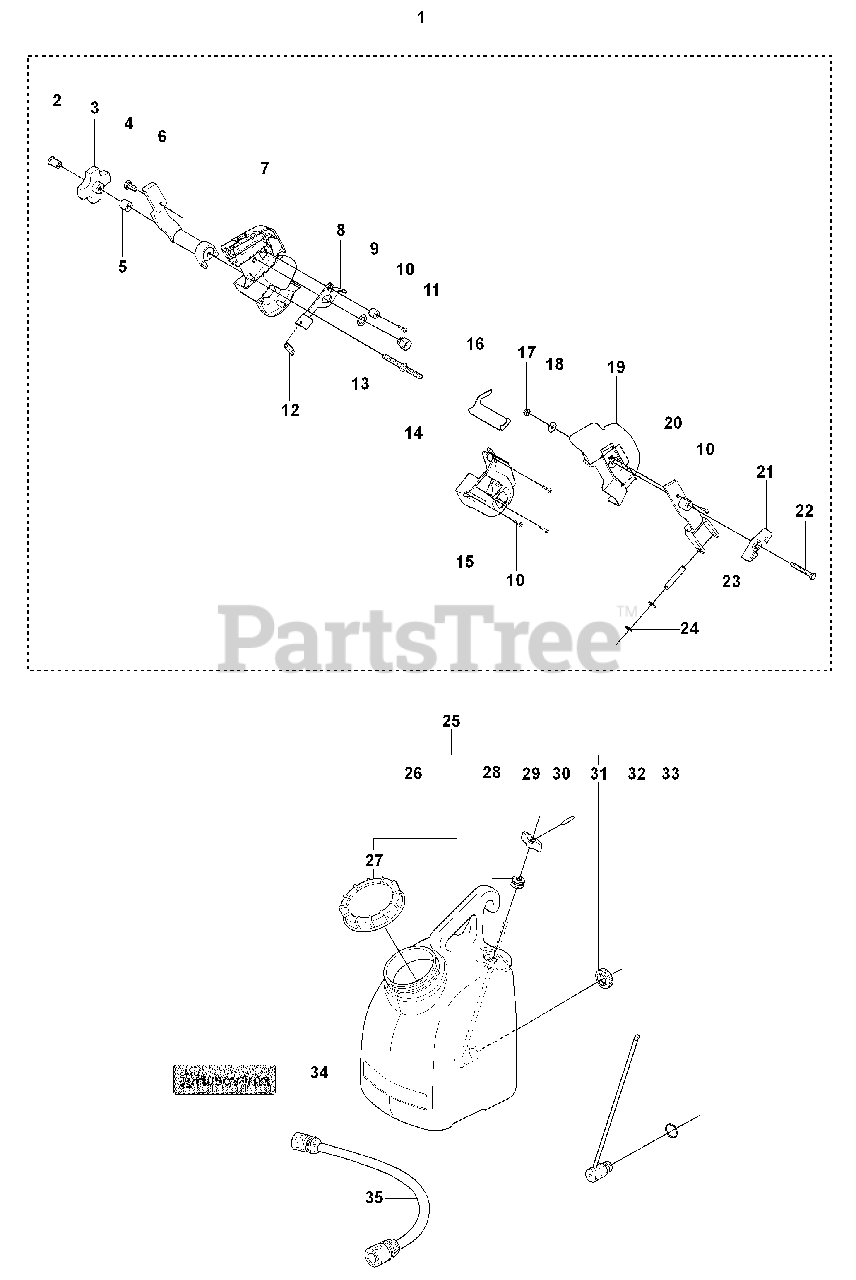

Holder Assy And Water Tank Parts Diagram

  • Title

1

Husqvarna 544957301

HOLDER ASSY

Note: Incl. 2 - 23

$

$

Not available

2

Husqvarna 544982701

NUT

$16.99

$

In Stock, only 3 left!

0

3

Husqvarna 501020001

KNOB
(Superseded to 504569301)

$16.99

$

In Stock, only 2 left!

0

4

Husqvarna 725244971

SCREW
(Superseded to 725244951)

$4.49

$

Usually ships in 3-10 days

0

5

Husqvarna 544925501

SPACING SLEEVE

$21.99

$

Usually ships in 3-10 days

0

6

Husqvarna 544957401

HOLDER

$93.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544914401

HOLDER

$49.99

$

Usually ships in 3-10 days

0

8

Husqvarna 544925701

LEVER

$150.99

$

Usually ships in 3-10 days

0

9

Husqvarna 544925801

SHAFT

$31.99

$

Usually ships in 3-10 days

0

10

Husqvarna 502465201

SCREW

$

$

Not available

11

Husqvarna 544925601

NUT

$52.99

$

Usually ships in 3-10 days

0

12

Husqvarna 544982801

SPRING

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 501018001

WASHER

$

$

Not available

14

Husqvarna 501020201

SHAFT

$24.99

$

Usually ships in 3-10 days

0

15

Husqvarna 544914701

HOLDER

$29.99

$

Usually ships in 3-10 days

0

16

Husqvarna 544925901

SHEET

$34.99

$

Usually ships in 3-10 days

0

17

Husqvarna 732251601

NUT

$3.49

$

In Stock, only 4 left!

0

18

Husqvarna 734115441

WASHER
(Superseded to 531003379)

$4.99

$

In Stock, Qty 6

0

19

Husqvarna 544914501

HOLDER

$34.99

$

Usually ships in 3-10 days

0

20

Husqvarna 544957501

HOLDER

$67.99

$

Usually ships in 3-10 days

0

21

Husqvarna 544980101

PACKING

$

$

Not available

22

Husqvarna 725238051

SCREW

$3.49

$

In Stock, only 2 left!

0

23

Husqvarna 544924701

SHAFT

$

$

Not available

24

Husqvarna 735311001

RETAINING RING

$

$

Not available

25

Husqvarna 506295512

WATER TANK

Note: Incl. 25, 27 - 33

$

$

Not available

26

Husqvarna 506308401

WATER TANK

Note: Incl. 26

$83.08

$

Usually ships in 3-10 days

0

27

Husqvarna 506308501

CAP

$28.99

$

Usually ships in 3-10 days

0

28

Husqvarna 504125017

ANTIVIBE ELEMENT

$10.99

$

In Stock, only 1 left!

0

29

Husqvarna 506309401

KNOB

$

$

Not available

30

Husqvarna 720127152

PIN

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 506309201

NUT

$

$

Not available

32

Husqvarna 506314101

VALVE

$

$

Not available

33

Husqvarna 740481204

O-RING

$5.99

$

In Stock, only 1 left!

0

34

Husqvarna 506302002

LABEL

$

$

Not available

35

Husqvarna 506314201

HOSE
(Superseded to 506314202)

$111.99

$

Usually ships in 3-10 days

0
