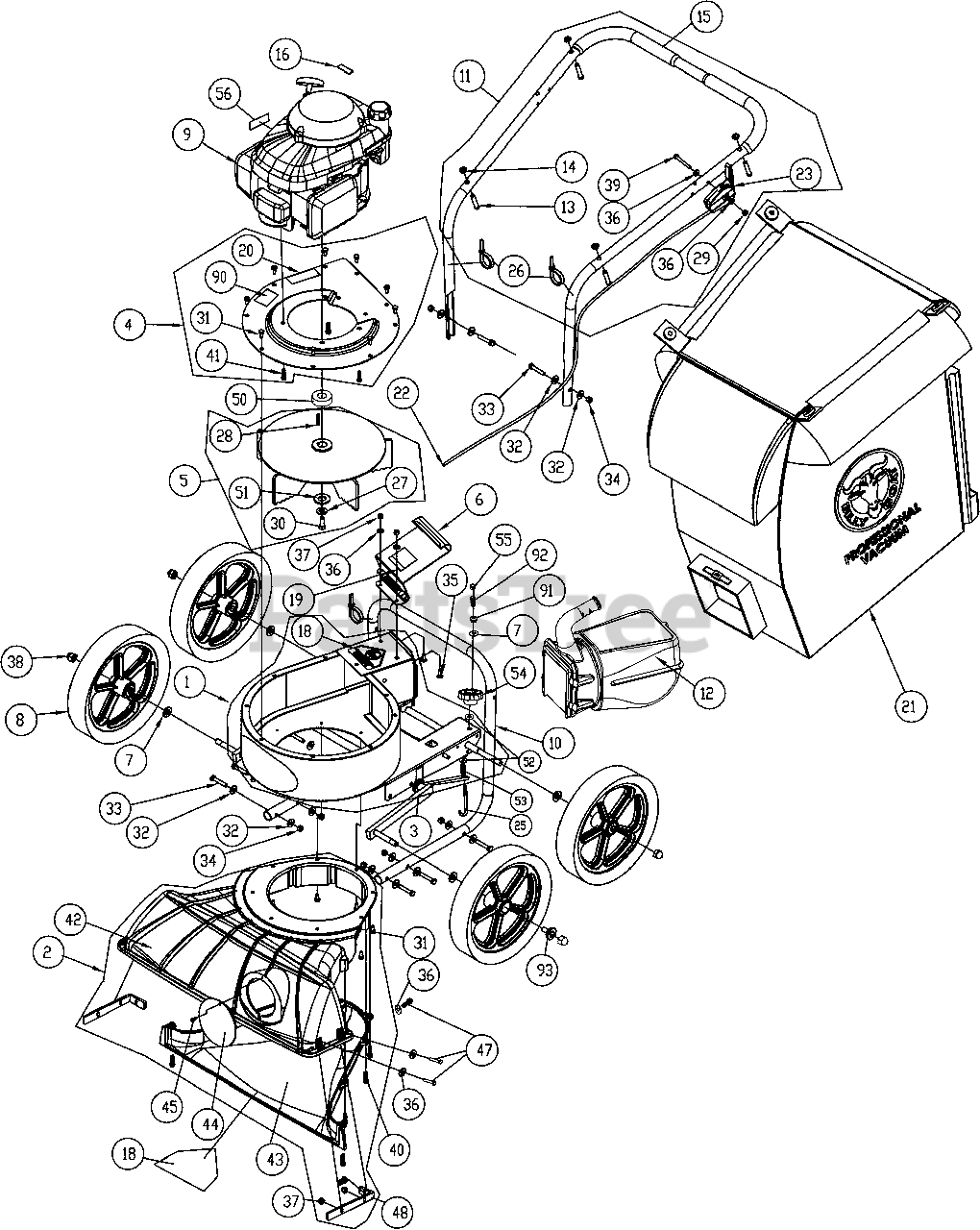

KV 650 HFB - Billy Goat Lawn & Litter Vacuum Parts Assembly Parts Diagram

Lawn & Litter Vacuum

Parts Assembly Parts Diagram

  • Title
1

Billy Goat 891100-S

MAIN FRAME HOUSING NEW KD

$362.99

$

Usually ships in 2-11 days

0

2

Billy Goat 891110-S

NOZZLE ASSEMBLY TKV

$276.99

$

Usually ships in 2-11 days

0

3

Billy Goat 891138

AXLE WA KV MICRO

$

$

Not available

4

Billy Goat 891007-1-S

PLATE TOP ENGINE KV

$93.99

$

Usually ships in 2-11 days

0

5

Billy Goat 891108-S

IMPELLER 12.75 WA PUSH VAC

$301.99

$

Usually ships in 2-11 days

0

6

Billy Goat 890148

DOOR EXHAUST ASSY RAW
(Superseded to 890148-S)

$69.99

$

Usually ships in 2-11 days

0

7

Billy Goat 8172011

WASHER 1/2" SAE Z/P

$0.99

$

In Stock, Qty 5

0

8

Billy Goat 900509

WHEEL ASSY 12" X 2.5" TREAD
(Superseded to 900509-S)

$

$

Not available

9

Billy Goat 840069

ENGINE 6.5 HP HONDA GSV190AN1L

$

$

Currently unavailable

10

Billy Goat 891050

LOWER HANDLE KV

$64.99

$

Usually ships in 2-11 days

0

11

Billy Goat 891054-S

HANDLE UPPER KV

$152.99

$

Usually ships in 2-11 days

0

12

Billy Goat 890630

QUICK DISCONNECT

$80.99

$

Usually ships in 2-11 days

0

13

Billy Goat 520120

PIN CLEVIS 3/8" x 2.125" LONG

$6.99

$

Usually ships in 2-11 days

0

14

$0.99

$

Usually ships in 2-11 days

0

15

Billy Goat 430342

GRIP HANDLE 1"X 9.5" LG

$7.99

$

Usually ships in 2-11 days

0

16

N/A

LABEL WARNING FUEL EN/SP

$

$

Not available

18

Billy Goat 400424

LABEL WARNING DANGER

$3.99

$

In Stock, only 1 left!

0

19

Billy Goat 810736

LABEL DANGER FLYING DEBRIS

$3.99

$

In Stock, only 2 left!

0

20

Billy Goat 100346

LABEL SAFETY PROTECT READ MANUAL

$3.99

$

Usually ships in 2-11 days

0

21

Billy Goat 891211

BAG FELT W/SKIRT (FB MODELS)

$268.13

$

Usually ships in 2-11 days

0

23

Billy Goat 891027

CABLE THROTTLE ASSY 42" W/CHOKE

$26.99

$

In Stock, only 1 left!

0

25

Billy Goat 891071

BOLT J 3/8-16 X 6"

$6.99

$

In Stock, only 1 left!

0

26

$0.99

$

In Stock, only 2 left!

0

27

Billy Goat 8177012

WASHER LOCK 3/8" ST MED

$0.99

$

In Stock, Qty 9

0

28

Billy Goat 9201080

KEY 3/16 SQ. X 1.25

$

$

Not available

29

Billy Goat 840071

NUT 1/4-20 ACORN

$2.99

$

In Stock, only 1 left!

0

30

Billy Goat 900344

SCREWCAP 3/8-24X1 1/2" GR. 8

$2.99

$

Usually ships in 2-11 days

0

31

Billy Goat 890359

SCREWCAP 1/4 - 20 x 5/8 HWH

$1.49

$

Usually ships in 2-11 days

0

32

Billy Goat 8171003

WASHER 5/16 FLATWASHER Z/P

$0.99

$

In Stock, Qty 10

0

33

Billy Goat 8041031

SCREWCAP 5/16-18 X 1.75 ZP

$0.99

$

In Stock, only 3 left!

0

34

Billy Goat 8160002

NUT LOCK 5/16-18

$0.99

$

In Stock, only 4 left!

0

35

Billy Goat 8041004

SCREWCAP 1/4-20 X 3/4"

$0.99

$

Usually ships in 2-11 days

0

36

Billy Goat 8172007

WASHER 1/4" SAE ZP

$0.99

$

In Stock, Qty 8

0

37

Billy Goat 8160001

NYLON INSERT LOCKNUT, 1/4-20 UNC

$0.99

$

In Stock, Qty 8

0

38

Billy Goat 890530

1/2-13 CAP NUT NP W/PATCH

$4.99

$

In Stock, only 3 left!

0

39

Billy Goat 8041010

SCREWCAP 1/4-20x2" HCS ZP

$0.99

$

In Stock, Qty 7

0

40

Billy Goat 891039

SCREW PLASTIC 1/4-10 X 1

$1.49

$

Usually ships in 2-11 days

0

41

Billy Goat 890408

SCREW 3/8 x 1 1/2 TAPTITE

$3.49

$

Usually ships in 2-11 days

0

42

Billy Goat 891002

NOZZLE TOP HALF KV

$124.99

$

Usually ships in 2-11 days

0

43

Billy Goat 891003

NOZZLE BOTTOM HALF KV

$73.99

$

Usually ships in 2-11 days

0

44

Billy Goat 900146-01

PLUG HOUSING KD LB

$7.49

$

Usually ships in 2-11 days

0

45

Billy Goat 891043

SCREW SELF TAPPING 10-24 X 1/2

$0.99

$

In Stock, only 2 left!

0

46

Billy Goat 891045

LABEL KV PUSH

$

$

Not available

47

Billy Goat 8041006

SCREWCAP 1/4-20 X 1"

$0.99

$

Usually ships in 2-11 days

0

48

Billy Goat 891208

BRACKET NOZZLE KV

$9.99

$

In Stock, only 1 left!

0

50

Billy Goat 890616

SPACER 1.5 OD X .875 ID X .975 THK

$

$

Not available

51

Billy Goat 440153

WASHER 1.5 OD X .453 ID X .25 THK

$2.99

$

Usually ships in 2-11 days

0

52

Billy Goat 8171006

WASHER 1/2" FC

$0.99

$

In Stock, Qty 5

0

53

Billy Goat 891072

SPRING COMPRESSION

$3.49

$

In Stock, only 1 left!

0

54

Billy Goat 891070

KNOB 3/8-16 RED

$11.99

$

In Stock, only 1 left!

0

55

Billy Goat 8161042

NUT LOCK 3/8-16 THIN

$0.99

$

In Stock, Qty 6

0

56

Billy Goat 100252

LABEL SPARK ARRESTOR EN/SP
(Superseded to 100256)

$2.99

$

In Stock, Qty 5

0

90

Billy Goat 520116

LABEL MADE IN U.S.A.

$

$

Not available

91

Billy Goat 830176

GROMMET FLANGE 1/2" MOLDED

$1.49

$

In Stock, only 3 left!

0

92

Billy Goat 400332

SPRING COMPRESSION

$1.99

$

In Stock, only 4 left!

0

93

Billy Goat 900774

BEARING BALL FLANGED

$8.99

$

In Stock, only 1 left!

0
