KV 601 SPFB - Billy Goat Lawn & Litter Vacuum PARTS ASSEMBLY Parts Diagram

Lawn & Litter Vacuum

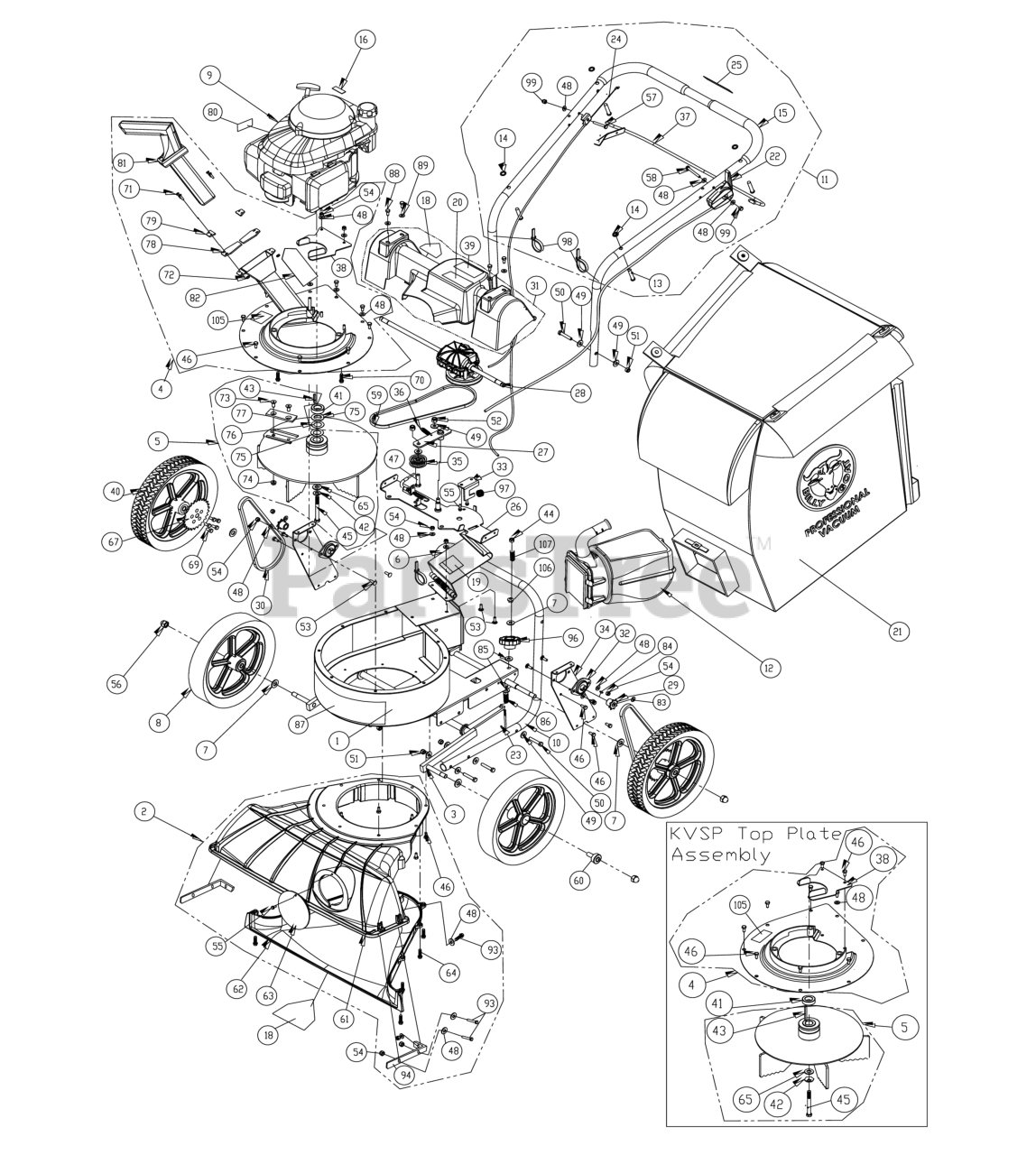

PARTS ASSEMBLY Parts Diagram

  • Title

1

Billy Goat 891100-S

HOUSING WA KV

$362.99

$

Usually ships in 2-11 days

0

2

Billy Goat 891110-S

NOZZLE MAINFRAME ASSY KV SERVICE

$276.99

$

Usually ships in 2-11 days

0

3

Billy Goat 891165

WA AXLE FRONT KV 2.0

$

$

Currently unavailable

4

Billy Goat 891101-S

PLATE TOP WA KVSP SERVICE

$181.99

$

Usually ships in 2-11 days

0

5

Billy Goat 891104-S

IMPELLER 14.25 WA SP VAC SERVICE

$354.99

$

Usually ships in 2-11 days

0

6

Billy Goat 890148-01

SEE: 890148
(Superseded to 890148-S)

$69.99

$

Usually ships in 2-11 days

0

7

Billy Goat 8172011

WASHER 1/2" SAE Z/P

$0.99

$

In Stock, Qty 6

0

8

Billy Goat 900509

SEE: 900509-S
(Superseded to 900509-S)

$

$

Not available

9

Billy Goat 891218

ENGINE B&S PRO SERIES 875

$

$

Currently unavailable

10

Billy Goat 891050

HANDLE LOWER KV VAC

$64.99

$

Usually ships in 2-11 days

0

11

Billy Goat 891054-S

HANDLE UPPER KV SERVICE

$152.99

$

Usually ships in 2-11 days

0

12

Billy Goat 890630

QUICK DISCONNECT II

$80.99

$

Usually ships in 2-11 days

0

13

Billy Goat 520120

PIN CLEVIS 3/8 X 2.125

$6.99

$

Usually ships in 2-11 days

0

14

Billy Goat 360279

RETAINER 3/8" BOLT PUSH NUT

$0.99

$

Usually ships in 2-11 days

0

15

Billy Goat 430342

GRIP HANDLE 1"

$7.99

$

Usually ships in 2-11 days

0

16

Billy Goat 100261

LABEL HOT ENGINE

$3.99

$

Usually ships in 2-11 days

0

18

Billy Goat 400424

LABEL WARNING OPEI

$3.99

$

In Stock, only 1 left!

0

19

Billy Goat 810736

LABEL DANGER FLYING DEBRIS

$3.99

$

In Stock, only 2 left!

0

20

Billy Goat 100346

LABEL SAFETY PROTECT READ MANUAL

$3.99

$

Usually ships in 2-11 days

0

21

Billy Goat 891132

STANDARD BAG KV/TKV (SEE ACCESSORY PRICELIST)

$287.99

$

Usually ships in 2-11 days

0

Billy Goat 891211

KIT BAG KV FELT W/REAR ZIPPER/DUST SKIRT (SEE ACCESSORY PRICELIST)

$268.13

$

Usually ships in 2-11 days

0

22

Billy Goat 891036

CABLE THROTTLE 42"

$26.99

$

In Stock, only 1 left!

0

23

Billy Goat 891071

BOLT J 3/8"-16 X 6" ZP

$6.99

$

Usually ships in 2-11 days

0

24

Billy Goat 891032

CABLE CLUTCH 40"

$37.99

$

In Stock, only 1 left!

0

25

Billy Goat 900328

LABEL CLUTCH

$3.99

$

Usually ships in 2-11 days

0

26

Billy Goat 891106

BRACKET TRANS MOUNT WA

$45.99

$

Usually ships in 2-11 days

0

27

Billy Goat 891105

ARM IDLER WA KV

$73.99

$

Usually ships in 2-11 days

0

28

Billy Goat 891020

SEE: 891020-S
(Superseded to 891020-S)

$192.99

$

In Stock, only 1 left!

0

29

Billy Goat 891022

SPROCKET 8 TOOTH 41B8

$15.99

$

In Stock, only 1 left!

0

30

Billy Goat 891023

CHAIN #43 X 58 PITCHES

$10.99

$

Usually ships in 2-11 days

0

31

Billy Goat 891004-S

GUARD DRIVE

$268.99

$

Usually ships in 2-11 days

0

32

Billy Goat 891025

SEE: 891025-S
(Superseded to 891025-S)

$76.99

$

Usually ships in 2-11 days

0

33

Billy Goat 891012

BRACKET TRANS FIX KV

$31.99

$

Usually ships in 2-11 days

0

34

Billy Goat 891014

BRACKET CHAIN REINFORCE

$31.99

$

Usually ships in 2-11 days

0

35

Billy Goat 840087

PULLEY IDLER 2"OD X 3/8" ID

$20.99

$

Usually ships in 2-11 days

0

36

Billy Goat 800242

SPRING EXTENSION

$4.49

$

Usually ships in 2-11 days

0

37

Billy Goat 891102

BAIL CLUTCH KV

$34.99

$

Usually ships in 2-11 days

0

38

Billy Goat 891028

BRACKET IDLER BELT FINGER KV

$16.99

$

Usually ships in 2-11 days

0

39

Billy Goat 900327

LABEL DANGER

$3.99

$

In Stock, only 3 left!

0

40

Billy Goat 890242

SEE: 890242-S
(Superseded to 890242-S)

$231.99

$

Usually ships in 2-11 days

0

42

Billy Goat 8177012

WASHER LOCK 3/8" S/T MED

$0.99

$

In Stock, Qty 9

0

43

Billy Goat 9201087

KEY 3/16" SQ X 2 1/8"

$2.99

$

Usually ships in 2-11 days

0

44

Billy Goat 8161042

NUT LOCK 3/8-16 LT WT THIN ZP

$0.99

$

In Stock, Qty 9

0

45

Billy Goat 440151

SCREWCAP 3/8"-24 X 3 1/2" GR.8 W/ PATCH

$3.49

$

In Stock, only 1 left!

0

46

Billy Goat 890359

SCREW SELF TAP 1/4"-20 X 5/8" HWH TYPE F

$1.49

$

In Stock, only 3 left!

0

47

Billy Goat 800888

BOLT IDLER 3/8"-16X1 3/4"

$9.99

$

Usually ships in 2-11 days

0

48

Billy Goat 8172007

WASHER 1/4"SAE9/32"X5/8"X1/16"

$0.99

$

In Stock, Qty 11

0

49

Billy Goat 8171003

WASHER 5/16" FLATWASHER Z/P

$0.99

$

In Stock, only 2 left!

0

50

Billy Goat 8041031

SCREWCAP 5/16"-18X1 3/4" HCS ZP

$0.99

$

In Stock, only 3 left!

0

51

Billy Goat 8160002

NUT LOCK 5/16"-18 HEX Z/P

$0.99

$

In Stock, Qty 5

0

52

Billy Goat 8160003

NUT LOCK 3/8"-16 HEX

$0.99

$

In Stock, Qty 5

0

53

Billy Goat 8041004

SCREWCAP 1/4"-20X3/4" HCS ZP

$0.99

$

In Stock, Qty 20+

0

54

Billy Goat 8160001

NUT LOCK 1/4"-20 HEX Z/P

$0.99

$

In Stock, Qty 9

0

55

Billy Goat 891043

SCREW PLASTITE X 3/4 HWH ZP

$0.99

$

In Stock, only 2 left!

0

56

Billy Goat 890530

NUT 1/2"-13 CAP NP W/PATCH

$4.99

$

In Stock, only 3 left!

0

57

Billy Goat 8041009

SCREWCAP 1/4"-20X1 3/4" HCS ZP

$0.99

$

In Stock, only 2 left!

0

58

Billy Goat 8041010

SCREWCAP 1/4"-20X2" HCS ZP

$0.99

$

In Stock, Qty 7

0

59

Billy Goat 891026

BELT 3L310

$31.99

$

In Stock, only 1 left!

0

60

Billy Goat 900774

BEARING BALL FLANGED

$8.99

$

In Stock, only 3 left!

0

61

Billy Goat 891002

NOZZLE TOP HALF KV

$124.99

$

Usually ships in 2-11 days

0

62

Billy Goat 891003

NOZZLE BOTTOM HALF KV

$73.99

$

Usually ships in 2-11 days

0

63

Billy Goat 900146-01

PLUG HOUSING PLAIN GREEN

$7.49

$

In Stock, only 1 left!

0

64

Billy Goat 891039

SCREW PLASTITE 1/4-10 X 1 HWH ZP

$1.49

$

Usually ships in 2-11 days

0

65

Billy Goat 440153

WASHER 1.5 OD X .453 ID X .25 THK

$2.99

$

Usually ships in 2-11 days

0

67

Billy Goat 890238

SPROCKET 65A26 26 TOOTH

$16.99

$

In Stock, only 2 left!

0

69

Billy Goat 900505

SCREW SELFTAP 1/4"-14X3/4" TYP B

$1.49

$

Usually ships in 2-11 days

0

70

Billy Goat 900564

SCREWCAP 3/8"-16X2 1/2" TAPTITE

$6.49

$

Usually ships in 2-11 days

0

83

Billy Goat 350146

RING RETAINING 1/2"

$0.99

$

In Stock, only 2 left!

0

84

Billy Goat 510180

KEY WOODRUFF 1/8" X 1/2"

$1.49

$

In Stock, Qty 9

0

85

Billy Goat 8171006

WASHER 1/2"FC9/16"X1 3/8"X7/64"

$0.99

$

In Stock, Qty 7

0

86

Billy Goat 891072

SPRING COMPRESSION 1/2 X 4.31

$3.49

$

Usually ships in 2-11 days

0

87

Billy Goat 891214

LABEL BADGING KV

$7.49

$

Usually ships in 2-11 days

0

88

Billy Goat 510208

SCREW SM 1/4" X 3/4" DRILL PT. BLACK

$1.49

$

Usually ships in 2-11 days

0

89

Billy Goat 510193

WASHER 1/4"SAE BLACK OXIDE

$0.99

$

Usually ships in 2-11 days

0

92

Billy Goat 8024021

BOLT CARRIAGE 1/4" X 3/4"

$0.99

$

Usually ships in 2-11 days

0

93

Billy Goat 8041006

SCREWCAP 1/4"-20 X 1" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

94

Billy Goat 891208

BRACKET NOZZLE ASSY KV

$9.99

$

In Stock, only 1 left!

0

96

Billy Goat 891070

KNOB 3/8-18 RED PRINTED

$11.99

$

Usually ships in 2-11 days

0

97

Billy Goat 610429

SPRING LEVER GZ

$20.99

$

Usually ships in 2-11 days

0

98

Billy Goat 900407

TY WRAP

$0.99

$

In Stock, only 2 left!

0

99

Billy Goat 840071

NUT ACORN 1/4-20 HIGH CROWN

$2.99

$

In Stock, only 1 left!

0

105

Billy Goat 520116

NO LONGER AVAILABLE

$

$

Not available

106

Billy Goat 830176

GROMMET FLANGE 1/2" MOLDED

$1.49

$

In Stock, only 4 left!

0

107

Billy Goat 400332

SPRING COMPRESSION

$1.99

$

In Stock, only 2 left!

0
