KV 601 - Billy Goat Lawn & Litter Vacuum General Assembly Parts Diagram

Lawn & Litter Vacuum

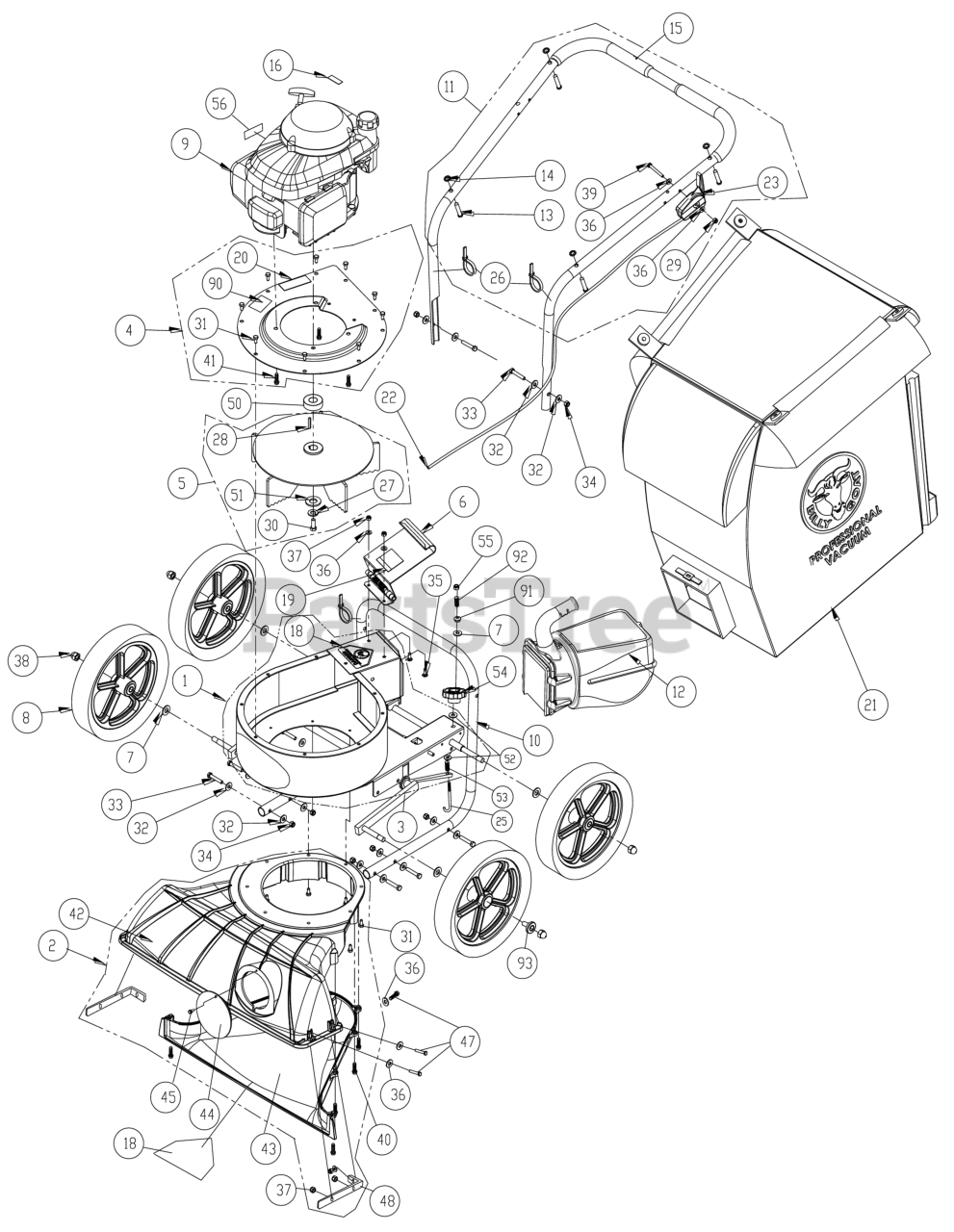

General Assembly Parts Diagram

  • Title

1

Billy Goat 891100-S

HOUSING WA KV

$362.99

$

Usually ships in 2-11 days

0

2

Billy Goat 891110-S

NOZZLE MAINFRAME ASSY KV SERVICE

$276.99

$

Usually ships in 2-11 days

0

3

Billy Goat 891165

WA AXLE FRONT KV 2.0

$

$

Currently unavailable

4

Billy Goat 891007-1-S

PLATE TOP WA PUSH SERVICE

$93.99

$

Usually ships in 2-11 days

0

5

Billy Goat 891108-S

IMPELLER 14.25 WA PUSH SERVICE

$301.99

$

Usually ships in 2-11 days

0

6

Billy Goat 890148

SEE: 890148-S
(Superseded to 890148-S)

$69.99

$

Usually ships in 2-11 days

0

7

Billy Goat 8172011

WASHER 1/2" SAE Z/P

$0.99

$

In Stock, Qty 6

0

8

Billy Goat 900509-S

WHEEL ASSY MAG

$

$

Not available

9

Billy Goat 891218

ENGINE B&S PRO SERIES 875

$

$

Currently unavailable

10

Billy Goat 891050

HANDLE LOWER KV VAC

$64.99

$

Usually ships in 2-11 days

0

11

Billy Goat 891054-S

HANDLE UPPER KV SERVICE

$152.99

$

Usually ships in 2-11 days

0

12

Billy Goat 890630

QUICK DISCONNECT II

$80.99

$

Usually ships in 2-11 days

0

13

Billy Goat 520120

PIN CLEVIS 3/8 X 2.125

$6.99

$

Usually ships in 2-11 days

0

14

Billy Goat 360279

RETAINER 3/8" BOLT PUSH NUT

$0.99

$

Usually ships in 2-11 days

0

15

Billy Goat 430342

GRIP HANDLE 1"

$7.99

$

Usually ships in 2-11 days

0

16

Billy Goat 100261

LABEL HOT ENGINE

$3.99

$

Usually ships in 2-11 days

0

18

Billy Goat 400424

LABEL WARNING OPEI

$3.99

$

In Stock, only 1 left!

0

19

Billy Goat 810736

LABEL DANGER FLYING DEBRIS

$3.99

$

In Stock, only 2 left!

0

20

Billy Goat 100346

LABEL SAFETY PROTECT READ MANUAL

$3.99

$

Usually ships in 2-11 days

0

21

Billy Goat 891132

STANDARD BAG KV/TKV (SEE ACCESSORY PRICELIST)

$287.99

$

Usually ships in 2-11 days

0

Billy Goat 891211

KIT BAG KV FELT W/REAR ZIPPER/DUST SKIRT (SEE ACCESSORY PRICELIST)

$268.13

$

Usually ships in 2-11 days

0

23

Billy Goat 891036

CABLE THROTTLE 42"

$26.99

$

In Stock, only 1 left!

0

25

Billy Goat 891071

BOLT J 3/8"-16 X 6" ZP

$6.99

$

Usually ships in 2-11 days

0

26

Billy Goat 900407

TY WRAP

$0.99

$

In Stock, only 2 left!

0

27

Billy Goat 8177012

WASHER LOCK 3/8" S/T MED

$0.99

$

In Stock, Qty 9

0

28

Billy Goat 9201080

KEY 3/16" SQ X 1 1/4"

$

$

Not available

29

Billy Goat 840071

NUT ACORN 1/4-20 HIGH CROWN

$2.99

$

In Stock, only 1 left!

0

30

Billy Goat 900154

SCREWCAP 3/8"-24 X 1" HCS GR 8

$2.49

$

Usually ships in 2-11 days

0

31

Billy Goat 890359

SCREW SELF TAP 1/4"-20 X 5/8" HWH TYPE F

$1.49

$

In Stock, only 3 left!

0

32

Billy Goat 8171003

WASHER 5/16" FLATWASHER Z/P

$0.99

$

In Stock, only 2 left!

0

33

Billy Goat 8041031

SCREWCAP 5/16"-18X1 3/4" HCS ZP

$0.99

$

In Stock, only 3 left!

0

34

Billy Goat 8160002

NUT LOCK 5/16"-18 HEX Z/P

$0.99

$

In Stock, Qty 5

0

35

Billy Goat 8041004

SCREWCAP 1/4"-20X3/4" HCS ZP

$0.99

$

In Stock, Qty 20+

0

36

Billy Goat 8172007

WASHER 1/4"SAE9/32"X5/8"X1/16"

$0.99

$

In Stock, Qty 11

0

37

Billy Goat 8160001

NUT LOCK 1/4"-20 HEX Z/P

$0.99

$

In Stock, Qty 9

0

38

Billy Goat 890530

NUT 1/2"-13 CAP NP W/PATCH

$4.99

$

In Stock, only 3 left!

0

39

Billy Goat 8041010

SCREWCAP 1/4"-20X2" HCS ZP

$0.99

$

In Stock, Qty 7

0

40

Billy Goat 891039

SCREW PLASTITE 1/4-10 X 1 HWH ZP

$1.49

$

Usually ships in 2-11 days

0

41

Billy Goat 890408

SCREW 3/8" X 1 1/2" TCS

$3.49

$

Usually ships in 2-11 days

0

42

Billy Goat 891002

NOZZLE TOP HALF KV

$124.99

$

Usually ships in 2-11 days

0

43

Billy Goat 891003

NOZZLE BOTTOM HALF KV

$73.99

$

Usually ships in 2-11 days

0

44

Billy Goat 900146-01

PLUG HOUSING PLAIN GREEN

$7.49

$

In Stock, only 1 left!

0

45

Billy Goat 891043

SCREW PLASTITE X 3/4 HWH ZP

$0.99

$

In Stock, only 2 left!

0

46

Billy Goat 891045

NO LONGER AVAILABLE

$

$

Not available

47

Billy Goat 8041006

SCREWCAP 1/4"-20 X 1" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

48

Billy Goat 891208

BRACKET NOZZLE ASSY KV

$9.99

$

In Stock, only 1 left!

0

51

Billy Goat 440153

WASHER 1.5 OD X .453 ID X .25 THK

$2.99

$

Usually ships in 2-11 days

0

52

Billy Goat 8171006

WASHER 1/2"FC9/16"X1 3/8"X7/64"

$0.99

$

In Stock, Qty 7

0

53

Billy Goat 891072

SPRING COMPRESSION 1/2 X 4.31

$3.49

$

Usually ships in 2-11 days

0

54

Billy Goat 891070

KNOB 3/8-18 RED PRINTED

$11.99

$

Usually ships in 2-11 days

0

55

Billy Goat 8161042

NUT LOCK 3/8-16 LT WT THIN ZP

$0.99

$

In Stock, Qty 9

0

90

Billy Goat 520116

NO LONGER AVAILABLE

$

$

Not available

91

Billy Goat 830176

GROMMET FLANGE 1/2" MOLDED

$1.49

$

In Stock, only 4 left!

0

92

Billy Goat 400332

SPRING COMPRESSION

$1.99

$

In Stock, only 2 left!

0

93

Billy Goat 900774

BEARING BALL FLANGED

$8.99

$

In Stock, only 3 left!

0
