KV 03 - Husqvarna Cutting Trolley (2007-01) Mounting kit K950 Parts Diagram

Cutting Trolley

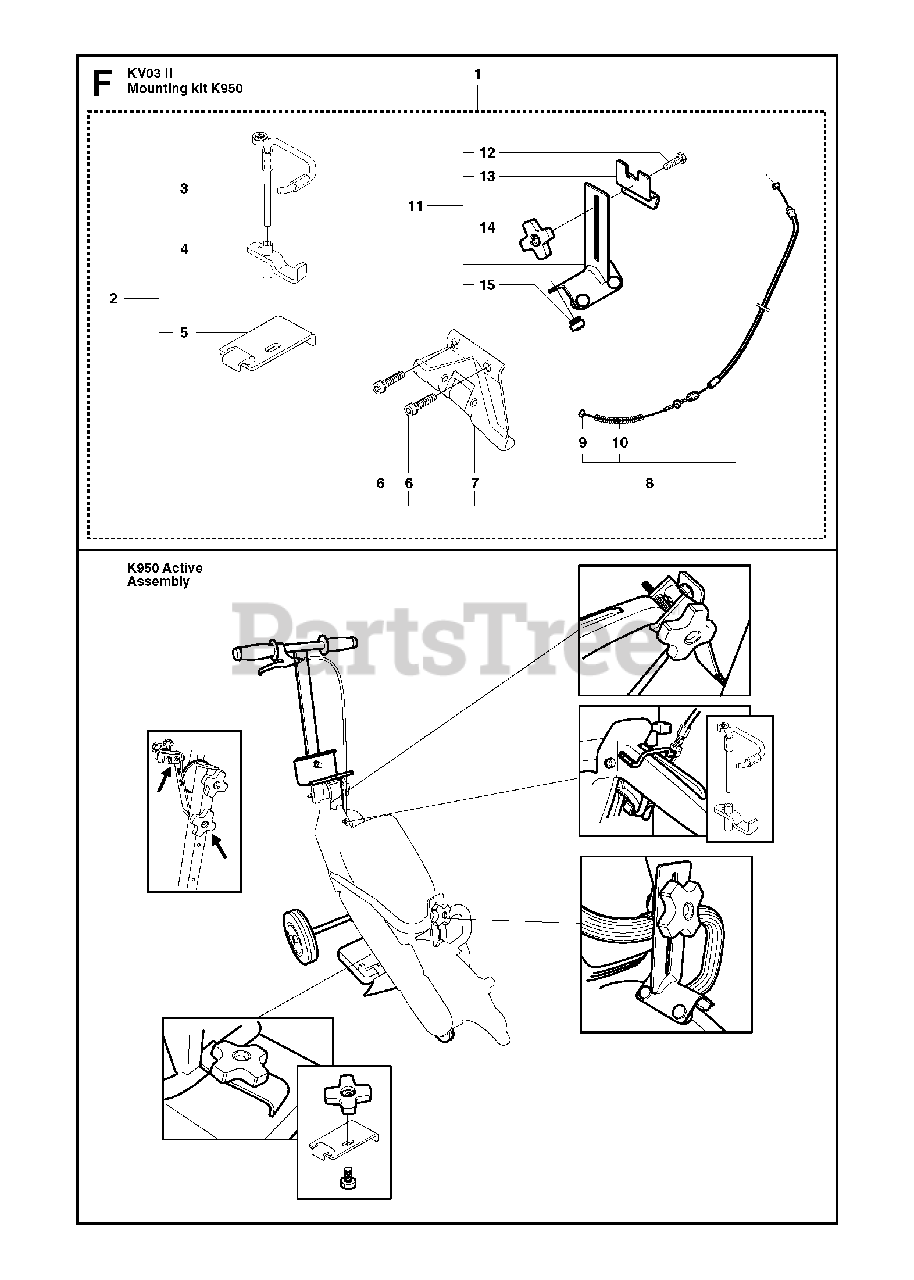

Mounting kit K950 Parts Diagram

  • Title

1

Husqvarna Construction 504 11 17-03

ASSEMBLY KITIncl. 2, 11

$

$

Not available

2

Husqvarna Construction 506 36 57-01

CUTTING TROLLEYIncl. 3 - 8

$

$

Not available

3

Husqvarna Construction 506 36 06-01

CLAMP

$16.33

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 506 36 07-01

LEVER

$11.67

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 506 30 77-01

PRESSURE PLATE

$22.12

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 503 21 05-45

SCREW IHSCT

$

$

Not available

7

Husqvarna Construction 506 29 45-01

GROUND SUPPORT"12"" Tools is needed (not included)"

$23.33

$

Usually ships in 3-10 days

0

8

Husqvarna 506 36 16-01

THROTTLE WIREIncl. 9, 10

$62.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 506 10 88-01

CABLE RETAINER

$13.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 506 20 55-02

COMPRESSION SPRING

$2.49

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 506 30 66-01

RETAINERIncl. 12 - 15

$101.99

$

Usually ships in 3-10 days

0

12

Husqvarna 725 24 51-51

SCREW

$5.99

$

In Stock, only 4 left!

0

13

Husqvarna Construction 506 30 70-01

CLAMP

$21.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506 31 95-01

STEERING WHEEL

$9.22

$

Usually ships in 3-10 days

0

15

Husqvarna 503 47 16-01

BUFFER

$7.99

$

In Stock, only 1 left!

0
