KT745-3100 - Kohler 7000 Series Engine, Made for MTD, 26hp, 19.4kW KT745-3100 CylinderHead & Breather Parts Diagram

7000 Series Engine, Made for MTD, 26hp, 19.4kW

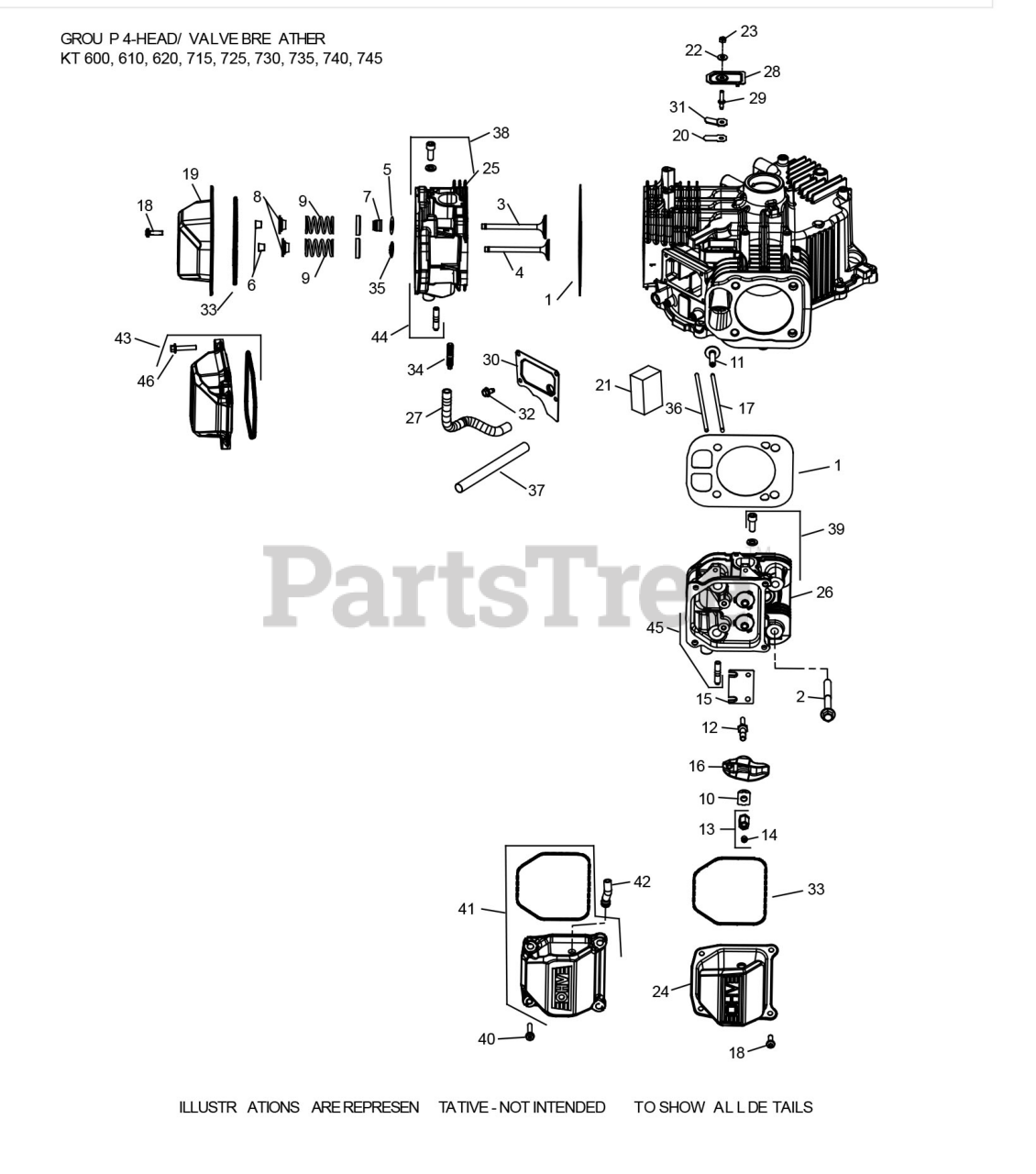

KT745-3100 CylinderHead & Breather Parts Diagram

  • Title

1

Cub Cadet KH-32-841-02-S

GASKET KIT-CYL HEA

$19.99

$

In Stock, Qty 20+

0

3

Cub Cadet KH-32-017-01-S

INTAKE VALVE

$8.49

$

In Stock, only 1 left!

0

3

Cub Cadet KH-32-017-02-S

INTAKE VALVE .25
(Superseded to KH-24-017-02)

Note: This part is NLA from us, Contact Kohler

$

$

Not available

4

Cub Cadet KH-32-016-01-S

EXHAUST VALVE

$15.99

$

In Stock, Qty 14

0

4

Cub Cadet KH-32-016-02-S

EXHAUST VALVE .25

$15.99

$

In Stock, only 3 left!

0

5

Cub Cadet KH-275067

SPACER

$

$

Not available

6

Cub Cadet KH-12-755-03

KIT-RETAINER

$5.99

$

In Stock, Qty 8

0

7

Cub Cadet KH-25-032-14-S

VALVE STEM SEAL

$11.99

$

In Stock, Qty 20+

0

8

Cub Cadet KH-25-173-28-S

VALVE CAP SPRING

$8.49

$

In Stock, only 3 left!

0

9

Cub Cadet KH-25-089-17-S

VALVE SPRING

$2.49

$

In Stock, only 3 left!

0

10

Cub Cadet KH-25-599-01-S

PIVOT- ROCKER ARM

$2.99

$

In Stock, only 2 left!

0

11

Cub Cadet KH-32-019-02-S

TAPPET-PUSH ROD

$13.99

$

In Stock, only 3 left!

0

12

Cub Cadet KH-32-072-04-S

STUD- ROCKER

$4.99

$

In Stock, only 3 left!

0

13

Cub Cadet KH-32-100-05-S

NUT ASSEMBLY-ROCKER

$3.99

$

In Stock, Qty 7

0

14

Cub Cadet KH-25-086-168-S

SCREW-SET

$4.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-32-146-09-S

PLATE-GUIDE

$2.99

$

In Stock, only 3 left!

0

16

Cub Cadet KH-32-186-03-S

ARM- ROCKER

$6.49

$

In Stock, only 1 left!

0

17

Cub Cadet KH-32-411-04-S

ROD- PUSH

$4.99

$

In Stock, only 3 left!

0

20

Cub Cadet KH-12-402-02

BREATHER REED

$

$

Not available

21

Cub Cadet KH-32-050-06-S

BREATHER FILTER

$2.99

$

In Stock, only 1 left!

0

22

Cub Cadet KH-32-468-01-S

SEALING WASHER

$2.99

$

In Stock, only 1 left!

0

23

Cub Cadet KH-M-547050-S

HEX LOCK NUT

$2.49

$

In Stock, only 1 left!

0

27

Cub Cadet KH-25-326-62-S

BREATHER HOSE

$12.99

$

In Stock, only 1 left!

0

28

Cub Cadet KH-32-096-16-S

COVER-BREATHER REED

$2.99

$

Usually ships in 2-5 days

0

29

Cub Cadet KH-32-072-05-S

STUD-BRETHR REED C

$2.49

$

Usually ships in 2-5 days

0

30

Cub Cadet KH-16-096-02-S

COVER-BREATHER FILTE

$2.99

$

Usually ships in 2-5 days

0

31

Cub Cadet KH-66-018-04-S

RETAINER-BREATHER

$4.99

$

In Stock, only 4 left!

0

32

Cub Cadet KH-25-086-400-S

SCREW

$2.49

$

In Stock, only 2 left!

0

33

Cub Cadet KH-24-153-30-S

O-RING VLV CVR

$11.99

$

Usually ships in 2-5 days

0

35

Cub Cadet KH-24-018-05-S

VALVE GUIDE RETAINER

$2.49

$

In Stock, only 2 left!

0

41

Cub Cadet KH-32-096-06-S

KIT-ROCKER COVER

$29.99

$

In Stock, only 1 left!

0

42

Cub Cadet KH-32-326-07-S

HOSE KIT-FUEL PUMP

$4.49

$

In Stock, Qty 6

0

43

Cub Cadet KH-24-755-141-S

COVER KIT-ROCKER

$35.99

$

In Stock, Qty 5

0

Cub Cadet KH-25-086-788-S

SCREW-HEX FLG M10X1.5-6X90

$2.49

$

Usually ships in 0 days

0

Cub Cadet KH-25-086-797-S

SCREW-HEX FLANGE M6x31.625

$2.99

$

Usually ships in 3-6 days

0

Cub Cadet KH-32-818-01-S

CYLINDER HEAD #1

$241.99

$

Usually ships in 0 days

0

Cub Cadet KH-32-818-02-S

CYLINDER HEAD #2

$241.99

$

Usually ships in 0 days

0

Cub Cadet KH-32-522-10

SHORT BLOCK

$894.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-32-755-09-S

OVERHAUL GASKET SET

$103.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-KT745-3100

COMPLETE ENGINE KT745

$2597.99

$

Usually ships in 0 days

0
