KT730-3025 - Kohler 7000 Series Engine, Made for Dixie Chopper, 23hp, 17.2kW Fuel System Group 8-32-169 KT Parts Diagram

7000 Series Engine, Made for Dixie Chopper, 23hp, 17.2kW

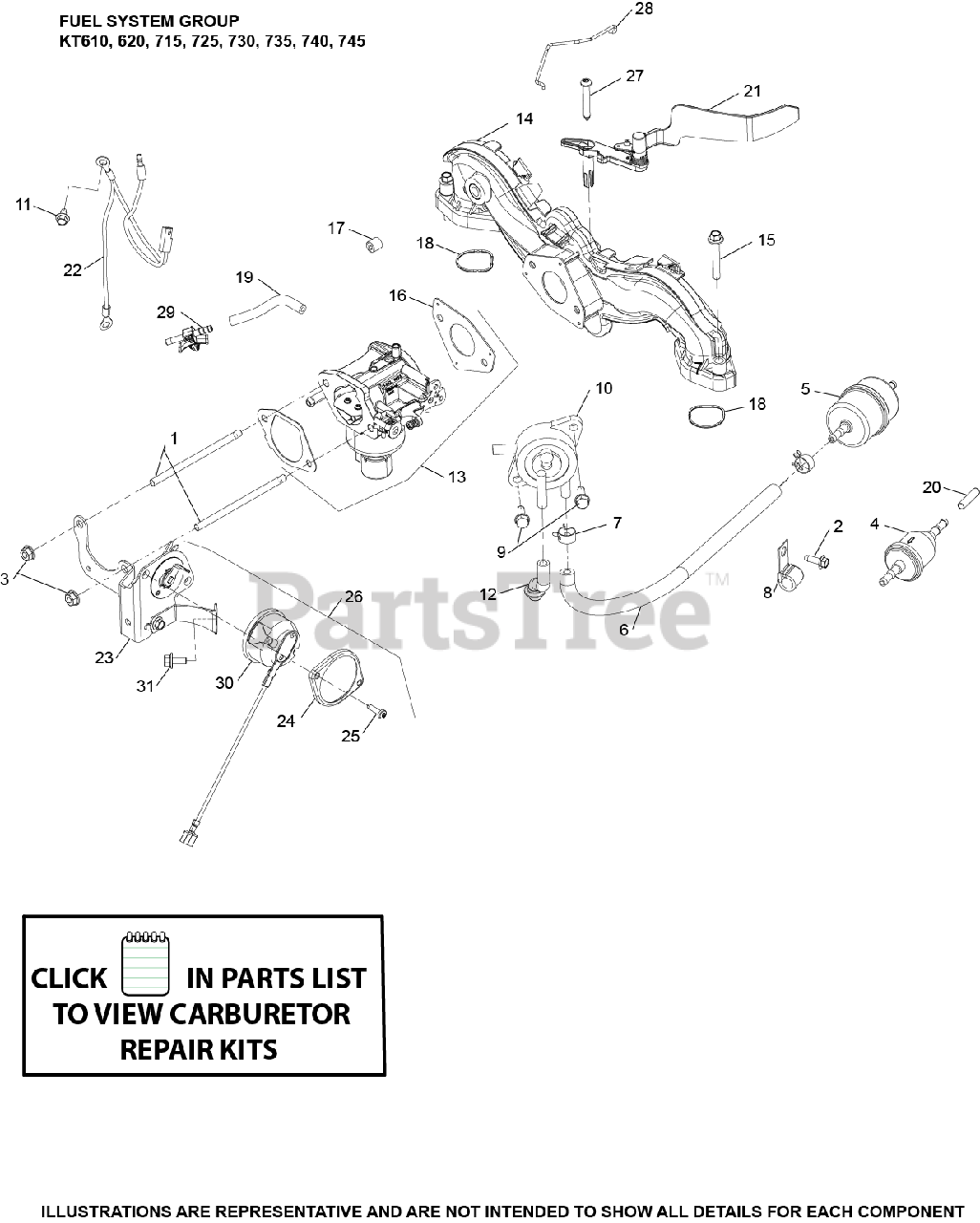

Fuel System Group 8-32-169 KT Parts Diagram

  • Title

1

Kohler 25 072 25-S

STUD

$14.99

$

In Stock, only 2 left!

0

3

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

5

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

6

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

7

Kohler 25 237 37-S

CLAMP SPRING HOSE

$2.49

$

In Stock, Qty 11

0

8

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 4 left!

0

9

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

10

Kohler 24 393 55-S

PUMP, FUEL (PULSE)

$

$

Not available

11

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

13

Kohler 32 853 63-S

KIT, CARBURETOR COMPLETE
(Superseded to 16 853 19-S)

$145.99

$

In Stock, Qty 6

0

14

Kohler 24 164 91-S

KIT, INTAKE MANIFOLD USE 24 164 266-S
(Superseded to 24 164 278-S)

$184.99

$

In Stock, only 1 left!

0

15

Kohler M-651040-S

SCREW, FLG M6X1.0X40

$2.49

$

In Stock, Qty 12

0

16

Kohler 24 041 52-S

GASKET, CARBURETOR
(Superseded to 24 041 91-S)

$5.49

$

In Stock, Qty 7

0

17

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

18

Kohler 24 153 27-S

O-RING, INTAKE PORT

$3.99

$

In Stock, Qty 8

0

25086651-S

Kohler 25 086 651-S

SCREW, THREAD FORMING

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0
