KT725-3097 - Kohler 7000 Series Engine, Made for Toro, 22hp, 16.4kW 08 Fuel System Parts Diagram

7000 Series Engine, Made for Toro, 22hp, 16.4kW

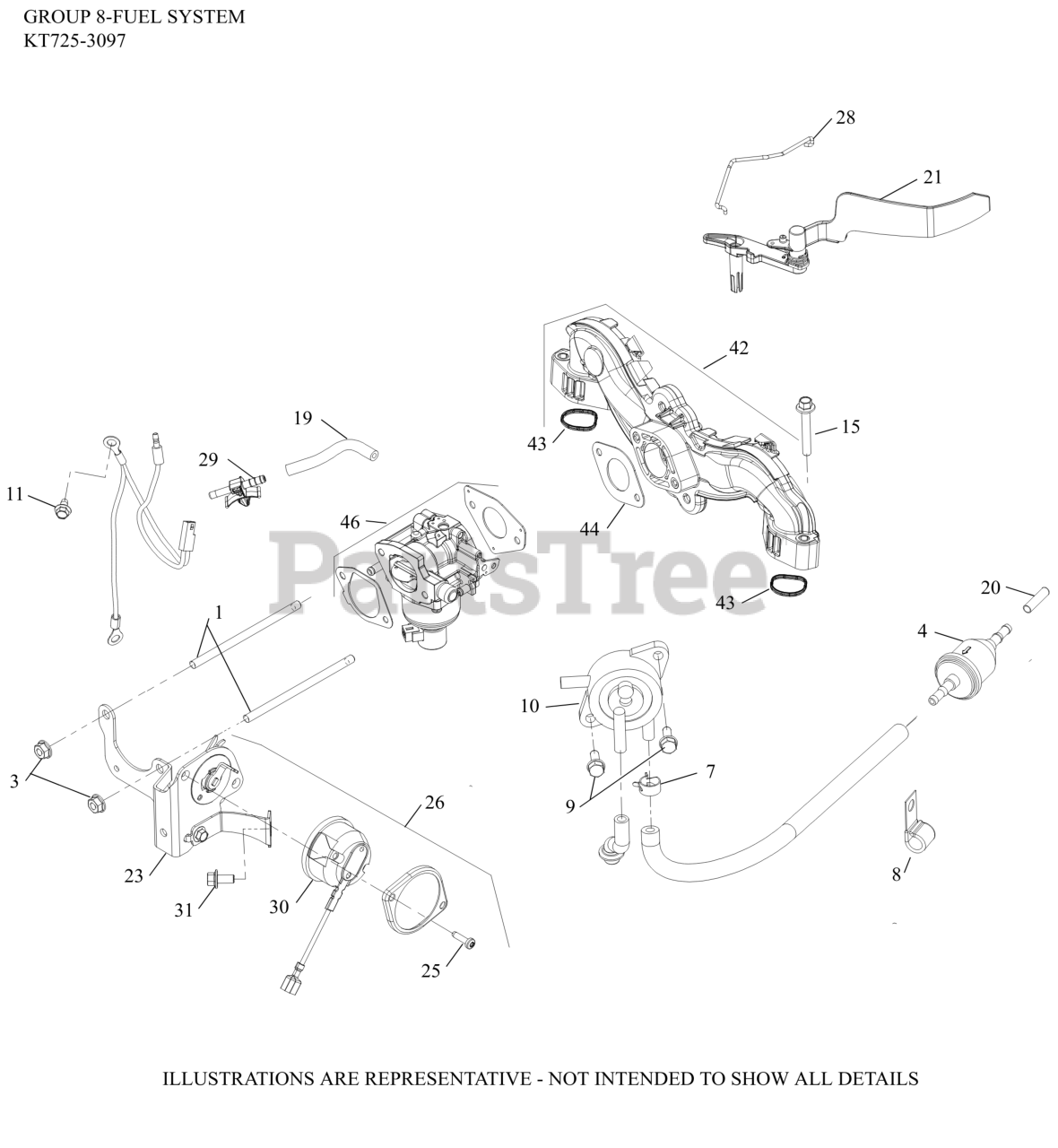

08 Fuel System Parts Diagram

  • Title

1

Kohler 25 072 25-S

STUD

$14.99

$

In Stock, only 2 left!

0

3

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

4

Kohler 25 050 22-S

FILTER,FUEL 51 MICRON (FUEL PUMP)

$8.99

$

In Stock, Qty 20+

0

6

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

7

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 11

0

8

Kohler 48 154 01-S

CLIP, CABLE (KM)

$2.49

$

In Stock, only 1 left!

0

9

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

10

Kohler 24 393 55-S

PUMP, FUEL (PULSE)-(#2539326S)

$

$

Not available

11

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

15

Kohler M-651040-S

SCREW, FLG M6X1.0X40

$2.49

$

In Stock, Qty 12

0

19

Kohler 25 326 71-S

HOSE EVAPORATIVE (WALBRO)

$2.49

$

In Stock, only 2 left!

0

20

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

Usually ships in 2-5 days

0

21

Kohler 32 265 02-S

DEFLECTOR ASSEMBLY, AIR VANE

$6.99

$

In Stock, only 1 left!

0

23

Kohler 32 126 10-S

BRACKET ASSY, AUTO-CHOKE (MECH)

$12.99

$

In Stock, only 1 left!

0

25

Kohler 25 086 650-S

SCREW, PAN HEAD THREAD FORMING (M4)

$2.49

$

In Stock, only 2 left!

0

26

Kohler 32 126 13-S

THERMOSTAT ASSY (CDI) - USE 32 755 27-S

$

$

Not available

26

Kohler 32 126 17-S

THERMOSTAT ASSY(MDI IGN)-USE 32 755 27-S

$

$

Not available

28

Kohler 32 079 08-S

LINKAGE, CHOKE UPLOADER

$2.49

$

In Stock, only 1 left!

0

29

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 3 left!

0

30

Kohler 32 453 02-S

KIT, THERMOSTAT, ELECTRIC CHOKE

$32.99

$

In Stock, Qty 18

0

31

Kohler M-651012-S

SCREW, FLG M6X1.0X12

$3.49

$

Usually ships in 2-5 days

0

42

Kohler 24 164 277-S

INTAKE MANIFOLD W/GASKETS

$67.99

$

In Stock, only 1 left!

0

43

Kohler 24 153 37-S

O-RING, INTAKE PORT

$3.99

$

Usually ships in 2-5 days

0

44

Kohler 24 041 91-S

GASKET, CARBURETOR (PIM, CV)

$5.49

$

In Stock, Qty 7

0

46

Kohler 32 853 91-S

KIT,CARB(NIKKI)

$132.99

$

Usually ships in 2-5 days

0

NI

Kohler 16 757 02-S

KIT, BOWL WITH O-RINGS NIKKI G-TYPE TWIN

$21.99

$

In Stock, only 1 left!

0

NI

Kohler 16 757 03-S

KIT, FLOAT AND NEEDLE NIKKI G-TYPE TWIN

$33.99

$

In Stock, only 1 left!

0

NI

Kohler 16 757 06-S

KIT,CHOKE REP(SMART/E-CHOKE)-DISC.

$

$

Not available

NI

Kohler 22 757 03-S

KIT, O-RING

$9.99

$

In Stock, only 1 left!

0

NI

Kohler 22 757 04-S

KIT, SOLENOID (NIKKI)

$112.99

$

In Stock, only 1 left!

0

NI

Kohler 32 755 41-S

KIT, HIGH ALTITUDE 5000 FT.

$30.99

$

Usually ships in 2-5 days

0
