KT725-3083 - Kohler 7000 Series Engine, Made for MTD, 22hp, 16.4kW Blower Housing Group 6-32-22 KT Parts Diagram

7000 Series Engine, Made for MTD, 22hp, 16.4kW

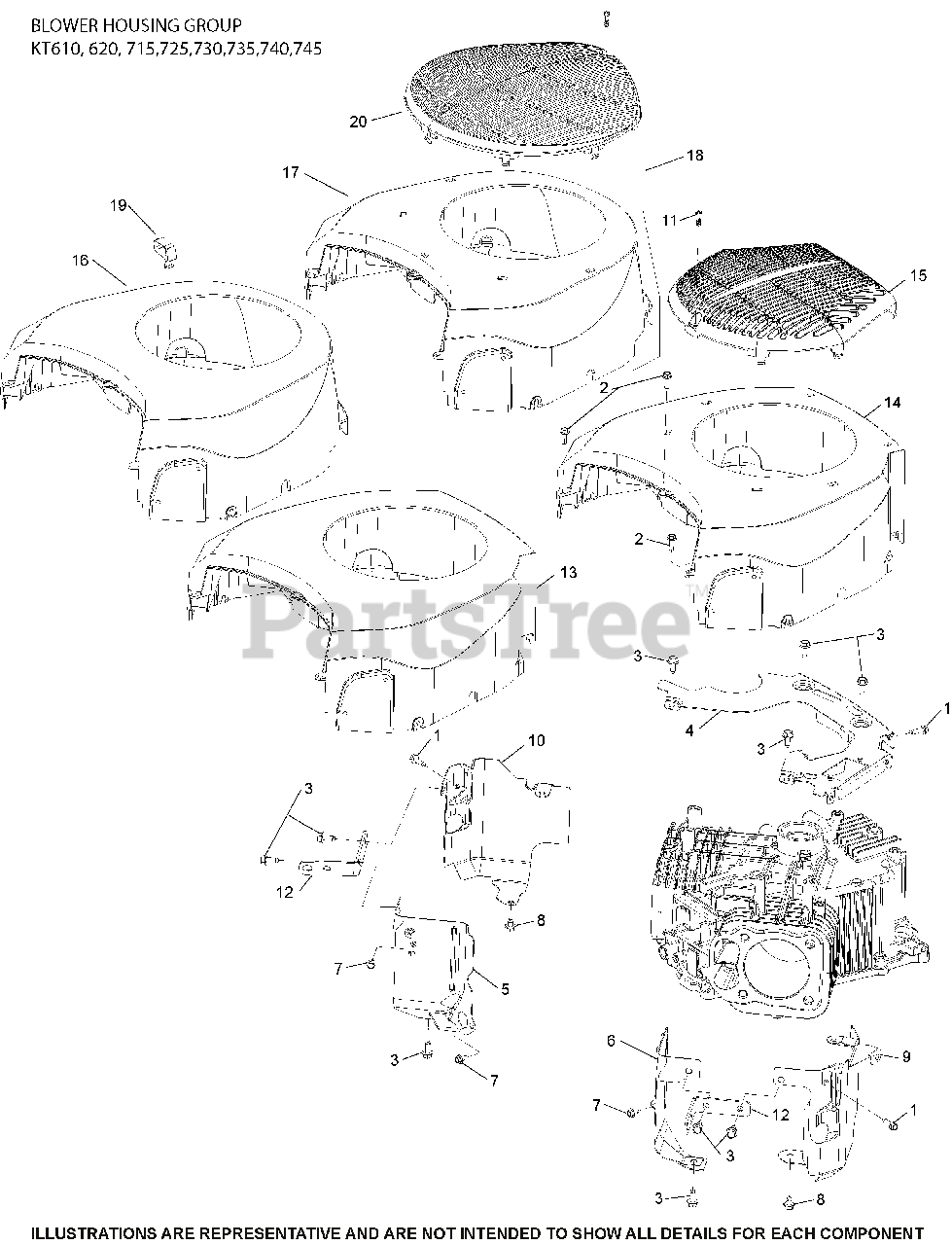

Blower Housing Group 6-32-22 KT Parts Diagram

  • Title

1

Kohler 25 086 399-S

SCREW, THREAD FORMING - USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

2

Kohler 25 086 450-S

SCREW, HI-LOW

$

$

Not available

3

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 15

0

4

Kohler 32 146 15-S

PLATE, BACKING

$14.99

$

Usually ships in 2-5 days

0

5

Kohler 32 063 19-S

BAFFLE, VALLEY #1 USE 32 063 23-S
(Superseded to 32 063 23-S)

$8.49

$

Usually ships in 2-5 days

0

6

Kohler 32 063 22-S

BAFFLE, VALLEY #2
(Superseded to 32 063 35-S)

$3.49

$

Usually ships in 2-5 days

0

7

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

9

Kohler 32 063 17-S

BAFFLE, LEFT BARREL

$14.99

$

Usually ships in 2-5 days

0

10

Kohler 32 063 18-S

BAFFLE, RIGHT BARREL

$14.99

$

Usually ships in 2-5 days

0

11

Kohler 25 086 449-S

SCREW, M5-2.42 (PT) THREAD

$5.49

$

In Stock, only 3 left!

0

12

Kohler 32 445 01-S

STRAP, LIFTING

$3.49

$

Usually ships in 2-5 days

0

14

Kohler 32 027 17-S

HOUSING, BLOWER USE 32 027 20-S
(Superseded to 32 027 44-S)

$45.99

$

Usually ships in 2-5 days

0

15

Kohler 32 314 06-S

GUARD, FIXED

$10.99

$

Usually ships in 2-5 days

0
