KT620-3014 - Kohler 6600 Series Engine, Made for MTD, 21hp, 15.7kW Blower Housing Group 6-32-54 KT Parts Diagram

6600 Series Engine, Made for MTD, 21hp, 15.7kW

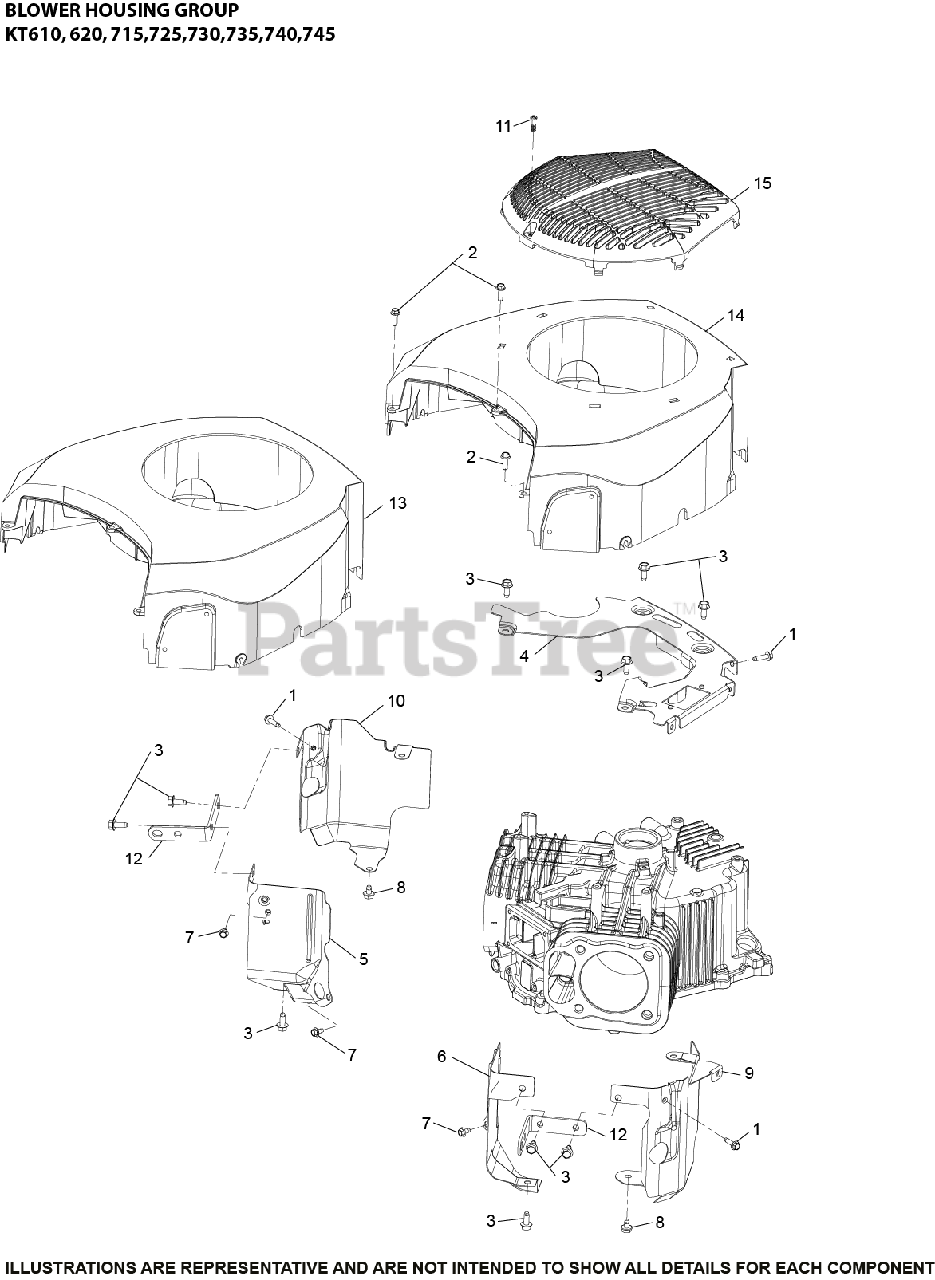

Blower Housing Group 6-32-54 KT Parts Diagram

  • Title
1

Kohler 25 086 399-S

SCREW, THREAD FORMING - USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

2

Kohler 25 086 450-S

SCREW, HI-LOW

$

$

Not available

3

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 13

0

4

Kohler 32 146 15-S

PLATE, BACKING

$14.99

$

Usually ships in 2-5 days

0

5

Kohler 32 063 23-S

BAFFLE, VALLEY #1

$8.49

$

Usually ships in 2-5 days

0

6

Kohler 32 063 22-S

BAFFLE, VALLEY #2
(Superseded to 32 063 35-S)

$3.49

$

Usually ships in 2-5 days

0

7

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

9

Kohler 32 063 17-S

BAFFLE, LEFT BARREL

$14.99

$

Usually ships in 2-5 days

0

10

Kohler 32 063 18-S

BAFFLE, RIGHT BARREL

$14.99

$

Usually ships in 2-5 days

0

11

Kohler 25 086 449-S1

SCREW, M5-2.42 (PT) THREAD

$

$

Not available

14

Kohler 32 027 24-S

KIT, BLOWER HOUSING

$50.99

$

Usually ships in 2-5 days

0

15

Kohler 32 314 08-S

GUARD, FIXED

$16.99

$

Usually ships in 2-5 days

0
