KT620-3012 - Kohler 6600 Series Engine, Made for Scag, 21hp, 15.7kW 09 Engine Controls Parts Diagram

6600 Series Engine, Made for Scag, 21hp, 15.7kW

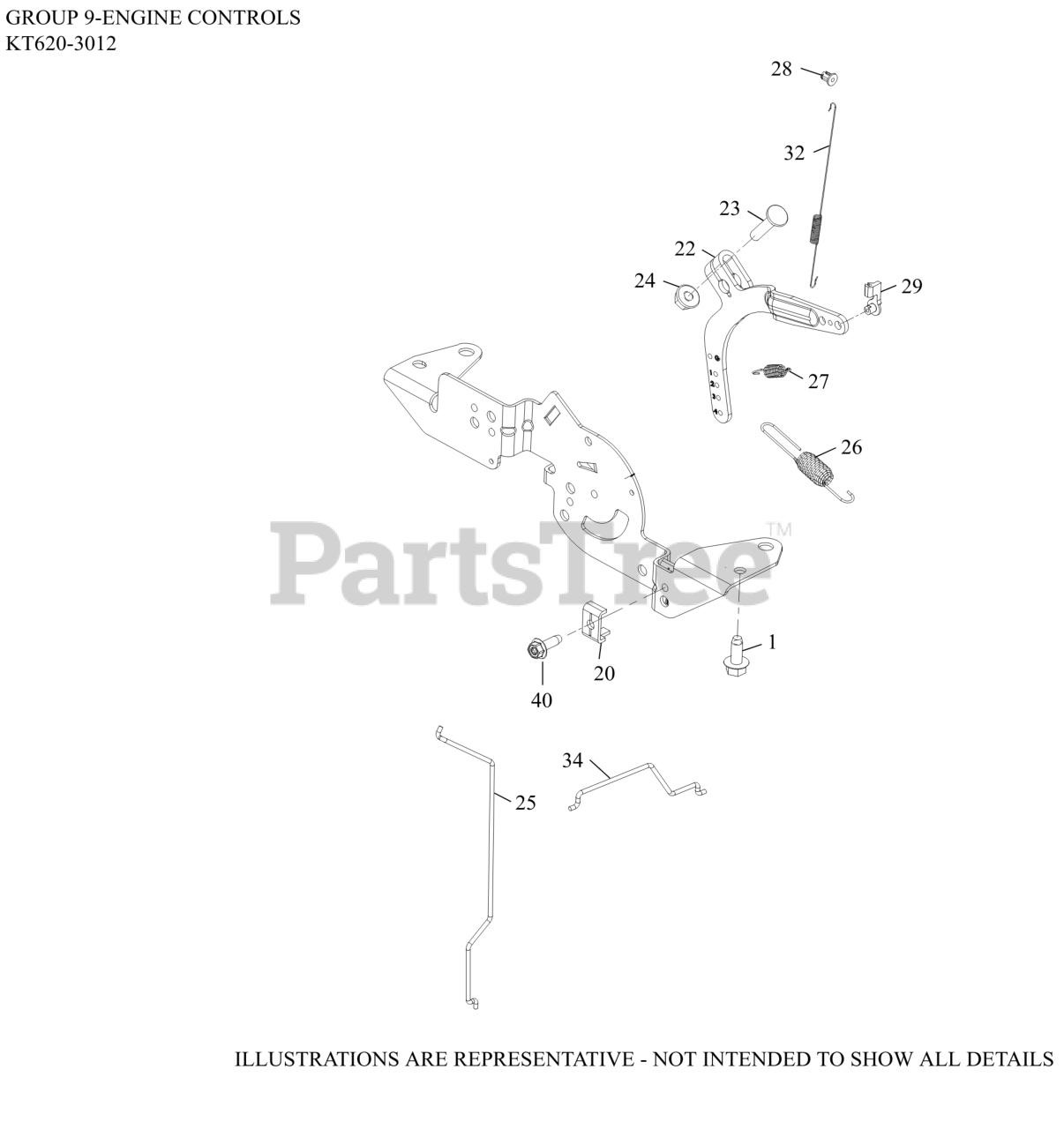

09 Engine Controls Parts Diagram

  • Title

1

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 15

0

20

Kohler 12 237 01-S

CLAMP, CABLE-(#2523753S)
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

22

Kohler 24 090 57-S

LEVER, GOVERNOR - (#2409069S)
(Superseded to 24 090 69-S)

$8.99

$

In Stock, only 1 left!

0

23

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

24

Kohler 12 100 07-S

NUT, FLANGE 1/4-20

$2.49

$

In Stock, only 3 left!

0

24

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 9

0

25

Kohler 24 079 22-S

LINKAGE, CHOKE

$6.99

$

In Stock, Qty 7

0

26

Kohler 24 089 25-S

SPRING, GOVERNOR (ORANGE)

$15.99

$

In Stock, only 1 left!

0

27

Kohler 24 089 55-S

SPRING, GOVERNED IDLE

$2.49

$

In Stock, Qty 6

0

28

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 19

0

29

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 13

0

32

Kohler 32 089 11-S

SPRING, LINKAGE

$2.49

$

In Stock, Qty 18

0

34

Kohler 24 079 04-S

LINKAGE, THROTTLE

$3.49

$

In Stock, Qty 6

0

40

Kohler 25 086 651-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0
