KT620-3007 - Kohler 6600 Series Engine, Basic Version, 21hp, 15.7kW 05 Ignition/Charging Parts Diagram

6600 Series Engine, Basic Version, 21hp, 15.7kW

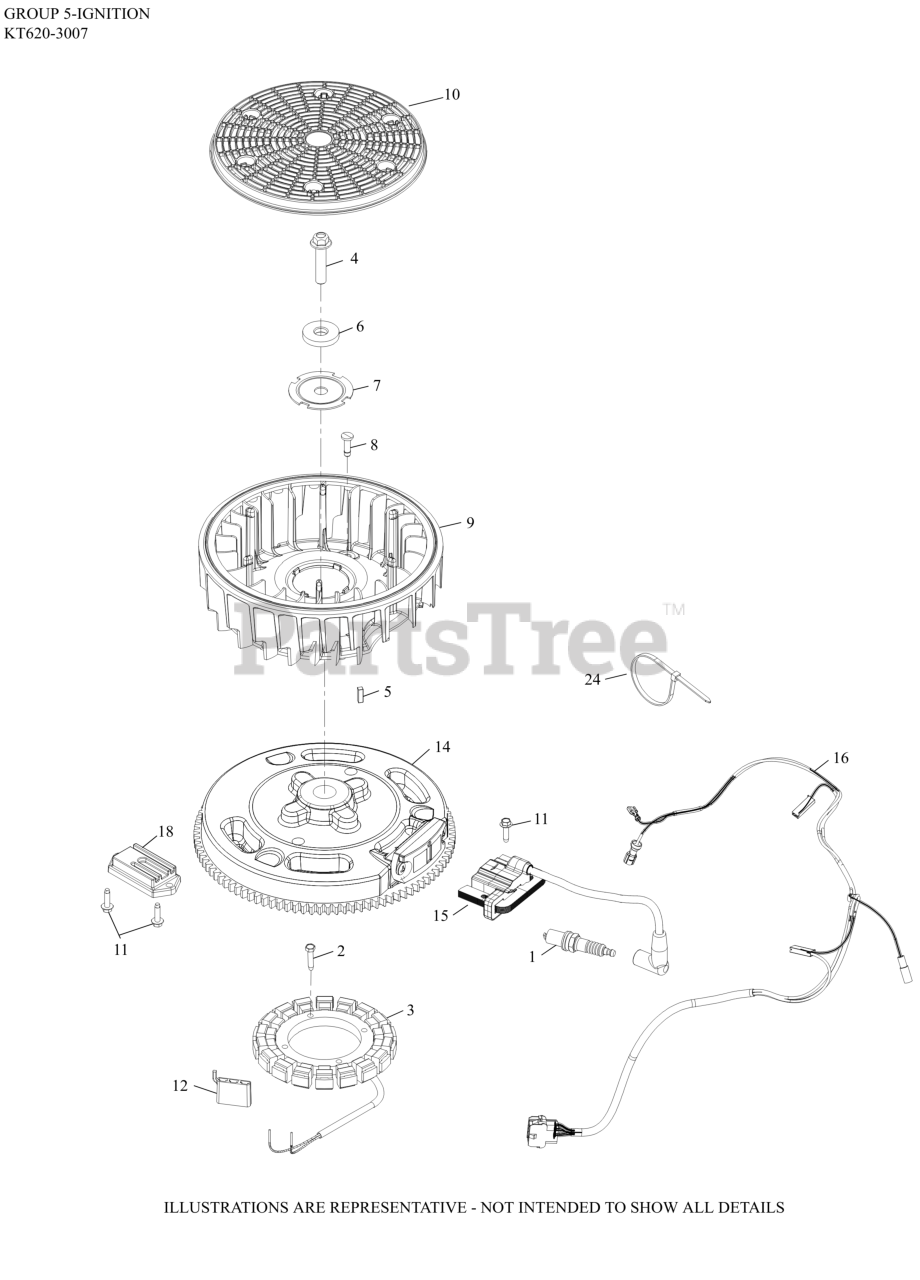

05 Ignition/Charging Parts Diagram

  • Title

1

Kohler 25 132 14-S

SPARK PLUG, RFI

$14.99

$

Usually ships in 2-5 days

0

2

Kohler 25 086 402-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

3

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 8

0

4

Kohler 25 086 361-S

SCREW, HEX FLANGE

$3.99

$

In Stock, Qty 12

0

5

Kohler 25 340 04-S

KEY, SQUARE

$3.99

$

In Stock, Qty 10

0

6

Kohler 25 468 09-S

WASHER, FLAT

$6.49

$

In Stock, only 2 left!

0

7

Kohler 20 146 05-S

PLATE, FAN MOUNTING

$2.99

$

In Stock, Qty 11

0

8

Kohler 32 018 03-S

RETAINER, FLYWHEEL FAN

$2.49

$

In Stock, only 2 left!

0

9

Kohler 32 157 04-S

FAN

$15.99

$

In Stock, only 4 left!

0

10

Kohler 32 162 03-S

SCREEN, GRASS

$5.49

$

In Stock, Qty 7

0

11

Kohler 25 086 399-S

SCREW, THD FRM-USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

12

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

14

Kohler 32 025 22-S

FLYWHEEL ASSEMBLY

$347.99

$

In Stock, only 1 left!

0

15

Kohler 32 584 06-S

MODULE, CDI IGNITION

$43.99

$

In Stock, Qty 10

0

16

Kohler 32 176 51-S

HARNESS, WIRING ASSEMBLY

$23.99

$

In Stock, only 3 left!

0

18

Kohler 25 403 35-S

REGULATOR/RECTIFIER 12/15A HALF-WAVE STD

$

$

Not available

24

Kohler 25 454 05-S

TIE

$2.49

$

In Stock, only 2 left!

0
