KT620-3004 - Kohler 6600 Series Engine, Basic Version, 21hp, 15.7kW 06 Blower Housing Parts Diagram

6600 Series Engine, Basic Version, 21hp, 15.7kW

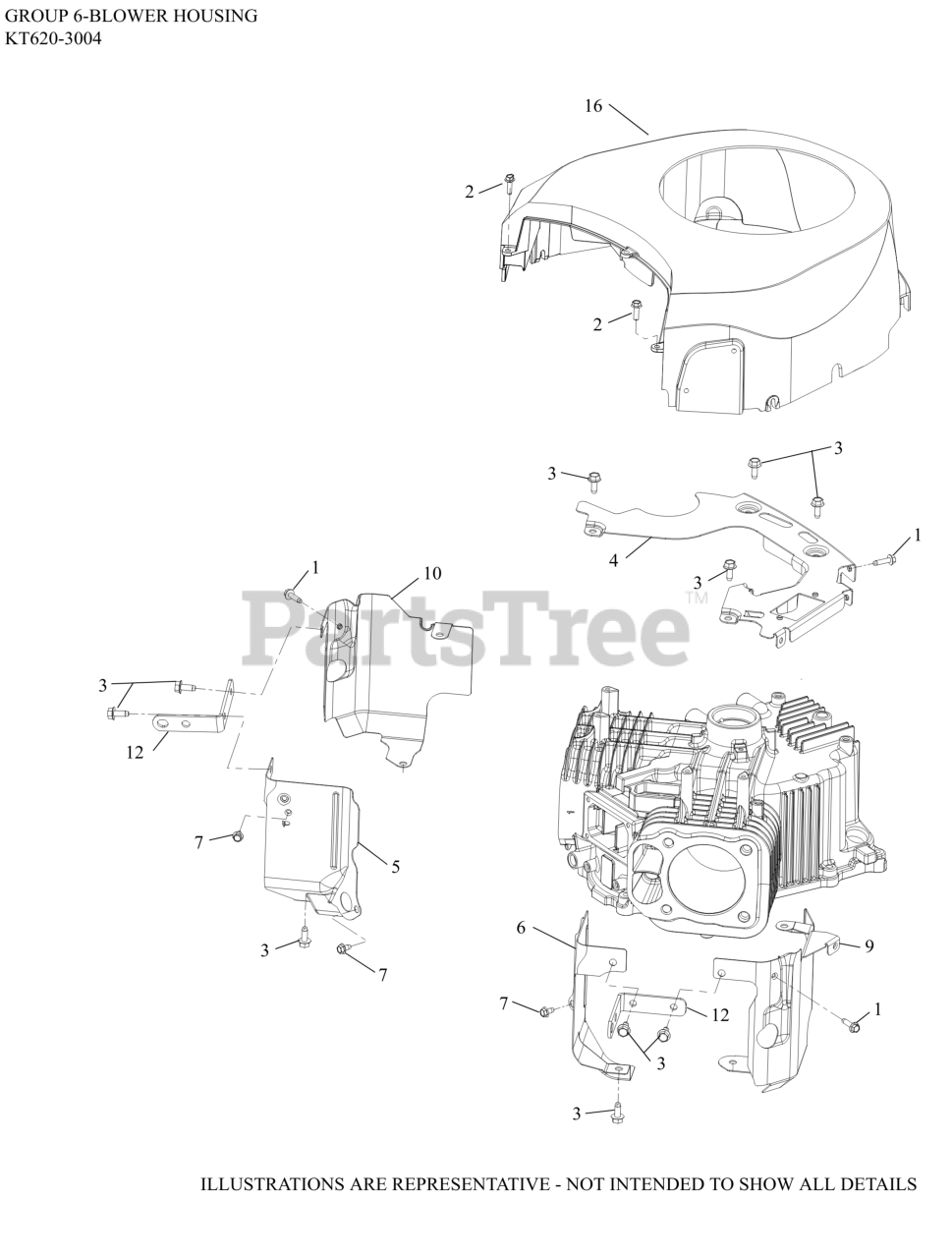

06 Blower Housing Parts Diagram

  • Title
1

Kohler 25 086 399-S

SCREW, THD FRM-USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

2

Kohler 25 086 450-S

SCREW, HI-LOW

$

$

Not available

3

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 13

0

4

Kohler 32 146 15-S

PLATE, BACKING

$14.99

$

Usually ships in 2-5 days

0

5

Kohler 32 063 23-S

BAFFLE, VALLEY #1

$8.49

$

Usually ships in 2-5 days

0

6

Kohler 32 063 22-S

BAFFLE, VALLEY #2
(Superseded to 32 063 35-S)

$3.49

$

Usually ships in 2-5 days

0

7

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

9

Kohler 32 063 17-S

BAFFLE, LEFT BARREL

$14.99

$

Usually ships in 2-5 days

0

10

Kohler 32 063 18-S

BAFFLE, RIGHT BARREL

$14.99

$

Usually ships in 2-5 days

0

12

Kohler 32 445 01-S

STRAP, LIFTING

$3.49

$

Usually ships in 2-5 days

0

16

Kohler 32 027 22-S

KIT, BLOWER HOUSING

$

$

Not available
