KT620-3003 - Kohler 6600 Series Engine, Basic Version, 21hp, 15.7kW 02 CrankCase Parts Diagram

6600 Series Engine, Basic Version, 21hp, 15.7kW

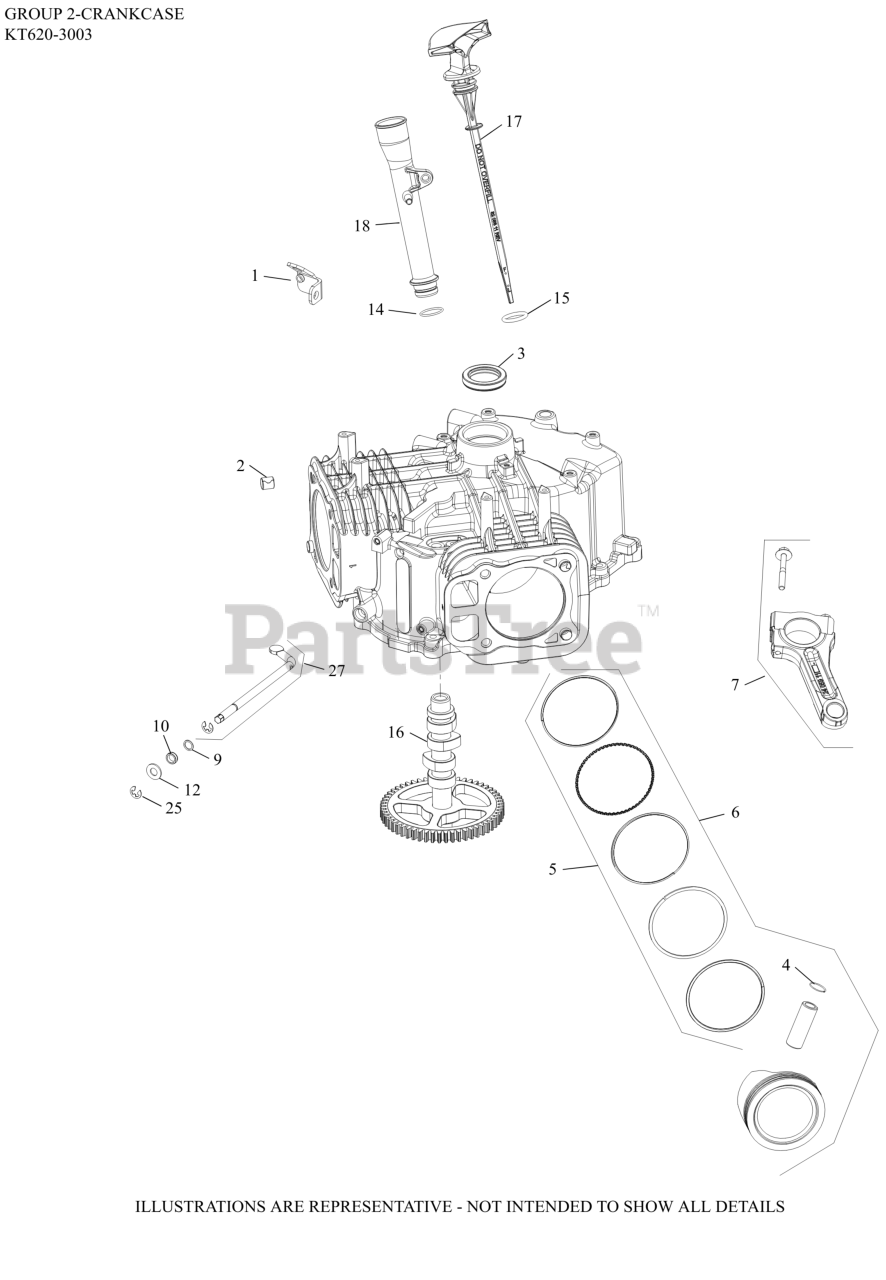

02 CrankCase Parts Diagram

  • Title

1

Kohler 24 126 243-S

BRACKET, OIL FILL TUBE

$11.99

$

In Stock, only 1 left!

0

2

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 2 left!

0

2

Kohler 25 086 677-S

KIT, ROD BOLTS

$2.49

$

In Stock, only 1 left!

0

3

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

4

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

5

Kohler 25 108 01-S

RING SET(STD)STYLE B-1.2mm Tp RING THICK

$63.99

$

In Stock, only 4 left!

0

6

Kohler 25 874 21-S

KIT, PISTON & RINGS ASSY

$86.99

$

Usually ships in 2-5 days

0

7

Kohler 21 067 04-S

ROD, ASSEMBLY CONNECTING

$40.99

$

Usually ships in 2-5 days

0

9

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

10

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 7

0

12

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

14

Kohler 12 153 07-S

O-RING

$2.49

$

In Stock, Qty 11

0

15

Kohler 25 153 09-S

O-RING

$3.49

$

In Stock, only 1 left!

0

16

Kohler 16 010 04-S

CAMSHAFT ASSEMBLY (PLASTIC GEAR)
(Superseded to 32 010 07-S)

$83.99

$

In Stock, only 1 left!

0

17

Kohler 32 038 14-S

DIPSTICK, ASSY

$9.49

$

In Stock, Qty 6

0

18

Kohler 32 123 14-S

TUBE ASSEMBLY, OIL FILL

$6.99

$

In Stock, only 1 left!

0

25

Kohler 32 154 03-S

CLIP, RETAINER GOVERNOR SHAFT

$2.49

$

Usually ships in 2-5 days

0

27

Kohler 32 755 22-S

KIT, CROSS SHAFT

$4.49

$

Usually ships in 2-5 days

0
