KT610-3016 - Kohler 6600 Series Engine, Made for Husqvarna, 19hp, 14.2kW 04 CylinderHead/Breather Parts Diagram

6600 Series Engine, Made for Husqvarna, 19hp, 14.2kW

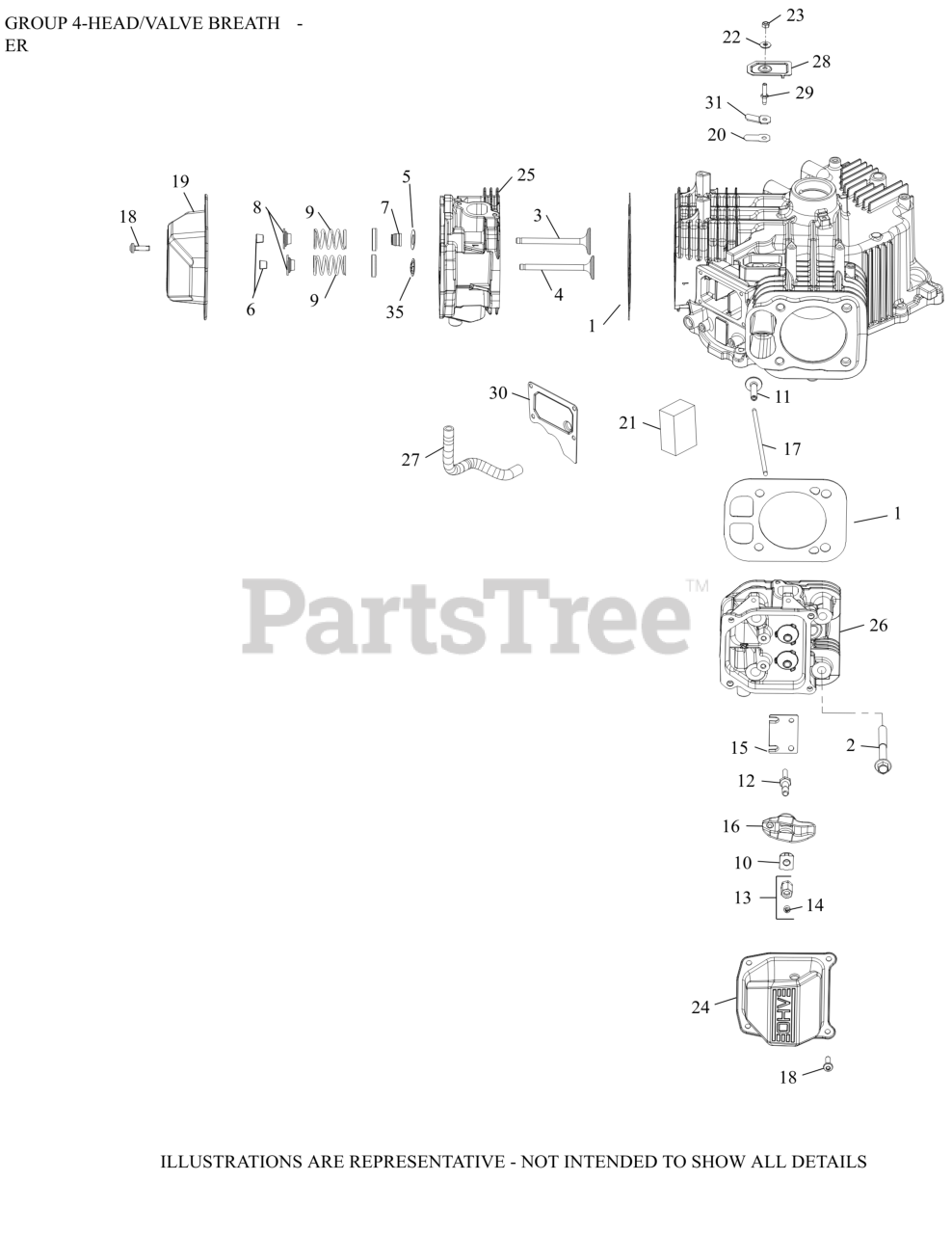

04 CylinderHead/Breather Parts Diagram

  • Title

1

Kohler 32 841 02-S

KIT, CYLINDER HEAD GASKET

$19.99

$

In Stock, Qty 20+

0

2

Kohler 62 086 08-S

SCREW, FLG M10X1.5X90

$5.99

$

In Stock, Qty 5

0

3

Kohler 32 017 01-S

VALVE, INTAKE

$8.49

$

In Stock, only 1 left!

0

3

Kohler 32 017 02-S

VALVE, INTAKE (.25) - (#2401702S)
(Superseded to 24 017 02-S)

$

$

Not available

4

Kohler 32 016 01-S

VALVE, EXHAUST

$15.99

$

In Stock, Qty 14

0

4

Kohler 32 016 02-S

VALVE, EXHAUST (.25)

$15.99

$

In Stock, only 3 left!

0

5

Kohler 275067-S

SPACER (.010")

$8.49

$

In Stock, only 2 left!

0

6

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 8

0

7

Kohler 25 032 14-S

SEAL, VALVE BAND

$11.99

$

In Stock, Qty 20+

0

8

Kohler 25 173 28-S

CAP, VALVE SPRING

$8.49

$

In Stock, only 3 left!

0

9

Kohler 25 089 17-S

SPRING VALVE

$2.49

$

In Stock, only 3 left!

0

10

Kohler 25 599 01-S

PIVOT, ROCKER ARM

$2.99

$

In Stock, only 2 left!

0

11

Kohler 32 019 02-S

TAPPET

$13.99

$

In Stock, only 3 left!

0

12

Kohler 32 072 04-S

STUD, ROCKER

$4.99

$

In Stock, only 3 left!

0

13

Kohler 32 100 05-S

HEX NUT ASSEMBLY

$3.99

$

In Stock, Qty 7

0

14

Kohler 25 086 168-S

SCREW, SET

$4.49

$

In Stock, only 2 left!

0

15

Kohler 32 146 09-S

PLATE, GUIDE

$2.99

$

In Stock, only 3 left!

0

16

Kohler 32 186 03-S

ARM, ROCKER

$6.49

$

In Stock, only 1 left!

0

17

Kohler 32 411 04-S

ROD, PUSH

$4.99

$

In Stock, only 3 left!

0

18

Kohler 25 086 660-S

SCREW, PAN HEAD

$2.49

$

In Stock, Qty 20+

0

19

Kohler 25 096 09-S

COVER, ROCKER STAMPED STEEL

$14.99

$

In Stock, Qty 5

0

20

Kohler 12 402 02-S

REED, BREATHER

$3.99

$

In Stock, Qty 8

0

21

Kohler 32 050 06-S

FILTER, BREATHER

$2.99

$

In Stock, only 1 left!

0

22

Kohler 32 468 01-S

WASHER, SEALING

$2.99

$

In Stock, only 1 left!

0

23

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 1 left!

0

24

Kohler 25 096 11-S

COVER, ROCKER STAMPED STEEL

$8.49

$

In Stock, only 1 left!

0

25

Kohler 32 318 21-S

HEAD, ASSY CYL (#1)-USE 32 755 29-S
(Superseded to 32 818 01-S)

$198.99

$

Usually ships in 2-5 days

0

26

Kohler 32 318 22-S

HEAD, ASSY CYL (#2)-(#3275530S)
(Superseded to 32 818 02-S)

$198.99

$

In Stock, only 1 left!

0

27

Kohler 25 326 62-S

HOSE, BREATHER

$12.99

$

In Stock, only 1 left!

0

28

Kohler 32 096 16-S

COVER, BREATHER REED

$2.99

$

Usually ships in 2-5 days

0

29

Kohler 32 072 05-S

STUD

$2.49

$

Usually ships in 2-5 days

0

30

Kohler 16 096 02-S

COVER, BREATHER MEDIA

$2.99

$

Usually ships in 2-5 days

0

31

Kohler 66 018 04-S

RETAINER, REED

$4.99

$

In Stock, only 4 left!

0

35

Kohler 24 018 05-S

RETAINER, VALVE GUIDE (KM)

$2.49

$

In Stock, only 2 left!

0
