KT610-3013 - Kohler 6600 Series Engine, Made for Bercomac, 19hp, 14.2kW 08 Fuel System Parts Diagram

6600 Series Engine, Made for Bercomac, 19hp, 14.2kW

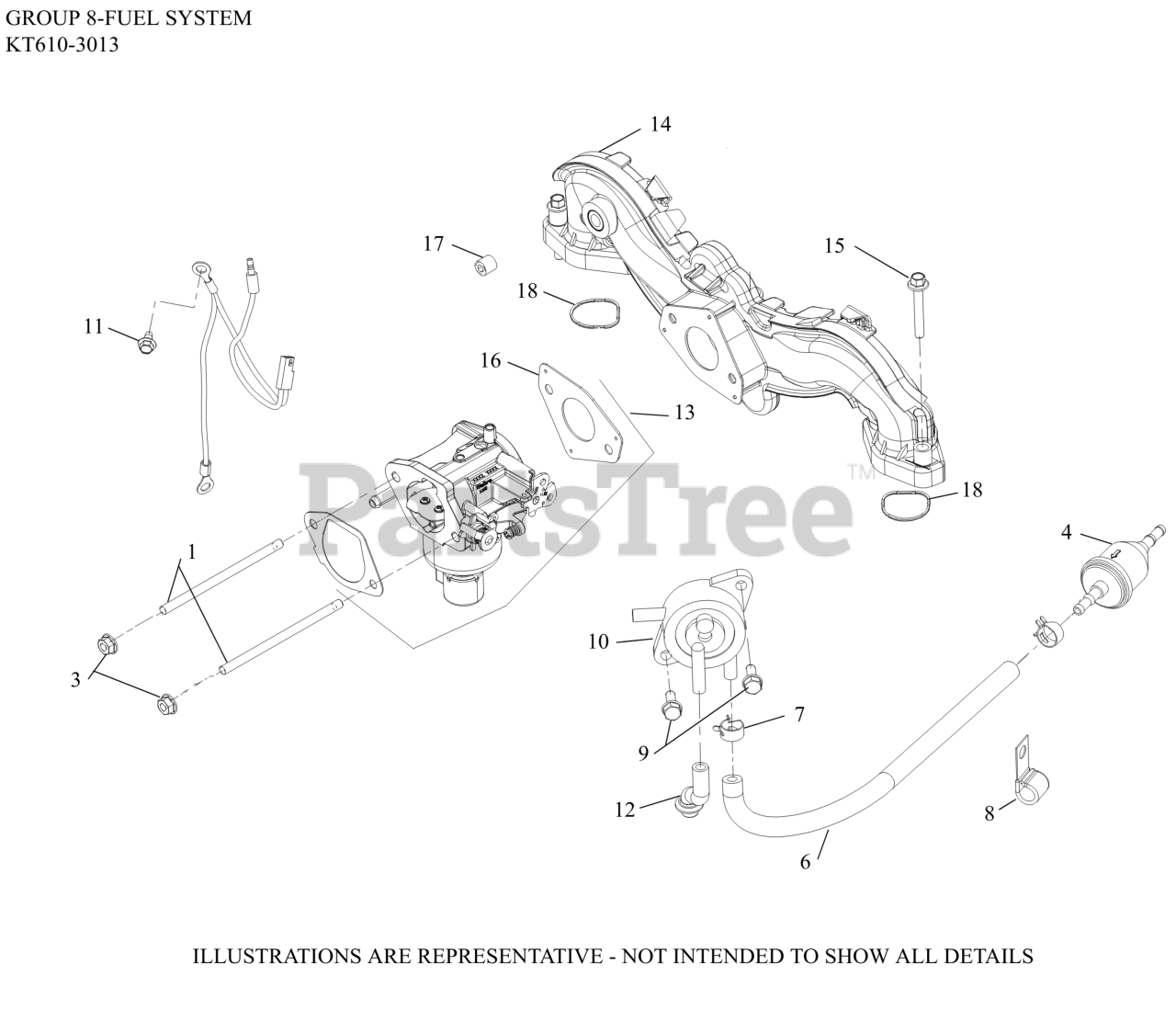

08 Fuel System Parts Diagram

  • Title

1

Kohler 25 072 25-S

STUD

$14.99

$

In Stock, only 2 left!

0

3

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 6

0

4

Kohler 25 050 22-S

FILTER,FUEL 51 MICRON (FUEL PUMP)

$8.99

$

In Stock, Qty 20+

0

6

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

7

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 11

0

8

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 4 left!

0

9

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

10

Kohler 24 393 55-S

PUMP, FUEL (PULSE)-(#2539326S)

$

$

Not available

11

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

12

Kohler 32 326 08-S

HOSE, PULSE PUMP(STEEL COVERS)

$3.99

$

In Stock, only 4 left!

0

13

Kohler 21 853 03-S

KIT,CARB(WALBRO)

$164.99

$

In Stock, only 1 left!

0

14

Kohler 24 164 265-S

KIT, INTAKE MANIFOLD-(#24164277S)
(Superseded to 24 164 277-S)

$67.99

$

In Stock, only 1 left!

0

15

Kohler M-651040-S

SCREW, FLG M6X1.0X40

$2.49

$

In Stock, Qty 12

0

16

Kohler 24 041 52-S

GASKET, CARBURETOR
(Superseded to 24 041 91-S)

$5.49

$

In Stock, Qty 7

0

17

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

18

Kohler 24 153 36-S

O-RING, INTAKE PORT (PIM)

$5.49

$

In Stock, Qty 10

0

NI

Kohler 25 757 27-S

KIT,REPAIR OVERHAUL(WALBRO)

$22.99

$

In Stock, Qty 7

0

NI

Kohler 25 757 28-S

KIT,BOWL O-RING(WALBRO)

$3.99

$

In Stock, only 3 left!

0

NI

Kohler 32 755 19-S

KIT, HI ALTITUDE (5000 FT) 19MM

$25.99

$

Usually ships in 2-5 days

0

NI

Kohler 32 757 01-S

KIT,SOLENOID REPAIR(WALBRO)

$64.99

$

In Stock, only 1 left!

0

NI

Kohler 32 757 02-S

KIT,REPAIR FLOAT(WALBRO)

$44.99

$

In Stock, only 1 left!

0
