KT610-3001 - Kohler 6600 Series Engine, Basic Version, 19hp, 14.2kW 09 Engine Controls Parts Diagram

6600 Series Engine, Basic Version, 19hp, 14.2kW

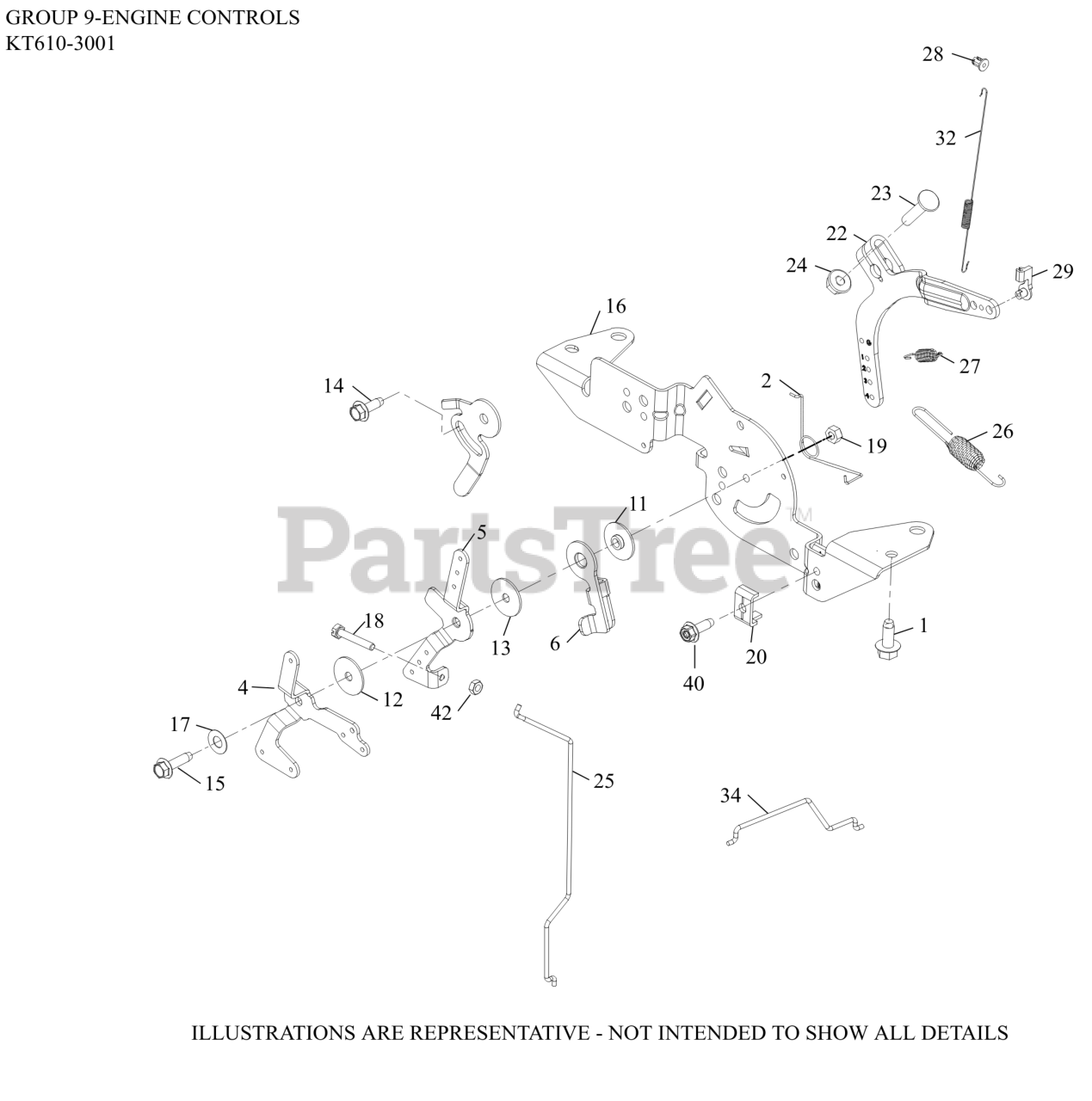

09 Engine Controls Parts Diagram

  • Title
1

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 13

0

2

Kohler 24 089 03 -S

SPRING, CHOKE RETURN

$

$

Not available

4

Kohler 24 090 05-S

LEVER, CHOKE

$5.49

$

In Stock, only 2 left!

0

5

Kohler 24 090 13-S

LEVER, THROTTLE CONTROL

$9.49

$

In Stock, only 1 left!

0

6

Kohler 24 090 47-S

LEVER, THROTTLE ACTUATOR

$2.99

$

In Stock, Qty 11

0

11

Kohler 24 112 27-S

SPACER, CONTROL ASSEMBLY

$3.99

$

In Stock, only 1 left!

0

12

Kohler 24 468 01-S

WASHER, FLAT 5.5 MM

$2.49

$

In Stock, only 2 left!

0

13

Kohler 24 468 20-S

WASHER, FLAT 5 MM

$2.49

$

In Stock, only 1 left!

0

14

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

15

Kohler 25 086 399-S

SCREW, THD FRM-USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

16

Kohler 32 126 18-S

BRACKET, SPEED CONTROL

$11.99

$

In Stock, only 2 left!

0

17

Kohler 41 468 03-S

WASHER, SPRING 1/4"

$3.49

$

In Stock, only 2 left!

0

18

Kohler M-403025-S

SCREW, SLT HD CAP M4X0.7X25

$4.99

$

In Stock, only 1 left!

0

19

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 1 left!

0

20

Kohler 12 237 01-S

CLAMP, CABLE-(#2523753S)
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

22

Kohler 24 090 57-S

LEVER, GOVERNOR - (#2409069S)
(Superseded to 24 090 69-S)

$8.99

$

In Stock, only 1 left!

0

23

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

24

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

25

Kohler 24 079 22-S

LINKAGE, CHOKE

$6.99

$

In Stock, Qty 7

0

26

Kohler 24 089 25-S

SPRING, GOVERNOR (ORANGE)

$15.99

$

In Stock, only 1 left!

0

27

Kohler 24 089 55-S

SPRING, GOVERNED IDLE

$2.49

$

In Stock, only 4 left!

0

28

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 18

0

29

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, only 2 left!

0

32

Kohler 32 089 11-S

SPRING, LINKAGE

$2.49

$

In Stock, Qty 18

0

34

Kohler 24 079 04-S

LINKAGE, THROTTLE

$3.49

$

In Stock, Qty 5

0

40

Kohler 25 086 651-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

42

Kohler M-446030-S

NUT, M4X0.7

$2.49

$

In Stock, only 4 left!

0
