KT600-3012 - Kohler KT Series Engine, Made for Husqvarna, 17hp 08 Fuel System Parts Diagram

KT Series Engine, Made for Husqvarna, 17hp

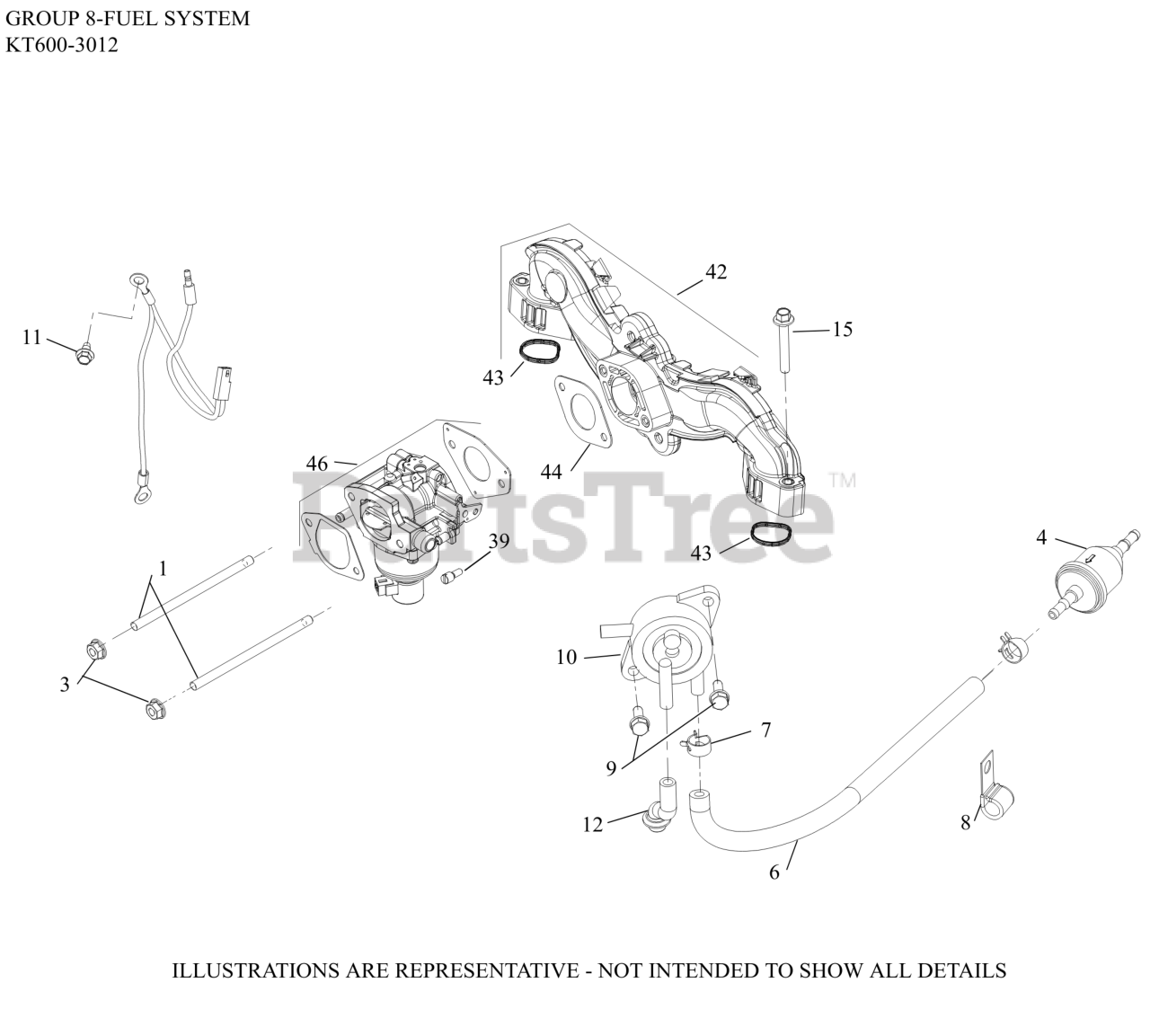

08 Fuel System Parts Diagram

  • Title

1

Kohler 25 072 25-S

STUD

$14.99

$

In Stock, only 2 left!

0

3

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

4

Kohler 25 050 22-S

FILTER,FUEL 51 MICRON (FUEL PUMP)

$8.99

$

In Stock, Qty 20+

0

6

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

7

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 11

0

8

Kohler 48 154 01-S

CLIP, CABLE (KM)

$2.49

$

In Stock, only 1 left!

0

9

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

10

Kohler 24 393 55-S

PUMP, FUEL (PULSE)-(#2539326S)

$

$

Not available

11

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

12

Kohler 32 326 08-S

HOSE, PULSE PUMP(STEEL COVERS)

$3.99

$

In Stock, only 4 left!

0

15

Kohler M-651040-S

SCREW, FLG M6X1.0X40

$2.49

$

In Stock, Qty 12

0

39

Kohler 24 086 05-S

SCREW, THROTTLE STOP

$4.99

$

Usually ships in 2-5 days

0

42

Kohler 24 164 277-S

INTAKE MANIFOLD W/GASKETS

$67.99

$

In Stock, only 1 left!

0

43

Kohler 24 153 37-S

O-RING, INTAKE PORT

$3.99

$

Usually ships in 2-5 days

0

44

Kohler 24 041 91-S

GASKET, CARBURETOR (PIM, CV)

$5.49

$

In Stock, Qty 7

0

46

Kohler 16 853 49-S

KIT,CARB (NIKKI)

$145.99

$

In Stock, only 1 left!

0

NI

Kohler 16 755 14-S

KIT, HIGH ALT (19MM) NIKKI G-TYPE TWIN

$13.99

$

Usually ships in 2-5 days

0

NI

Kohler 16 757 01-S

KIT, OVERHAUL NIKKI G-TYPE TWIN

$22.99

$

Usually ships in 2-5 days

0

NI

Kohler 16 757 02-S

KIT, BOWL WITH O-RINGS NIKKI G-TYPE TWIN

$21.99

$

In Stock, only 1 left!

0

NI

Kohler 16 757 03-S

KIT, FLOAT AND NEEDLE NIKKI G-TYPE TWIN

$33.99

$

In Stock, only 1 left!

0

NI

Kohler 16 757 05-S

KIT,CHOKEREPAIR(SELF REL.)NIKKI G-TYPE T

$

$

Not available

NI

Kohler 16 757 08-S

KIT,THROTTLE SHAFT(19MM)NIKKI G-TYPETWIN

$

$

Not available
