KT17-24323 - Kohler Series II K-Series Engine, Made for Wheel Horse, 17hp, 12.7kW Ignition Parts Diagram

Series II K-Series Engine, Made for Wheel Horse, 17hp, 12.7kW

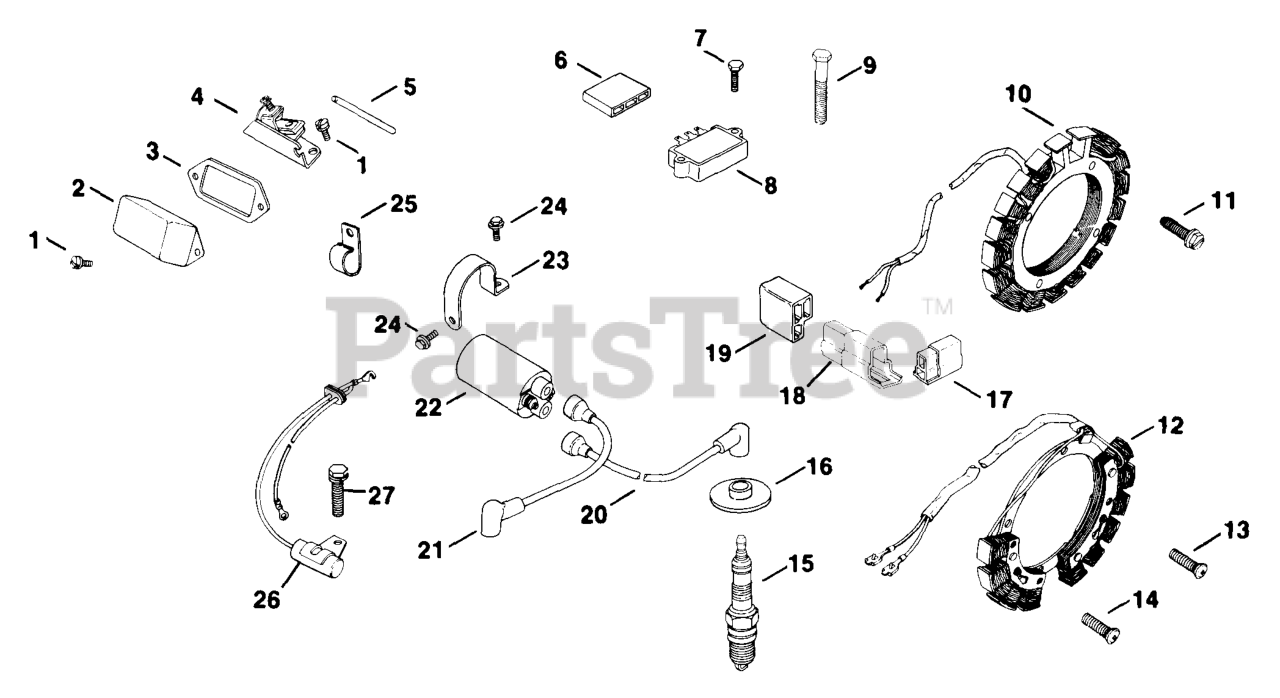

Ignition Parts Diagram

  • Title

1

Kohler X-131-1-S

SCREW - DISCONTINUED

$

$

Not available

2

Kohler 51 096 02-S

COVER - (#DSC)

$

$

Not available

3

Kohler 220174

GASKET - USE 52 041 11
(Superseded to 52 041 11)

Note: Replaced by 5204111

$3.49

$

In Stock, only 3 left!

0

4

Kohler 52 150 02

BREAKER - USE 47 150 03
(Superseded to 47 150 03-S)

Note: Replaced by 4715003

$23.99

$

In Stock, only 1 left!

0

5

Kohler 52 411 01

ROD - USE 52 411 05
(Superseded to 52 411 05)

$62.99

$

Usually ships in 2-5 days

0

12

Kohler 45 085 02-S

USE 45 755 18-S STATOR KIT
(Superseded to 45 755 18-S)

$

$

Not available

13

Kohler X-678-4

Screw, fillister hd. 10-24 x 7/16

$

$

Not available

14

Kohler X-678-5

Screw, fillister hd. 10-24 x 15/16

$

$

Not available

15

Kohler 51 132 02

SPARK PLUG - USE 52 132 02
(Superseded to 52 132 02)

$17.99

$

Usually ships in 2-5 days

0

19

Kohler 236473-S

CONNECTOR

$7.49

$

Usually ships in 2-5 days

0

20

Kohler 52 348 02

KIT - USE 52 755 49
(Superseded to 52 755 49)

$64.99

$

Usually ships in 2-5 days

0

21

Kohler 52 348 01

KIT - USE 52 755 49
(Superseded to 52 755 49)

$64.99

$

Usually ships in 2-5 days

0

22

Kohler 51 145 01

COIL - USE 52 145 02
(Superseded to 52 755 48)

Note: Replaced by 5214502

$424.99

$

Usually ships in 2-5 days

0

23

Kohler 52 445 01

STRAP - USE 52 445 03
(Superseded to 52 445 03-S)

Note: Replaced by 5244503

$

$

Not available

24

Kohler X-678-3

Screw, tapping 1/4-20 x 7/16

$

$

Not available

25

Kohler 48 154 02-S

CLIP

$16.99

$

Usually ships in 2-5 days

0

26

Kohler 52 755 13-S

KIT, CONDENSER - DISCONTINUED
(Superseded to 52 147 01-S)

Note: Before Serial No. 11261523 . Includes 26

$

$

Not available

26

Kohler 52 147 01-S

USE 52 755 13-S CONDENSER KIT
(Superseded to 52 755 13-S)

Note: After Serial No. 11261522 . Includes 26

$

$

Not available

27

Kohler X6762

Screw, hex. washer hd. 1/4-20 x 3/4

Note: Use only after Serial No. 11261522

$

$

Not available

2551807

Kohler 25 518 07

Lead, coil
(Superseded to 25 518 07-S)

Note: 10"-14 gauge-push on tab and insulated barrel eyelet terminals

$

$

Not available
