KT17-24323 - Kohler Series II K-Series Engine, Made for Wheel Horse, 17hp, 12.7kW Crankcase 0223002797 Parts Diagram

Series II K-Series Engine, Made for Wheel Horse, 17hp, 12.7kW

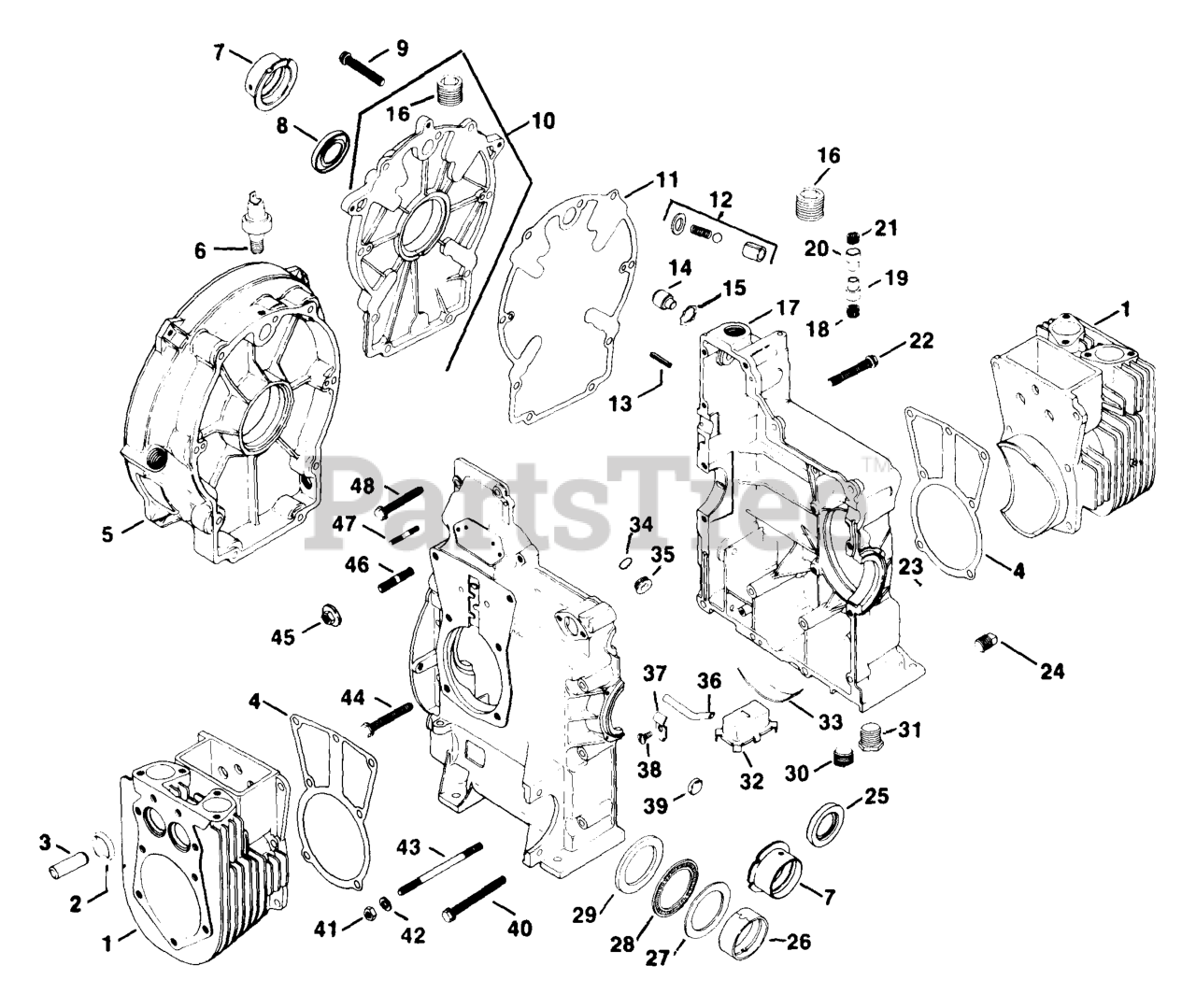

Crankcase 0223002797 Parts Diagram

  • Title

1

Kohler 52 565 27

BARREL - USE 52 755 51
(Superseded to 52 755 81)

Note: Includes 2 & 3

$

$

Not available

2

Kohler 230265-S

INSERT

$

$

Not available

3

Kohler 52 316 06

GUIDE - USE 52 316 08
(Superseded to 52 316 08)

$

$

Not available

4

Kohler 52 041 04-S

GASKET

$9.99

$

Usually ships in 2-5 days

0

7

Kohler 52 030 10-S

BEARING

$120.99

$

Usually ships in 2-5 days

0

7

Kohler 52 030 11-S

BEARING .010

$240.99

$

Usually ships in 2-5 days

0

7

Kohler 52 030 12-S

BEARING .020

$

$

Not available

8

Kohler X-583-5-S

SEAL

$22.99

$

In Stock, only 1 left!

0

9

Kohler X-802-9-S

SCREW, WSH HD 5/16-18X1" - DISCONTINUED

$

$

Not available

10

Kohler 52 755 42

KIT - USE 52 755 56
(Superseded to 52 755 56-S)

$

$

Not available

11

Kohler 52 041 08

GASKET - USE 52 041 15
(Superseded to 52 041 15)

$13.99

$

In Stock, Qty 5

0

12

Kohler 52 755 33

KIT - USE 52 755 50
(Superseded to 52 755 50-S)

$

$

Not available

13

Kohler X-280-10-S

PIN

$3.49

$

Usually ships in 2-5 days

0

14

Kohler 52 078 02

SHAFT - USE 52 078 05
(Superseded to 52 078 05-S)

$

$

Not available

15

Kohler X-269-43-S

RING

$3.99

$

Usually ships in 2-5 days

0

16

Kohler 52 139 07-S

PLUG - DISCONTINUED

$

$

Not available

17

Crankcase

Note: Service with a SHORT BLOCK. Refer toKT17-KT19 Series II Selection Guide TP-2166

$

$

Not available

22

Kohler X-802-8

SCREW - USE 25 086 12
(Superseded to 25 086 12-S)

$5.99

$

Usually ships in 2-5 days

0

24

Kohler X-751-0

Plug, solid sq. hd. 3/8

$

$

Not available

25

Kohler 52 032 10-S

SEAL

$23.99

$

In Stock, only 1 left!

0

26

Kohler 52 030 14

BEARING - DISCONTINUED

$

$

Not available

26

Kohler 52 030 15-S

BEARING - DISCONTINUED

$

$

Not available

26

Kohler 52 030 16-S

BEARING - (#DSC)

$

$

Not available

27

Kohler 52 468 09-S

WASHER - DISCONTINUED

$

$

Not available

28

Kohler 52 030 13-S

BEARING - DISCONTINUED

$

$

Not available

29

Kohler 52 144 04

Washer, thrust

$

$

Not available

30

Kohler X-753-2

Plug, hex. ctsk. 3/8

$

$

Not available

32

Kohler 52 095 03

KIT - USE 82 755 29
(Superseded to 82 755 29-S)

$32.99

$

Usually ships in 2-5 days

0

33

Kohler 52 237 02-S

CLAMP - DISCONTINUED

$

$

Not available

34

Kohler 52 141 02-S

O-RING - DISCONTINUED

$

$

Not available

35

Kohler 52 139 08-S

PLUG

$

$

Not available

36

Kohler 52 123 10

KIT - USE 82 755 29
(Superseded to 82 755 29-S)

$32.99

$

Usually ships in 2-5 days

0

37

Kohler 52 237 04-S

CLAMP - DISCONTINUED

$

$

Not available

38

Kohler X-676-4

Screw

$

$

Not available

39

Kohler X-702-15-S

PLUG, CUP USE 25 139 46-S
(Superseded to 25 139 46-S)

$2.99

$

Usually ships in 2-5 days

0

40

Kohler X-802-7

SCREW - USE 25 086 11
(Superseded to 25 086 11-S)

$6.99

$

In Stock, only 1 left!

0

41

Kohler X-822

Nut, hex. 5/16-18
(Superseded to X-82-2-S)

$3.49

$

Usually ships in 2-5 days

0

42

Kohler 41 468 01-S

WASHER

$4.49

$

Usually ships in 2-5 days

0

43

Kohler X-352-33

SCREW - USE 25 086 11
(Superseded to 25 086 11-S)

$6.99

$

In Stock, only 1 left!

0

44

Kohler X-802-10

SCREW - USE 25 086 13
(Superseded to 25 086 13-S)

$

$

Not available

45

Kohler 52 100 03

NUT - DISCONTINUED

$

$

Not available

46

Kohler 52 072 01-S

STUD DISCONTINUED

$

$

Not available

48

Kohler X-802-6

SCREW - USE 25 086 10
(Superseded to 25 086 10-S)

$

$

Not available
