KT17-24323 - Kohler Series II K-Series Engine, Made for Wheel Horse, 17hp, 12.7kW Carburetor Parts Diagram

Series II K-Series Engine, Made for Wheel Horse, 17hp, 12.7kW

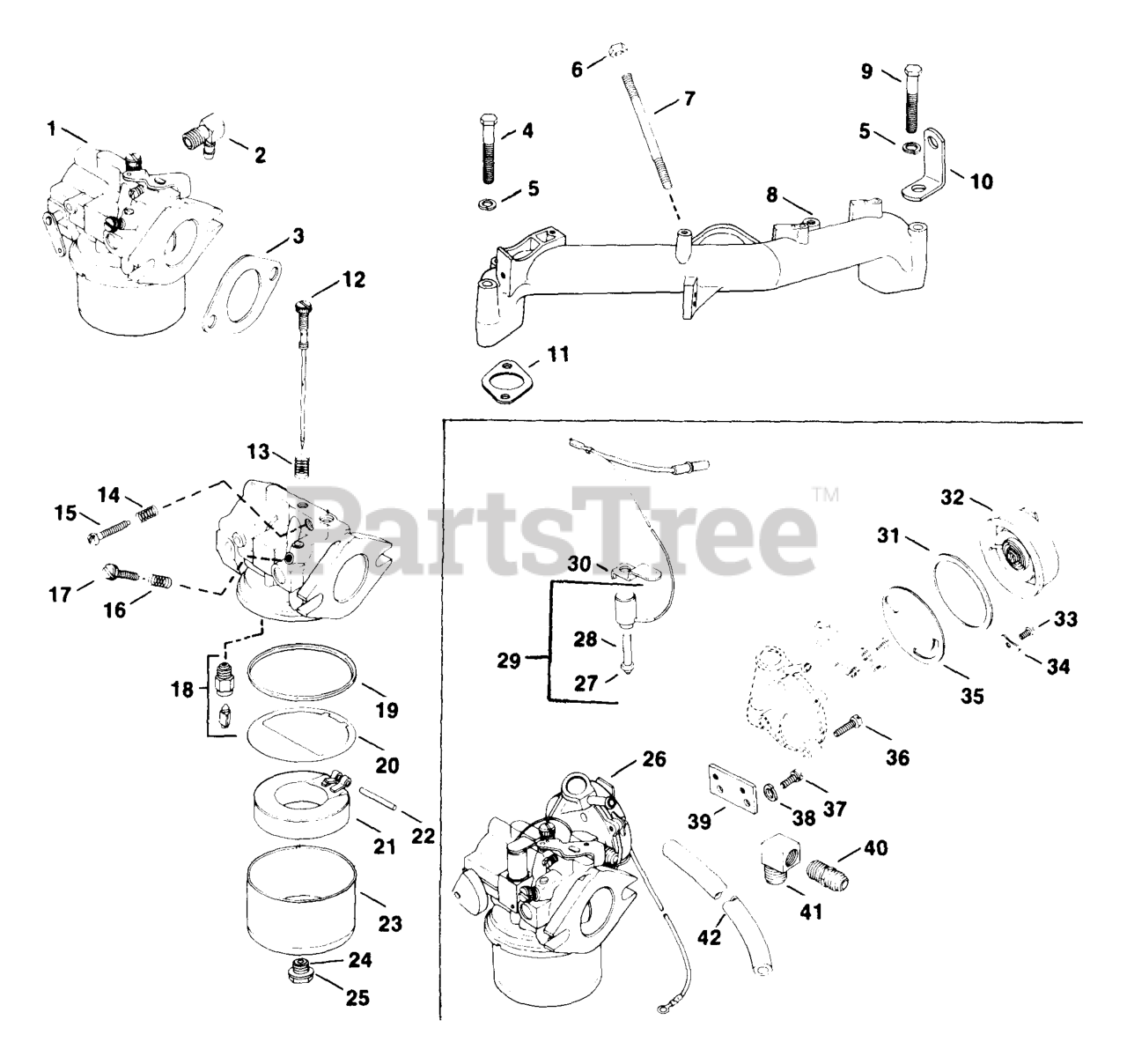

Carburetor Parts Diagram

  • Title

1

Kohler 52 053 18

DISCONTINUED - USE 52 853 30-S
(Superseded to 52 853 30-S)

Note: Includes 12 thru 25

$

$

Not available

2

Kohler X-391-1

HOSE - USE 25 155 02
(Superseded to 25 155 02-S)

Note: Replaced by 2515502

$14.99

$

In Stock, only 1 left!

0

3

Kohler 271030-S

GASKET, CARBURETOR

$7.49

$

Usually ships in 2-5 days

0

4

Kohler X-68

Screw, H.C. 5/16-18 x 2-3/4
(Superseded to X-6-8-S)

$2.49

$

Usually ships in 2-5 days

0

5

Kohler X-211

Washer, lock 5/16
(Superseded to X-21-1-S)

$3.99

$

In Stock, only 3 left!

0

6

Kohler X-772

Nut, hex. jam 5/16-18
(Superseded to X-77-2-S)

$3.49

$

Usually ships in 2-5 days

0

7

Kohler X-352-37-S

STUD, 5/16-18X1" USE 25 072 06-S
(Superseded to 25 072 06-S)

$

$

Not available

8

Kohler 52 164 01

MANIFOLD - USE 52 164 06
(Superseded to 52 164 10-S)

Note: Replaced by 5216406

$

$

Not available

9

Kohler X-654

Screw, H.C. 5/16-18 x 2-7/8
(Superseded to X-68)

$2.49

$

Usually ships in 2-5 days

0

10

Kohler 52 445 02-S

STRAP - DISCONTINUED

$

$

Not available

11

Kohler 52 041 09-S

GASKET

$13.99

$

Usually ships in 2-5 days

0

12

Kohler 52 103 01-S

NEEDLE - DISCONTINUED

$

$

Not available

13

Kohler 200383-S

SPRING

$6.49

$

In Stock, only 1 left!

0

14

Kohler 232555-S

SPRING

$10.99

$

Usually ships in 2-5 days

0

15

Kohler 232556-S

SCREW, SPECIAL

$8.49

$

Usually ships in 2-5 days

0

16

Kohler 200380-S

SPRING-(#DSC)

$8.49

$

Usually ships in 2-5 days

0

17

Kohler 277210-S

SCREW - DISCONTINUED

$

$

Not available

18

Fuel inlet needle & seat

Note: Available only in carburetor repair kit 2575702

$

$

Not available

19

Kohler 200375-S

GASKET

Note: Included in carburetor repair kit 2575702

$7.99

$

Usually ships in 2-5 days

0

20

Kohler 25 041 02

Gasket, bowl baffle
(Superseded to 25 041 02-S)

$8.49

$

In Stock, Qty 5

0

21

Kohler 25 757 03

Float Kit
(Superseded to 25 757 03-S)

Note: Includes #20

$

$

Not available

22

Kohler 200376-S

PIN

Note: Included in carburetor repair kit 2575702

$6.49

$

Usually ships in 2-5 days

0

23

Kohler 235448-S

BOWL

$24.99

$

Usually ships in 2-5 days

0

24

Kohler 47 100 06-S

NUT - DISCONTINUED

$

$

Not available

25

Kohler 200372-S

GASKET

$3.49

$

In Stock, only 1 left!

0

26

Kohler 25 757 02

Kit, carburetor repair
(Superseded to 25 757 02-S)

$

$

Not available
