KT17-24323 - Kohler Series II K-Series Engine, Made for Wheel Horse, 17hp, 12.7kW Air Intake 1-15-1 Parts Diagram

Series II K-Series Engine, Made for Wheel Horse, 17hp, 12.7kW

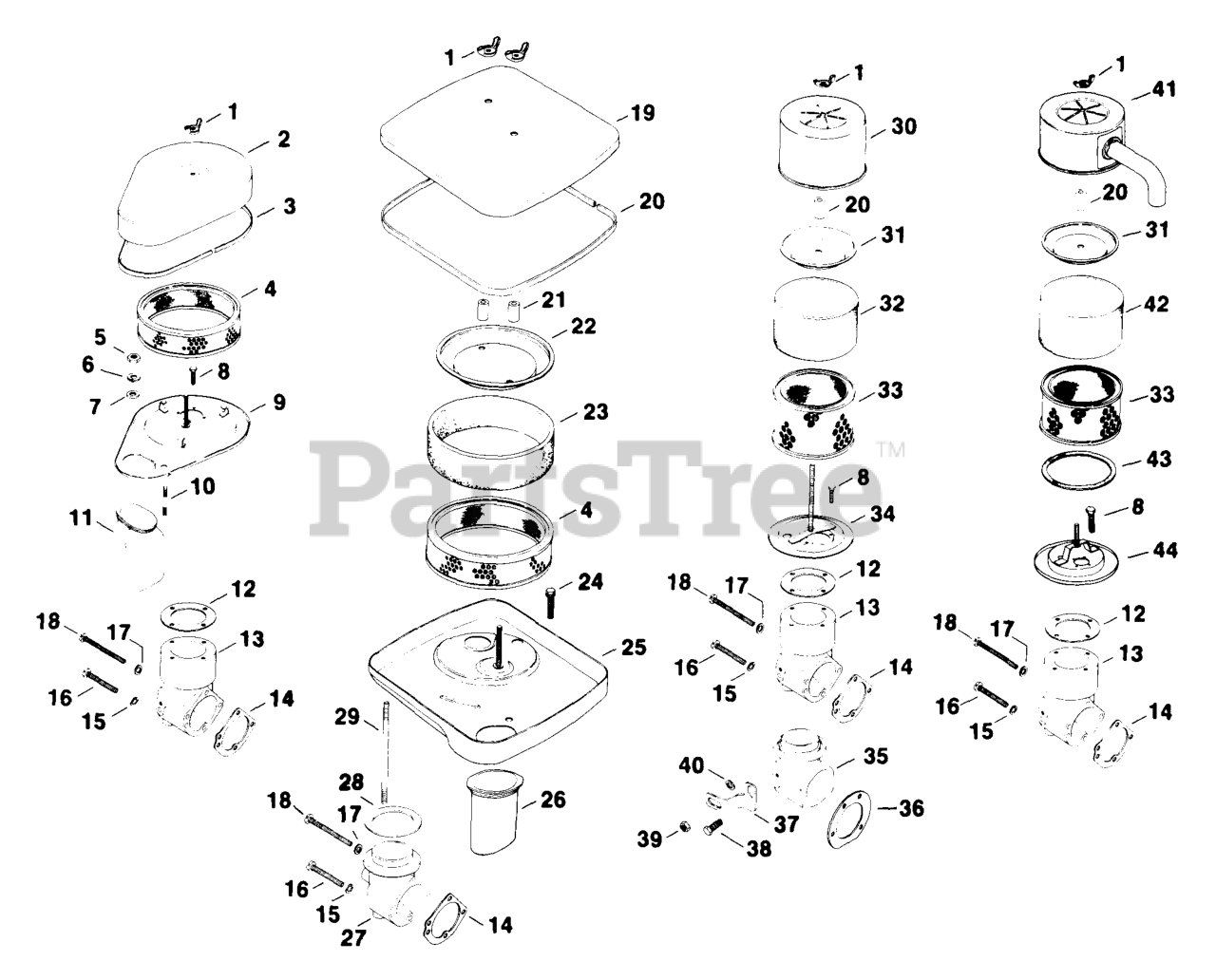

Air Intake 1-15-1 Parts Diagram

  • Title

1

Kohler X-276-7-S

NUT, WING 1/4-20 USE 25 100 15-S
(Superseded to 25 100 15-S)

$

$

Not available

4

Kohler 47 083 01-S1

USE 47 883 01-S1 FILTER
(Superseded to 47 883 01-S1)

$27.99

$

In Stock, Qty 11

0

14

Kohler 277069

GASKET - USE 25 041 06
(Superseded to 25 041 06)

$3.49

$

In Stock, only 2 left!

0

15

Kohler X-22-9-S

WASHER, INT TOOTH LOCK #10

$3.99

$

In Stock, only 1 left!

0

16

Kohler X-50-57-S

SCREW, SLT PAN HD 10-32X1 1/2" USE 25 086 63-S
(Superseded to 25 086 63-S)

$

$

Not available

17

Kohler X-25-79-S

WASHER, FLAT 3/16"

$3.99

$

In Stock, only 2 left!

0

18

Kohler X-50-37-S

SCREW, SLT PAN HD 10-32X2 1/4"

$3.99

$

In Stock, only 4 left!

0

19

Kohler 52 082 02-S

COVER - (#DSC)

$

$

Not available

20

Kohler 52 032 01-S

SEAL, AIR CLEANER - (#DSC)

$

$

Not available

24

Kohler X-67-83-S

SCREW, WSH HD TAP 1/4-20X7/16" USE 25 086 106-S
(Superseded to 25 086 106-S)

$2.49

$

In Stock, only 1 left!

0

25

Kohler 52 201 04

BASE - USE 52 201 07
(Superseded to 52 201 07-S)

Note: Replaced by 52 201 07-S

$

$

Not available

26

Kohler 47 134 02-S

TUBE

$49.99

$

Usually ships in 2-5 days

0

27

Kohler 52 054 16

ELBOW - USE 52 754 03
(Superseded to 52 754 03-S)

$

$

Not available

28

Kohler 52 055 04-S

GASKET

$11.99

$

Usually ships in 2-5 days

0

29

Kohler X-352-38-S

STUD,1/4-20x4-3/4" USE 25 072 10-S
(Superseded to 25 072 10-S)

$5.99

$

In Stock, only 1 left!

0
