KS595-3015 - Kohler 5400 Series Engine, Made for MTD, 19.5hp, 14.5kW 04 CylinderHead/Breather Parts Diagram

5400 Series Engine, Made for MTD, 19.5hp, 14.5kW

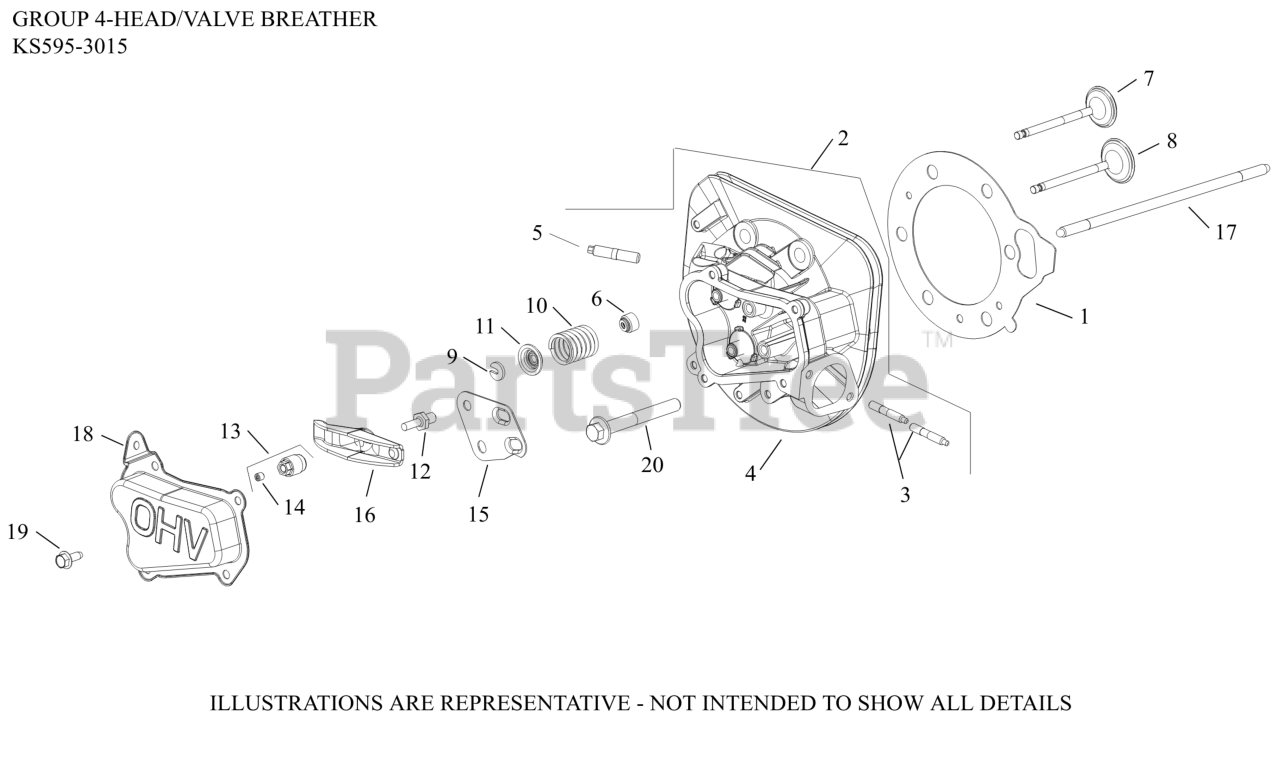

04 CylinderHead/Breather Parts Diagram

  • Title

1

Kohler 22 041 04-S

GASKET, CYLINDER HEAD

$5.49

$

Usually ships in 2-5 days

0

2

Kohler 22 318 03-S

HEAD ASSY (STUD INSTALLATION)

$

$

Not available

3

Kohler 22 072 02-S

STUD, INTAKE MANIFOLD

$4.99

$

Usually ships in 2-5 days

0

4

Kohler 22 318 02-S

HEAD, CLYLINDER-USE 22 318 03-S
(Superseded to 22 318 03-S)

$

$

Not available

5

Kohler 25 072 30-S

STUD, EXHAUST-USE 25 072 36-S
(Superseded to 25 072 36-S)

$2.49

$

In Stock, Qty 20+

0

6

Kohler 20 032 10-S

SEAL, VALVE STEM

$5.49

$

In Stock, Qty 8

0

7

Kohler 22 016 01-S

VALVE, EXHAUST

$13.99

$

In Stock, only 1 left!

0

8

Kohler 22 017 01-S

VALVE, INTAKE

$17.99

$

Usually ships in 2-5 days

0

9

Kohler 22 062 01-S

LOCK, RETAINER

$2.49

$

In Stock, only 2 left!

0

10

Kohler 22 089 03-S

SPRING, VALVE

$

$

Not available

11

Kohler 22 173 02-S

CAP, VALVE SPRING

$2.49

$

In Stock, only 2 left!

0

12

Kohler 20 072 08-S

STUD, ROCKER

$2.49

$

In Stock, only 2 left!

0

13

Kohler 20 599 03-S

PIVOT, ROCKER ARM-USE 20 599 04-S
(Superseded to 20 599 04-S)

$6.49

$

In Stock, only 4 left!

0

13

Kohler 20 599 04-S

ROCKER PIVOT ASSY

$6.49

$

In Stock, only 4 left!

0

14

Kohler 20 086 04-S

SCREW, SET

$2.99

$

In Stock, only 2 left!

0

15

Kohler 22 146 02-S

PLATE, PUSHROD GUIDE

$2.49

$

In Stock, only 2 left!

0

16

Kohler 22 186 02-S

ARM, ROCKER

$8.49

$

In Stock, only 4 left!

0

17

Kohler 22 411 02-S

ROD, PUSH

$

$

Not available

18

Kohler 22 096 02-S

COVER, VALVE

$4.99

$

In Stock, only 1 left!

0

19

Kohler 25 086 685-S

SCREW, THREAD FORMING

$

$

Not available

20

Kohler 25 086 670-S

SCREW, HEX FLANGE

$2.49

$

In Stock, only 3 left!

0
