KS595-3014 - Kohler 5400 Series Engine, Made for MTD, 19.5hp, 14.5kW 03 Lubrication Parts Diagram

5400 Series Engine, Made for MTD, 19.5hp, 14.5kW

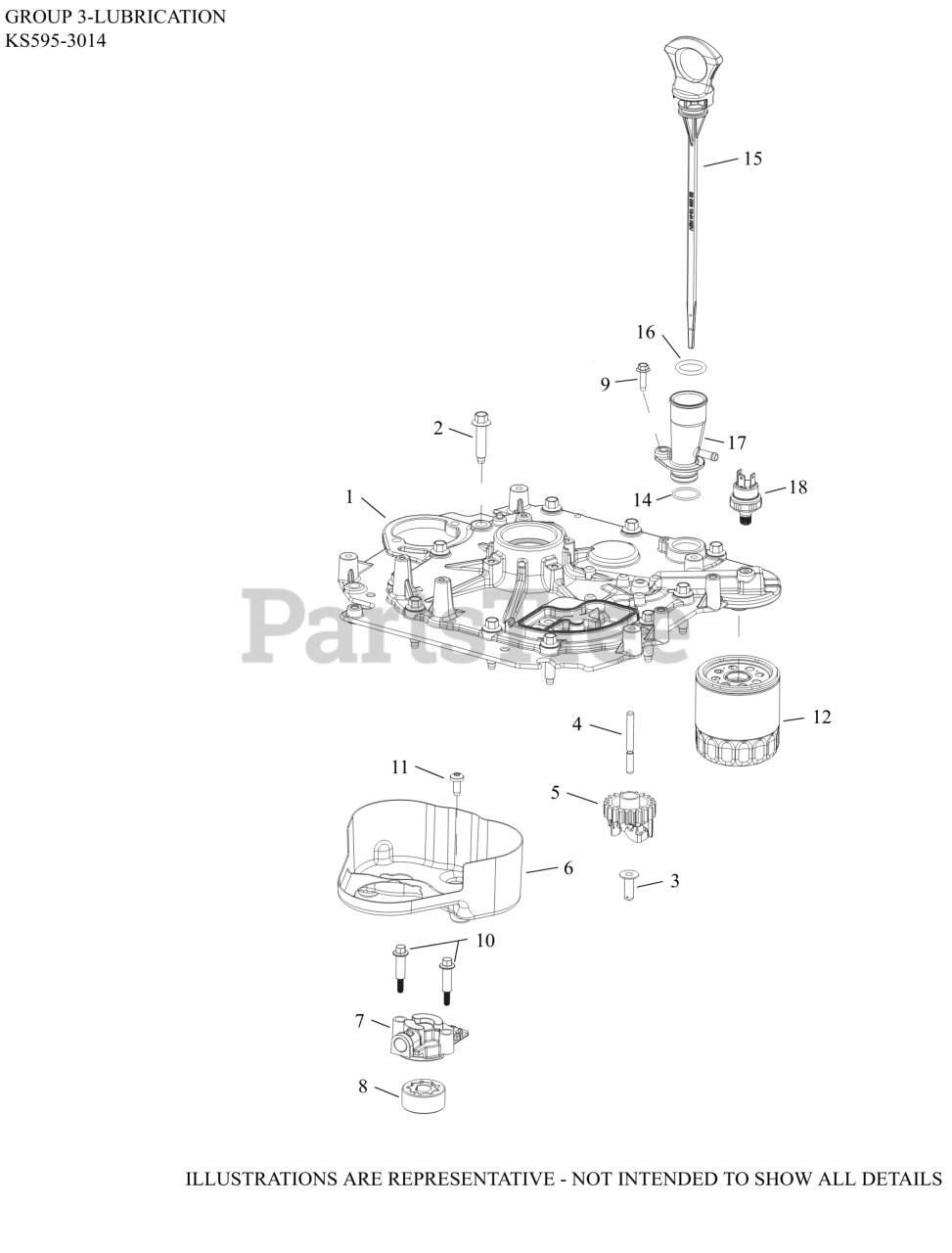

03 Lubrication Parts Diagram

  • Title

1

Kohler 22 009 04-S

PLATE, CLOSURE ASSY

$178.99

$

In Stock, only 1 left!

0

2

Kohler 25 086 692-S

SCREW, HEX FLANGE

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 8

0

4

Kohler 20 144 03-S

SHAFT, GOVERNOR CROSS

$2.49

$

In Stock, only 3 left!

0

5

Kohler 25 310 09-S

KIT, GOVERNOR GEAR

$13.99

$

In Stock, only 2 left!

0

6

Kohler 22 063 05-S

BAFFLE, OIL

$8.49

$

Usually ships in 2-5 days

0

7

Kohler 22 081 12-S

HOUSING, OIL PUMP ASSY

$18.99

$

Usually ships in 2-5 days

0

8

Kohler 22 393 01-S

PUMP ASSY, OIL

$26.99

$

Usually ships in 2-5 days

0

9

Kohler 25 086 399-S

SCREW, THD FRM-USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 19

0

10

Kohler 25 086 722-S

SCREW, SHOULDER THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 25 086 724-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

14

Kohler 12 153 07-S

O-RING

$2.49

$

In Stock, Qty 10

0

15

Kohler 32 038 14-S

DIPSTICK, ASSY

$9.49

$

In Stock, Qty 6

0

16

Kohler 25 153 09-S

O-RING

$3.49

$

In Stock, only 3 left!

0

17

Kohler 22 123 03-S

TUBE, DIPSTICK ASSY

$4.49

$

Usually ships in 2-5 days

0

18

Kohler 25 099 36-S

SENSOR, OIL PSI 3 TERMINAL

$

$

Not available

19

Kohler 12 032 03-S

SEAL, OIL

$

$

Not available
