KS590-3019 - Kohler 5400 Series Engine, Made for Viking, 19hp, 14.2kW 08 Fuel System Parts Diagram

5400 Series Engine, Made for Viking, 19hp, 14.2kW

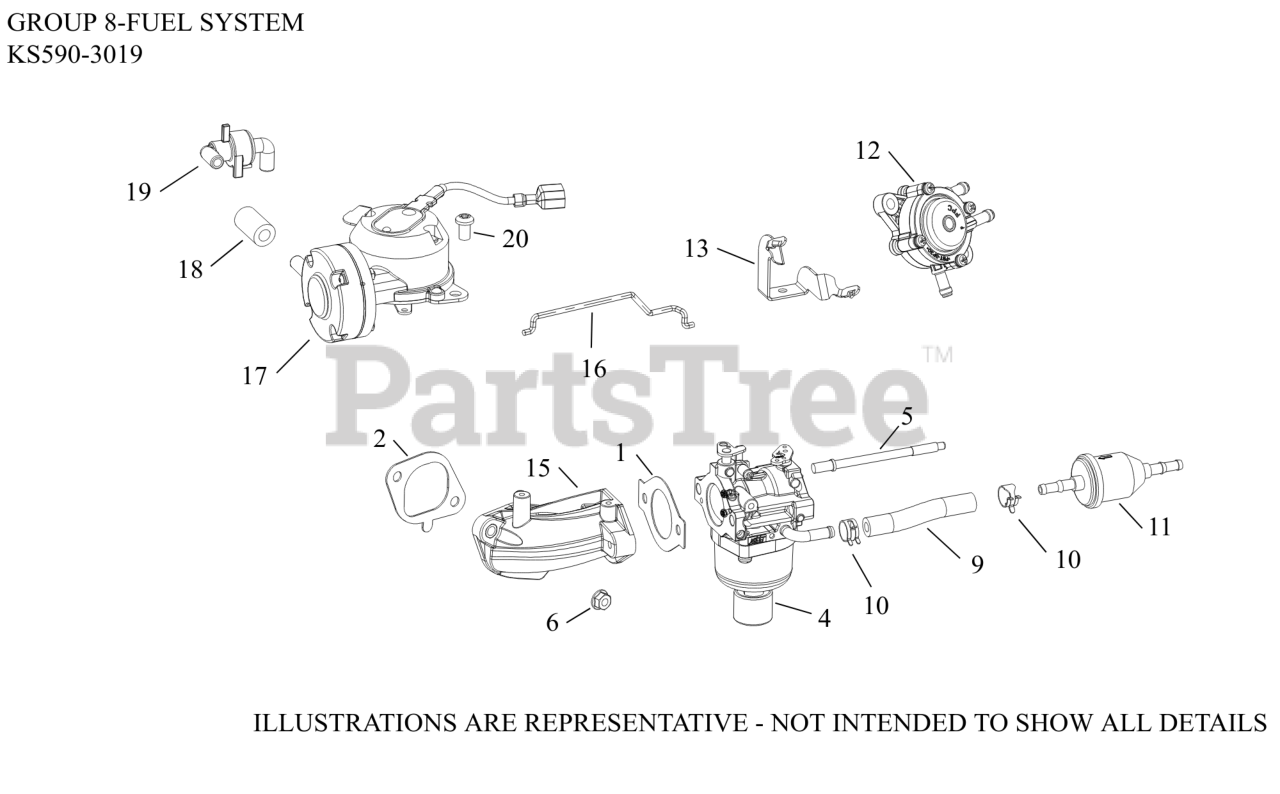

08 Fuel System Parts Diagram

  • Title
1

Kohler 22 041 11-S

GASKET, CARBURETOR (THROTTLE)

$2.49

$

In Stock, Qty 5

0

2

Kohler 22 041 12-S

GASKET, INTAKE MANIFOLD

$2.49

$

In Stock, Qty 6

0

4

Kohler 22 853 04-S

KIT,CARB(NIKKI)

$147.99

$

Usually ships in 2-5 days

0

5

Kohler 22 072 01-S

STUD, CARBURETOR
(Superseded to 25 072 35-S)

$2.49

$

Usually ships in 2-5 days

0

6

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

9

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

10

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 11

0

11

Kohler 25 050 22-S

FILTER,FUEL 51 MICRON (FUEL PUMP)

$8.99

$

In Stock, Qty 20+

0

12

Kohler 24 393 55-S

PUMP, FUEL (PULSE)-(#2539326S)

$

$

Not available

13

Kohler 22 126 04-S

BRACKET, FUEL PUMP

$2.99

$

In Stock, only 1 left!

0

15

Kohler 22 164 04-S

MANIFOLD, INTAKE ASSY

$

$

Not available

16

Kohler 22 079 04-S

LINKAGE, CHOKE

$2.99

$

Usually ships in 2-5 days

0

17

Kohler 22 268 01-S

DIAPHRAGM ASSY

$60.99

$

Usually ships in 2-5 days

0

18

Kohler 22 326 05-S

HOSE, VACUUM

$3.99

$

Usually ships in 2-5 days

0

19

Kohler 22 462 02-S

CHECK VALVE ASSY

$5.99

$

Usually ships in 2-5 days

0

20

Kohler 25 086 694-S

SCREW, K40 X 1.79 TFS

$2.49

$

Usually ships in 2-5 days

0

NI

Kohler 22 755 01-S

HIGH ALTITUDE KIT (5000 FT)

$32.99

$

Usually ships in 2-5 days

0

NI

Kohler 22 757 01-S

KIT, OVERHAUL

$25.99

$

In Stock, Qty 6

0

NI

Kohler 22 757 02-S

KIT, CHOKE SHAFT

$32.99

$

Usually ships in 2-5 days

0

NI

Kohler 22 757 03-S

KIT, O-RING

$9.99

$

In Stock, only 1 left!

0

NI

Kohler 22 757 04-S

KIT, SOLENOID (NIKKI)

$112.99

$

In Stock, only 1 left!

0

NI

Kohler 22 757 05-S

KIT, BOWL WITH O-RINGS

$24.99

$

Usually ships in 2-5 days

0

NI

Kohler 22 757 06-S

KIT, FLOAT & INLET NEEDLE FOR FUEL PUMP

$60.99

$

Usually ships in 2-5 days

0

NI

Kohler 22 757 08-S

KIT, THROTTLE SHAFT

$75.99

$

Usually ships in 2-5 days

0
