KS590-3017 - Kohler 5400 Series Engine, Made for Ariens, 19hp, 14.2kW 10 Air Intake Parts Diagram

5400 Series Engine, Made for Ariens, 19hp, 14.2kW

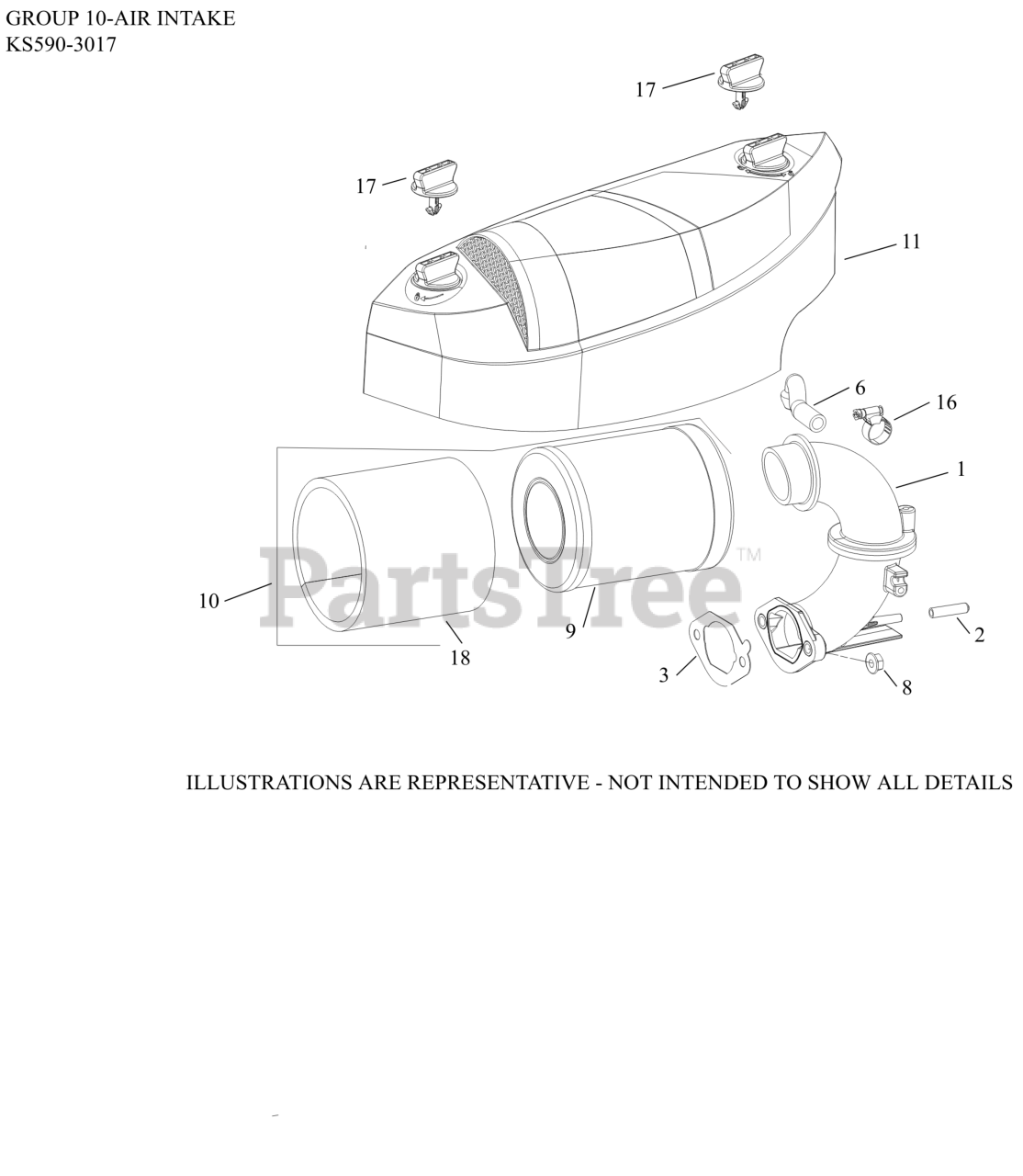

10 Air Intake Parts Diagram

  • Title
1

Kohler 22 029 01-S

ADAPTER, AIR CLEANER ASSY

$14.99

$

In Stock, only 1 left!

0

2

Kohler 25 173 09-S

CAP, MASKING

$2.49

$

In Stock, only 3 left!

0

3

Kohler 22 041 09-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 8

0

6

Kohler 22 326 04-S

HOSE, BREATHER

$6.99

$

In Stock, only 1 left!

0

8

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

9

Kohler 22 083 02-S

ELEMENT, AIR FILTER

$26.99

$

Usually ships in 2-5 days

0

10

Kohler 22 883 02-S1

AIR FILTER KIT (PRO)

$29.99

$

Usually ships in 2-5 days

0

11

Kohler 22 096 17-S

COVER, AIR CLEANER ASSEMBLY (PRO)

$17.99

$

Usually ships in 2-5 days

0

16

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

17

Kohler 22 341 02-S

KNOB, AIR CLEANER COVER

$11.99

$

In Stock, Qty 9

0

NI

Kohler 22 083 06-S

ELEMENT, PRE-CLEANER

$6.99

$

Usually ships in 2-5 days

0
