KS540-3014 - Kohler 5400 Series Engine, Made for MTD, 18hp, 13.4kW 02 CrankCase Parts Diagram

5400 Series Engine, Made for MTD, 18hp, 13.4kW

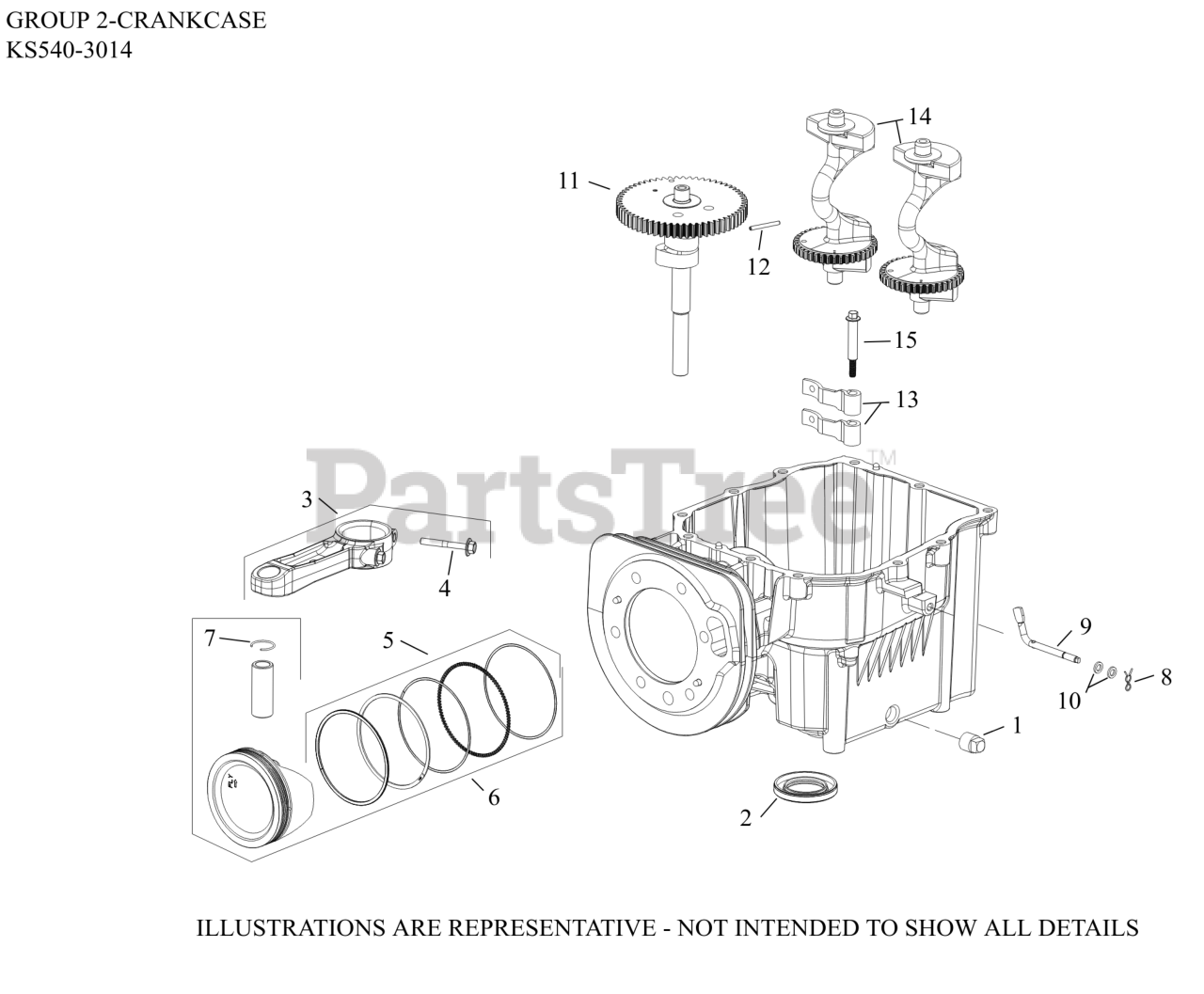

02 CrankCase Parts Diagram

  • Title

1

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, only 3 left!

0

2

Kohler 20 032 08-S

SEAL, OIL

$9.49

$

In Stock, Qty 11

0

3

Kohler 22 067 01-S

ROD, CONNECTING ASSEMBLY

$55.99

$

Usually ships in 2-5 days

0

4

Kohler 25 086 661-S

SCREW, HEX FLANGE REDUCED BODY (M6 X 47)
(Superseded to 25 086 677-S)

$2.49

$

In Stock, only 1 left!

0

5

Kohler 20 108 04-S

RING SET (94MM)

$63.99

$

Usually ships in 2-5 days

0

6

Kohler 22 874 01-S

KIT, PISTON, RINGS, PIN AND CLIPS

$66.99

$

Usually ships in 2-5 days

0

7

Kohler 62 018 04-S

RETAINER, PISTON PIN

$2.99

$

In Stock, only 3 left!

0

8

Kohler 12 154 05-S

CLIP, HITCH PIN

$2.49

$

Usually ships in 2-5 days

0

9

Kohler 20 144 02-S

SHAFT, GOVERNOR CROSS

$14.99

$

In Stock, only 1 left!

0

10

Kohler M-631015-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, Qty 7

0

11

Kohler 22 010 06-S

CAMSHAFT ASSEMBLY

$97.99

$

In Stock, only 1 left!

0

12

Kohler X-280-10-S

PIN

$3.49

$

Usually ships in 2-5 days

0

13

Kohler 22 090 13-S

LEVER, CAM

$4.99

$

In Stock, only 2 left!

0

14

Kohler 22 144 05-S

SHAFT, PRIMARY BALANCE

$49.99

$

Usually ships in 2-5 days

0

15

Kohler 25 086 700-S

SCREW, HEX FLANGE SHOULDER (M6)

$2.49

$

In Stock, only 3 left!

0
