KS540-3011 - Kohler 5400 Series Engine, Made for MTD, 18hp, 13.4kW 08 Fuel System Parts Diagram

5400 Series Engine, Made for MTD, 18hp, 13.4kW

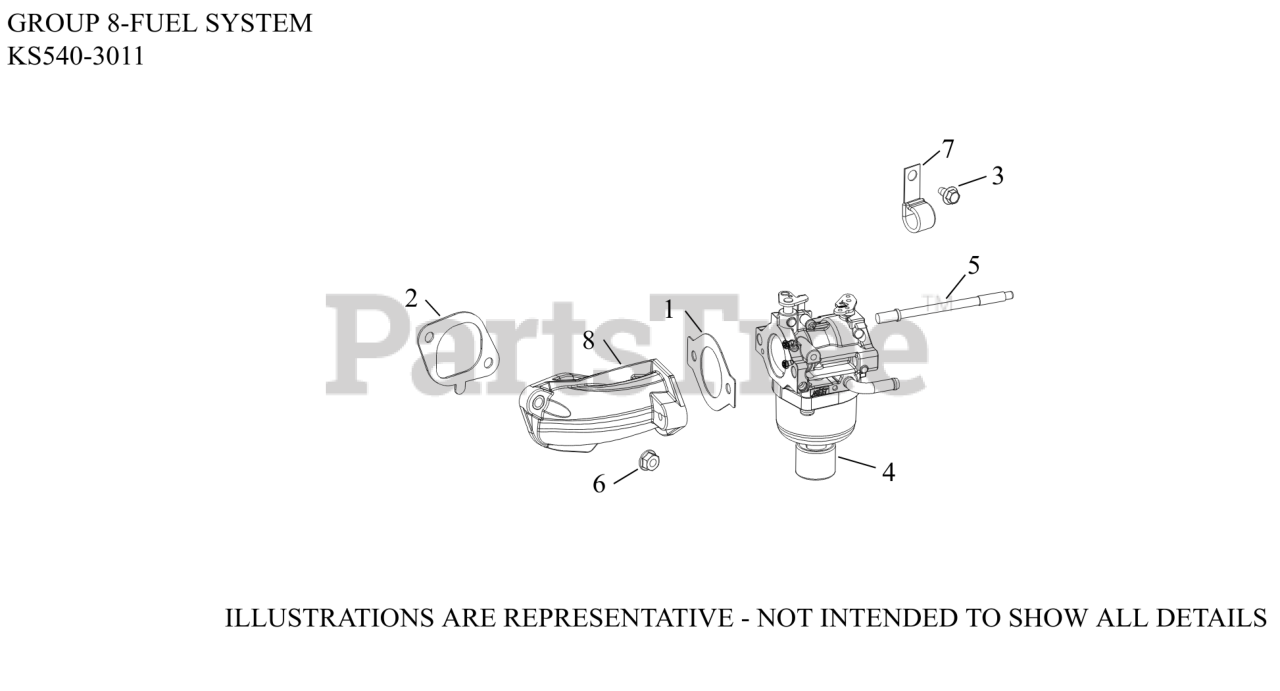

08 Fuel System Parts Diagram

  • Title

1

Kohler 22 041 11-S

GASKET, CARBURETOR (THROTTLE)

$2.49

$

In Stock, Qty 5

0

2

Kohler 22 041 12-S

GASKET, INTAKE MANIFOLD

$2.49

$

In Stock, Qty 6

0

3

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.99

$

In Stock, only 3 left!

0

4

Kohler 22 853 02-S

KIT,CARB(NIKKI)

$176.99

$

In Stock, Qty 8

0

5

Kohler 22 072 01-S

STUD, CARBURETOR
(Superseded to 25 072 35-S)

$2.49

$

In Stock, only 2 left!

0

6

Kohler M-641060-S

NUT, FLG M6X1.0

$4.99

$

In Stock, Qty 6

0

7

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 2 left!

0

8

Kohler 22 164 01-S

MANIFOLD, INTAKE ASSEMBLY

$15.99

$

In Stock, only 3 left!

0

NI

Kohler 22 755 01-S

HIGH ALTITUDE KIT (5000 FT)

$38.99

$

Usually ships in 2-5 days

0

NI

Kohler 22 757 01-S

KIT, OVERHAUL

$31.99

$

In Stock, only 2 left!

0

NI

Kohler 22 757 02-S

KIT, CHOKE SHAFT

$38.99

$

Usually ships in 2-5 days

0

NI

Kohler 22 757 03-S

KIT, O-RING

$11.99

$

In Stock, only 2 left!

0

NI

Kohler 22 757 04-S

KIT, SOLENOID (NIKKI)

$135.99

$

In Stock, only 1 left!

0

NI

Kohler 22 757 05-S

KIT, BOWL WITH O-RINGS

$29.99

$

Usually ships in 2-5 days

0

NI

Kohler 22 757 07-S

KIT, FLOAT AND INLET NEEDLE FOR GRAVITY

$72.99

$

Usually ships in 2-5 days

0

NI

Kohler 22 757 08-S

KIT, THROTTLE SHAFT

$90.99

$

Usually ships in 2-5 days

0

NI

Kohler 25 173 10-S

MASKING CAP

$2.49

$

Usually ships in 2-5 days

0
