KS540-3002 - Kohler 5400 Series Engine, Basic Version, 18hp, 13.4kW 05 Ignition/Charging Parts Diagram

5400 Series Engine, Basic Version, 18hp, 13.4kW

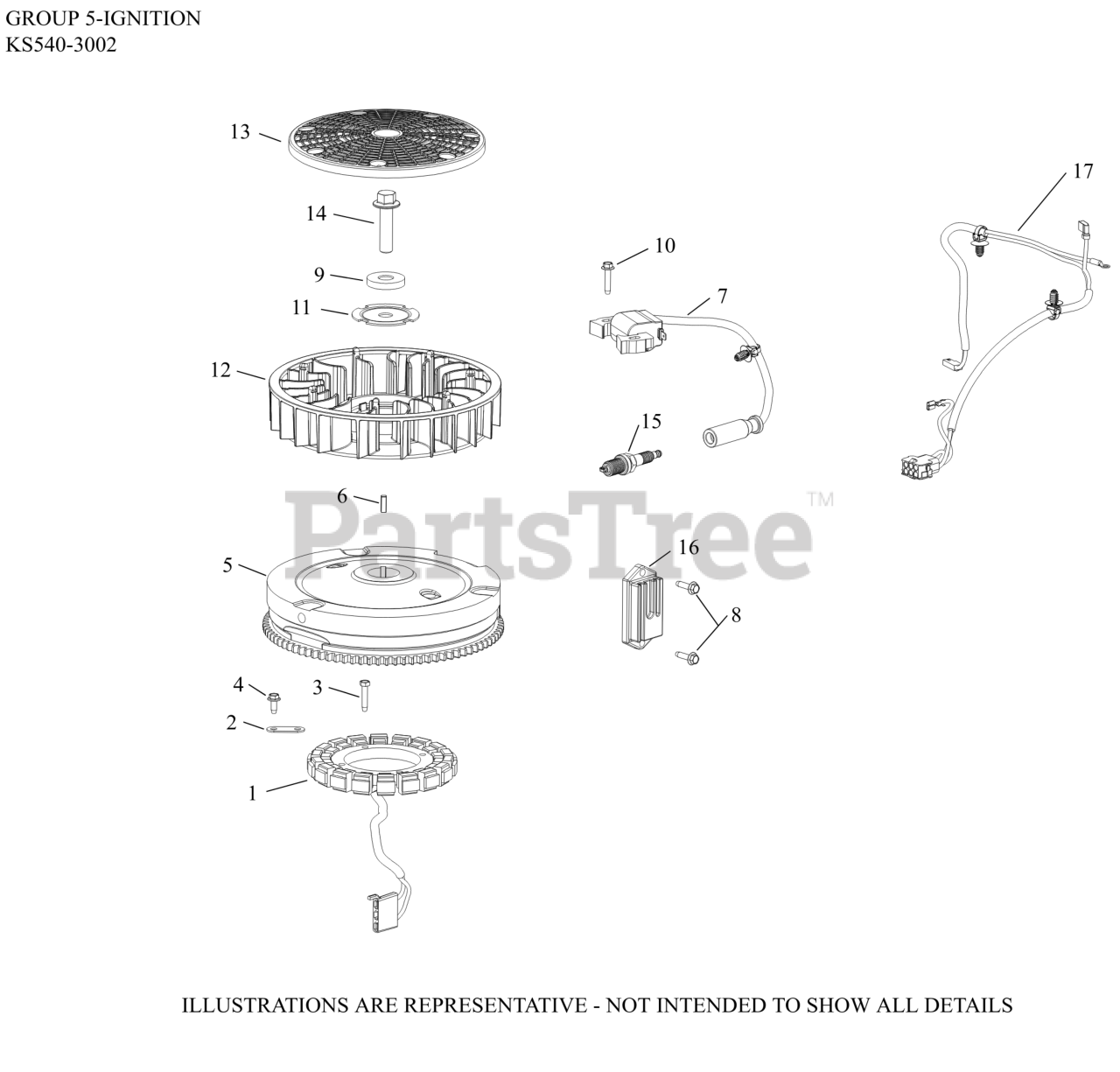

05 Ignition/Charging Parts Diagram

  • Title

1

Kohler 22 085 01-S

STATOR ASSY, 12A

$63.99

$

In Stock, only 1 left!

0

2

Kohler 22 154 01-S

CLIP, STATOR WIRE

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 25 086 402-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

4

Kohler M-545013-S

SCREW, FLG THD FRM M5X0.8X13

$2.49

$

In Stock, Qty 7

0

5

Kohler 22 025 07-S

FLYWHEEL, ASSY

$208.99

$

Usually ships in 2-5 days

0

6

Kohler 25 340 04-S

KEY, SQUARE

$3.99

$

In Stock, Qty 10

0

7

Kohler 22 584 01-S

MODULE, INDUCTIVE IGNITION COIL

$90.99

$

In Stock, only 1 left!

0

8

Kohler 25 086 399-S

SCREW, THD FRM-USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

9

Kohler 25 468 09-S

WASHER, FLAT

$6.49

$

In Stock, only 2 left!

0

10

Kohler 25 086 472-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

11

Kohler 20 146 05-S

PLATE, FAN MOUNTING

$2.99

$

In Stock, Qty 11

0

12

Kohler 22 157 02-S

FAN

$10.99

$

Usually ships in 2-5 days

0

13

Kohler 22 162 04-S

SCREEN, GRASS

$6.99

$

Usually ships in 2-5 days

0

14

Kohler 25 086 362-S

SCREW, HEX FLANGE

$3.99

$

In Stock, Qty 7

0

15

Kohler 14 132 11-S

PLUG SPARK 12MM RFI

$8.49

$

In Stock, Qty 20+

0

16

Kohler 25 403 35-S

REGULATOR/RECTIFIER 12/15A HALF-WAVE STD

$

$

Not available

17

Kohler 22 176 02-S

HARNESS, WIRING NON-OSU, NON MTD

$22.99

$

Usually ships in 2-5 days

0
