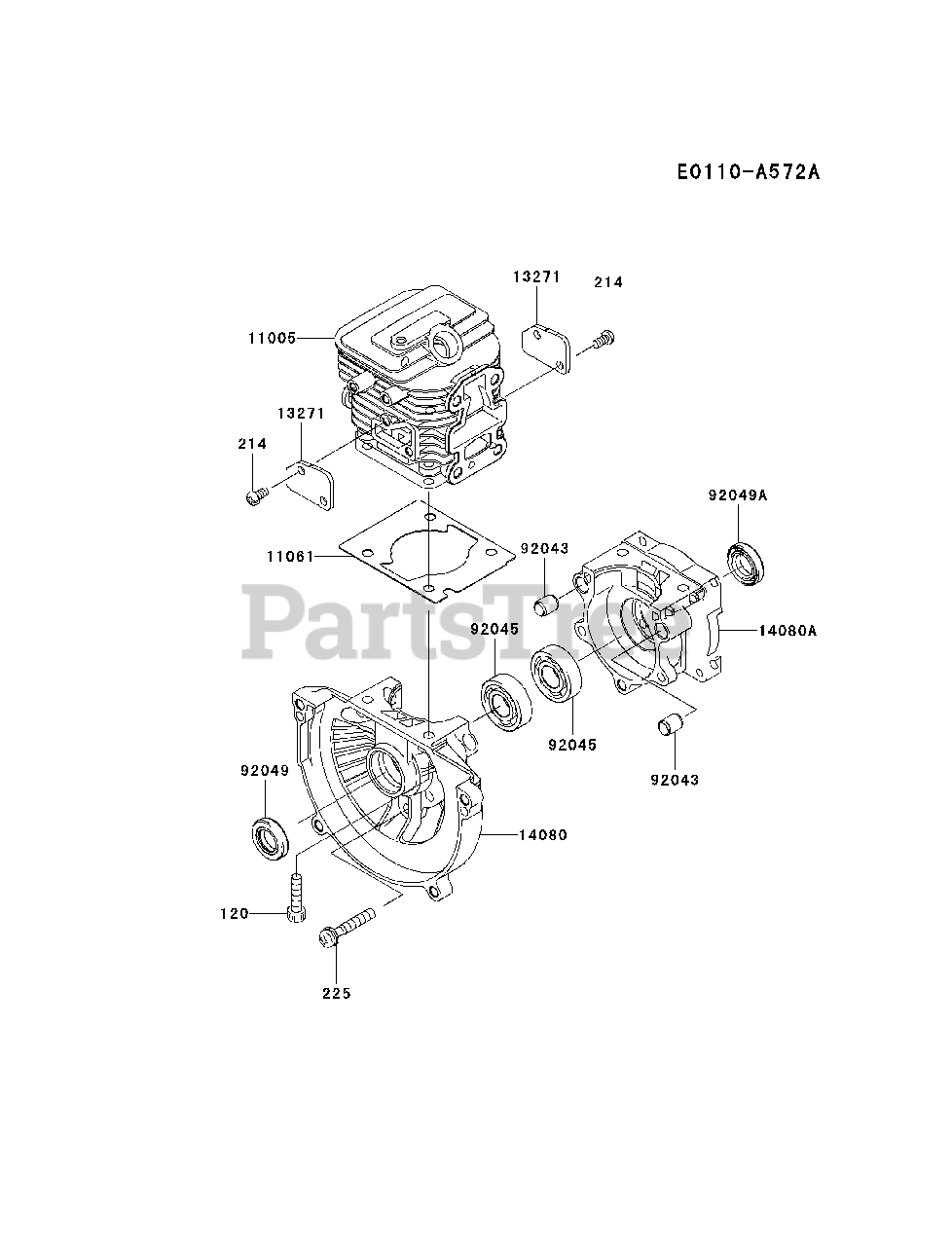

KRH 300 AC (KRH300AC-A1) - Kawasaki Blower CYLINDER/CRANKCASE Parts Diagram

Blower

CYLINDER/CRANKCASE Parts Diagram

  • Title
11005

Kawasaki 11005-2162

CYLINDER-ENGINE
(Superseded to 11005-0615)

$268.99

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-2169

GASKET,CYLINDER
(Superseded to 11061-2203)

$4.99

$

In Stock, only 1 left!

0

13271

Kawasaki 13271-2261

PLATE
(Superseded to 13272-2013)

$2.49

$

Usually ships in 2-5 days

0

14080

$

$

Not available

14080A

$

$

Not available

$1.49

$

Usually ships in 2-5 days

0

92045

Kawasaki 92045-2278

BEARING-BALL,6001C3

$19.99

$

Usually ships in 2-5 days

0

92049

Kawasaki 92049-2253

SEAL-OIL,ISCD12X22X4.5
(Superseded to 92049-2288)

$3.99

$

Usually ships in 2-5 days

0

92049A

Kawasaki 92049-2267

SEAL-OIL,ISCD 12X22X4.5F
(Superseded to 92049-2269)

$4.99

$

In Stock, Qty 8

0

120

Kawasaki 120CB0520

BOLT-SOCKET,5X20
(Superseded to 120S0520)

$2.49

$

In Stock, Qty 5

0

214

Kawasaki 214AA0408

SCREW-PAN+-,4X8
(Superseded to 214B0408)

$3.99

$

In Stock, Qty 11

0

225

Kawasaki 225AA0530

SCREW-PAN-WSP-CROS,5X30
(Superseded to 225B0530)

$0.99

$

Usually ships in 2-5 days

0
