KRB 750 B (KRB750B-A4) - Kawasaki Blower AIR-FILTER/MUFFLER Parts Diagram

Blower

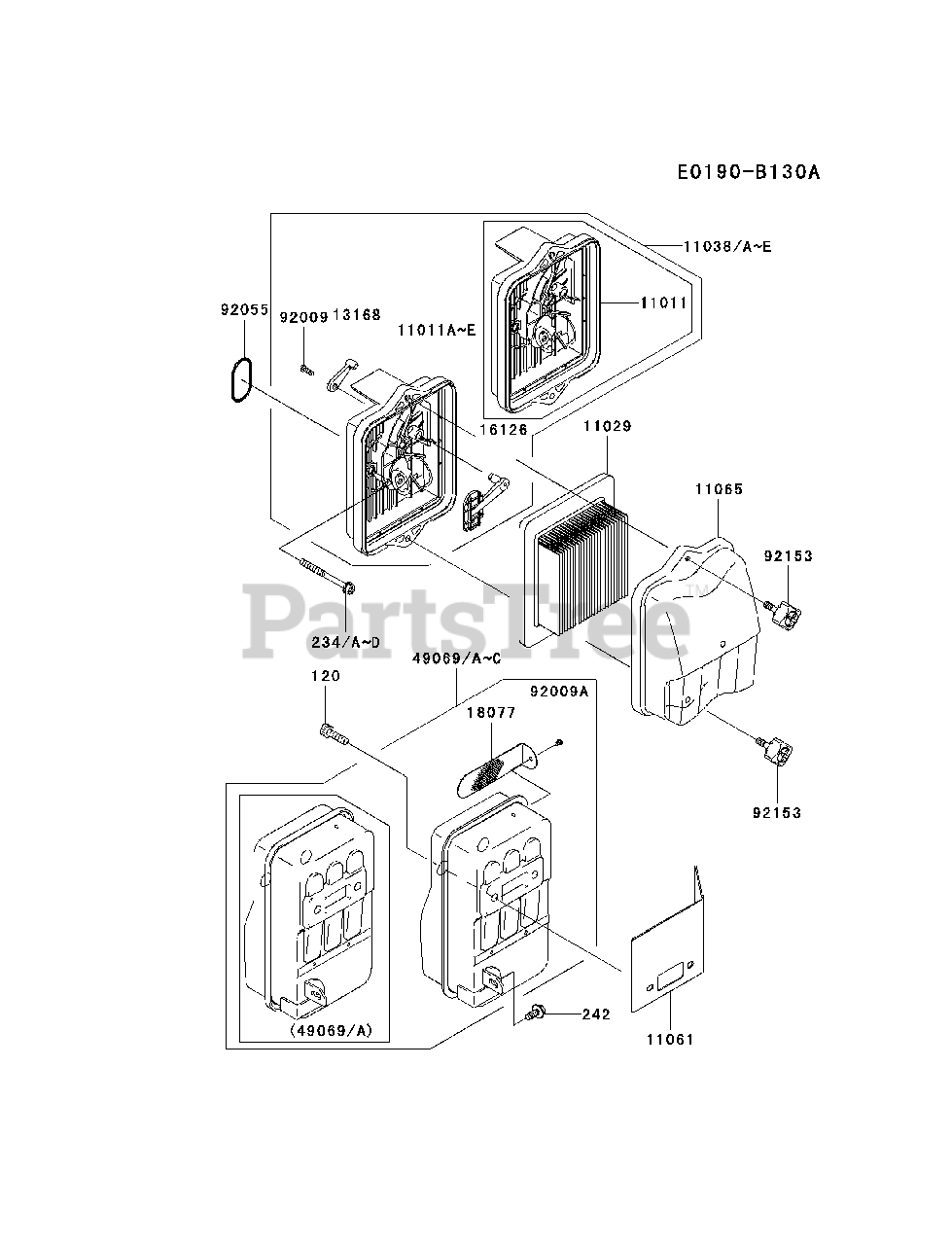

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011D

Kawasaki 11011-2382

CASE-AIR FILTER
(Superseded to 11011-2357)

$19.99

$

Usually ships in 2-5 days

0

11029

Kawasaki 11029-2021

ELEMENT-ASSY-AIR FILTER
(Superseded to 11029-0015)

$21.99

$

In Stock, only 2 left!

0

11038D

Kawasaki 11038-2099

CASE-ASSY-AIR FILTER
(Superseded to 11038-0033)

$29.99

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-2159

GASKET,MUFFLER-CYLINDER

$

$

Not available

11065

Kawasaki 11065-2120

CAP
(Superseded to 11065-0784)

$21.99

$

Usually ships in 2-5 days

0

13168

Kawasaki 13168-2493

LEVER

$3.99

$

In Stock, Qty 6

0

16126

Kawasaki 16126-2240

VALVE

$3.99

$

Usually ships in 2-5 days

0

18077

Kawasaki 18077-2131

ARRESTER-SPARK
(Superseded to 18077-0032)

$5.49

$

Usually ships in 2-5 days

0

49069B

Kawasaki 49069-2446

MUFFLER-ASSY
(Superseded to 49069-2412)

$

$

Not available

92009

Kawasaki 92009-2359

SCREW,3X10

$1.49

$

Usually ships in 2-5 days

0

92009A

Kawasaki 92009-2411

SCREW

$0.99

$

In Stock, Qty 15

0

92055

Kawasaki 92055-2205

RING-O,ID=31.2

$0.99

$

In Stock, only 1 left!

0

92153

Kawasaki 92153-2107

BOLT,5X18
(Superseded to 92154-2054)

$5.49

$

Usually ships in 2-5 days

0

120

Kawasaki 120CB0620

BOLT-SOCKET,6X20
(Superseded to 120Q0620)

$

$

Not available

234

Kawasaki 234AA0555

SCREW-PAN-WSP+-,5X55
(Superseded to 234B0555)

$0.99

$

In Stock, Qty 8

0

242

Kawasaki 242AA0514

SCREW-PAN-WSP+-,5X14

$0.99

$

Usually ships in 2-5 days

0
