KRB 750 AC (KRB750AC-A2) - Kawasaki Blower FRAME/COUPLING Parts Diagram

Blower

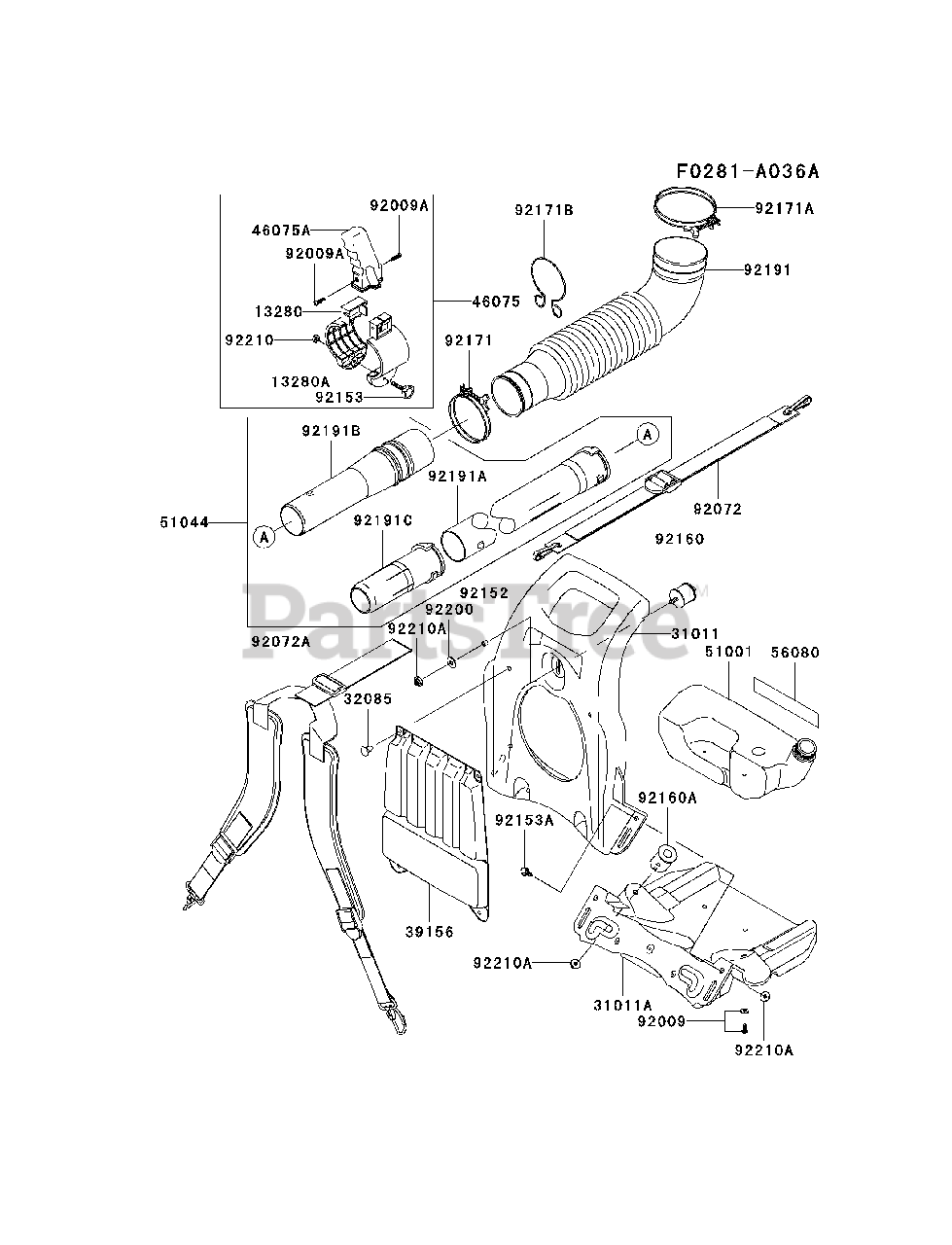

FRAME/COUPLING Parts Diagram

  • Title

13280

Kawasaki 13280-W001

HOLDER,

$5.49

$

Usually ships in 2-5 days

0

13280A

Kawasaki 13280-W002

HOLDER,

$3.99

$

Usually ships in 2-5 days

0

31011

Kawasaki 31011-W003

FRAME,

$74.99

$

Usually ships in 2-5 days

0

31011A

Kawasaki 31011-W004

FRAME,

$74.99

$

Usually ships in 2-5 days

0

32085

Kawasaki 32085-2099

STOPPER

$1.49

$

In Stock, only 4 left!

0

39156

Kawasaki 39156-2074

PAD,FRAME

$35.99

$

Usually ships in 2-5 days

0

46075

Kawasaki 46075-W001

GRIP,ASSY

$18.99

$

Usually ships in 2-5 days

0

46075A

Kawasaki 46075-W002

GRIP

$10.99

$

Usually ships in 2-5 days

0

51001

Kawasaki 51001-W002

TANK-COMP-FUEL
(Superseded to 51001-W004)

$44.99

$

Usually ships in 2-5 days

0

51044

Kawasaki 51044-W002

TUBE-ASSY

$43.99

$

Usually ships in 2-5 days

0

56080

Kawasaki 56080-2149

LABEL-BRAND

$5.49

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-W005

SCREW,5X14

$0.99

$

In Stock, Qty 10

0

92009A

Kawasaki 92009-2433

SCREW,5X18
(Superseded to 92009-2457)

$0.99

$

In Stock, only 4 left!

0

92072

Kawasaki 92072-W003

BAND,HIP

$36.99

$

In Stock, only 1 left!

0

92072A

Kawasaki 92072-W005

BAND,SHOULDER

$60.99

$

In Stock, only 2 left!

0

92152

Kawasaki 92152-2064

COLLAR

$0.99

$

In Stock, Qty 7

0

92153

Kawasaki 92153-W003

BOLT,KNOB,6X30

$3.99

$

Usually ships in 2-5 days

0

92153A

Kawasaki 92153-W006

BOLT,6X20

$1.49

$

Usually ships in 2-5 days

0

92160

Kawasaki 92160-W001

DAMPER,D30-6X14

$13.99

$

Usually ships in 2-5 days

0

92160A

Kawasaki 92160-2050

DAMPER,D40-6X14

$13.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-W002

CLAMP,WIRE,D85
(Superseded to 92171-W006)

$22.99

$

Usually ships in 2-5 days

0

92171A

Kawasaki 92171-W003

CLAMP,WIRE,D105
(Superseded to 92171-W007)

$22.99

$

In Stock, only 1 left!

0

92171B

Kawasaki 92171-2061

CLAMP

$17.99

$

Usually ships in 2-5 days

0

92191

Kawasaki 92191-W001

TUBE

$35.99

$

Usually ships in 2-5 days

0

92191A

Kawasaki 92191-W002

TUBE,370L

$15.99

$

Usually ships in 2-5 days

0

92191B

Kawasaki 92191-W004

TUBE

$21.99

$

Usually ships in 2-5 days

0

92191C

Kawasaki 92191-W007

TUBE

$10.99

$

In Stock, only 1 left!

0

92200

Kawasaki 92200-2111

WASHER

$0.99

$

In Stock, only 3 left!

0

92210

Kawasaki 92210-W001

NUT,M6

$0.99

$

In Stock, Qty 9

0

92210A

Kawasaki 92210-2068

NUT,M6

$1.49

$

In Stock, only 3 left!

0
