KRB 750 A (KRB750A-A2) - Kawasaki Blower CYLINDER/CRANKCASE Parts Diagram

Blower

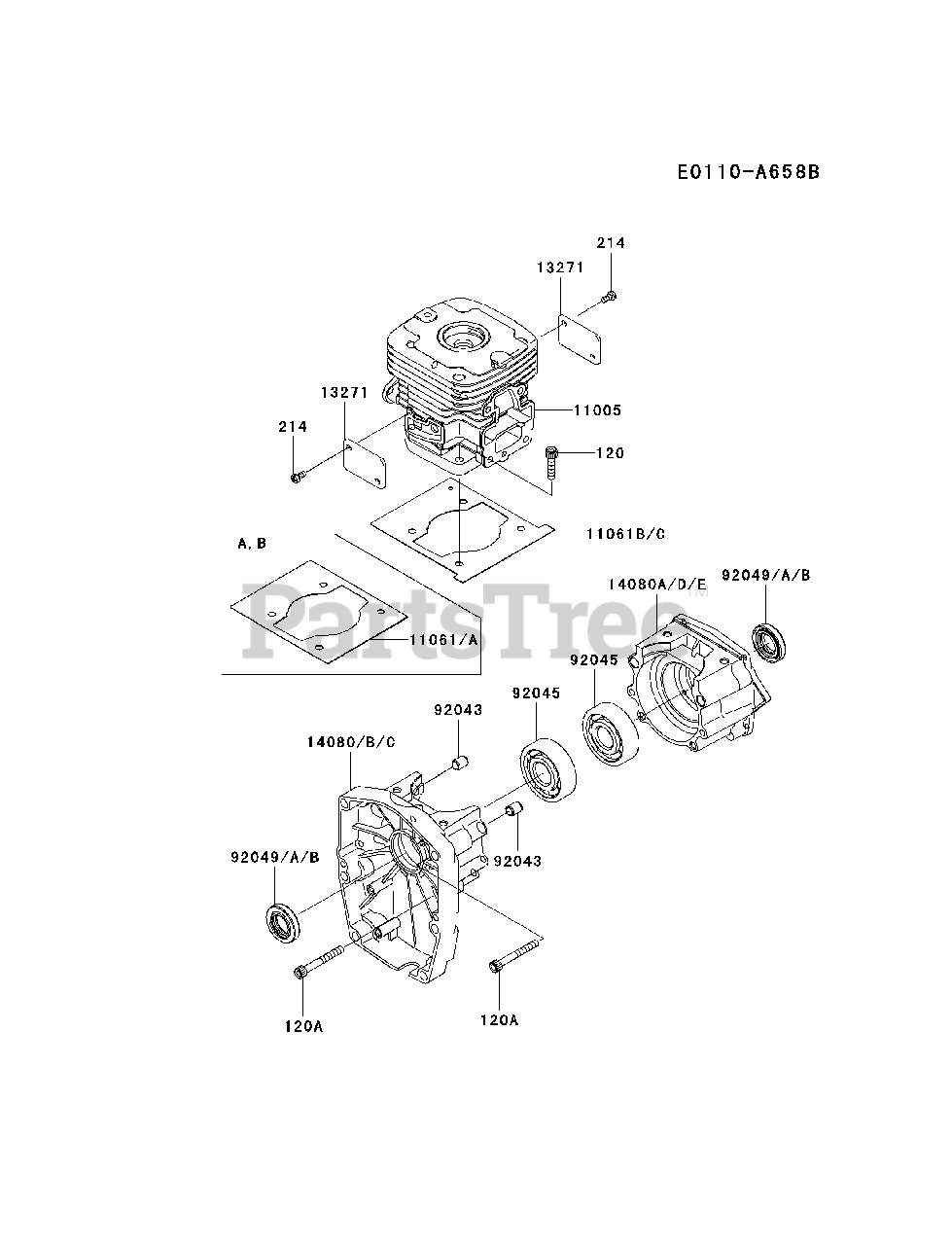

CYLINDER/CRANKCASE Parts Diagram

  • Title

11005

Kawasaki 11005-2157

CYLINDER-ENGINE
(Superseded to 11005-0609)

$296.99

$

In Stock, Qty 10

0

11061A

Kawasaki 11061-2138

GASKET,CYLINDER
(Superseded to 11061-2219)

$

$

Not available

11061C

Kawasaki 11061-2219

GASKET,CYLINDER

$

$

Not available

13271

Kawasaki 13271-2258

PLATE

$2.49

$

Usually ships in 2-5 days

0

14080B

Kawasaki 14080-2072

CRANKCASE

$116.99

$

Usually ships in 2-5 days

0

14080D

Kawasaki 14080-2073

CRANKCASE

$93.99

$

Usually ships in 2-5 days

0

92043

Kawasaki 92043-1302

PIN

$1.49

$

Usually ships in 2-5 days

0

92045

Kawasaki 92045-2268

BEARING-BALL,6303C3

$

$

Not available

92049

Kawasaki 92049-2258

SEAL-OIL,TC 17-30-6
(Superseded to 92049-2271)

$14.99

$

Usually ships in 2-5 days

0

92049B

Kawasaki 92049-2271

SEAL-OIL,TBY 17X30X7
(Superseded to 92049-2281)

$14.99

$

Usually ships in 2-5 days

0

120

Kawasaki 120CB0520

BOLT-SOCKET,5X20
(Superseded to 120S0520)

$2.49

$

In Stock, Qty 5

0

120A

Kawasaki 120CB0540

BOLT-SOCKET,5X40
(Superseded to 120S0540)

$

$

Not available

214

Kawasaki 214AA0408

SCREW-PAN+-,4X8
(Superseded to 214B0408)

$3.99

$

In Stock, Qty 15

0
