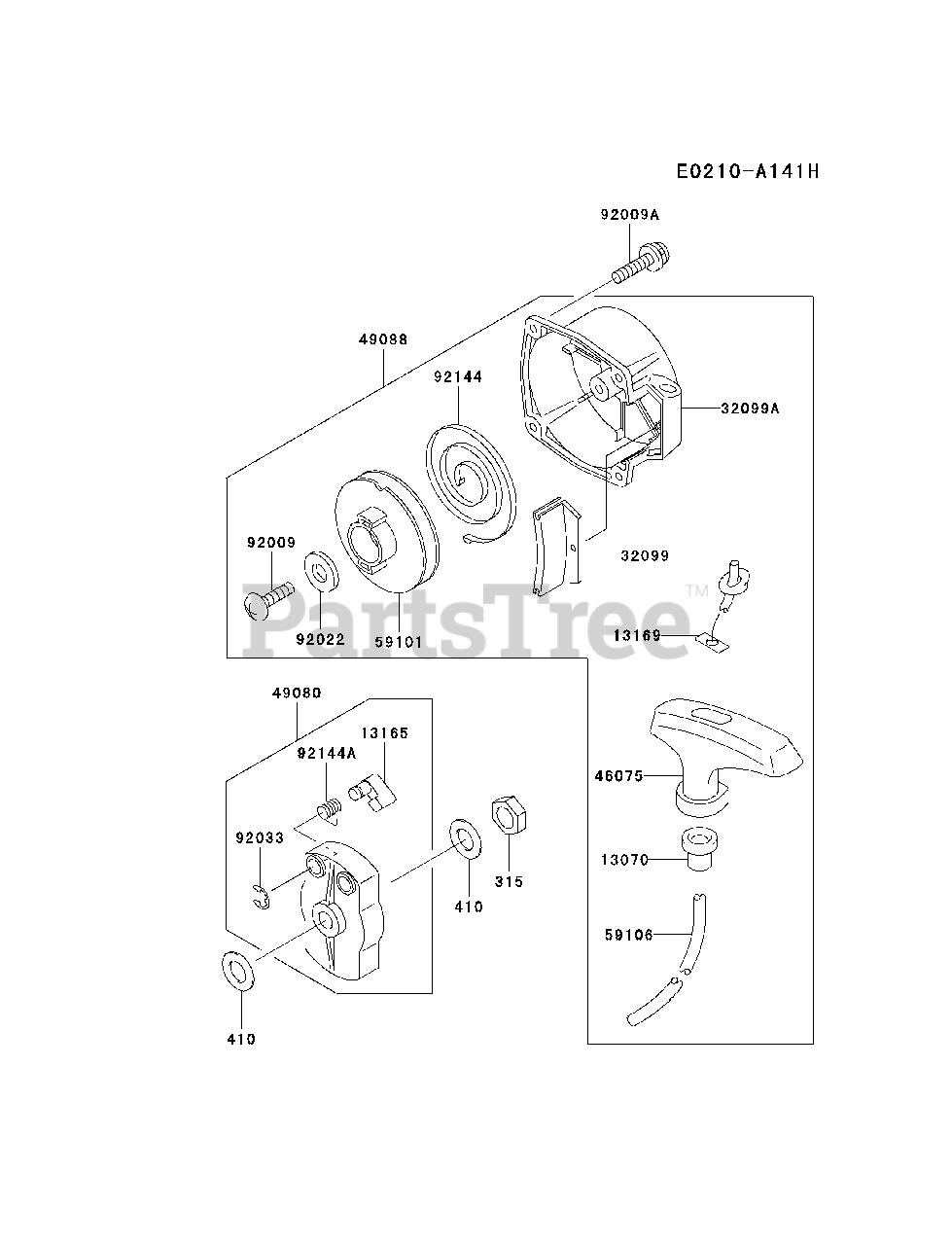

KRB 700 B (HG700A-AS00) - Kawasaki Blower STARTER Parts Diagram

Blower

STARTER Parts Diagram

  • Title

13070

Kawasaki 13070-2064

GUIDE,ROPE
(Superseded to 13070-2120)

$3.99

$

In Stock, only 3 left!

0

13165

Kawasaki 13165-2084

PAWL,RECOIL STARTER

$4.49

$

In Stock, only 1 left!

0

13169

Kawasaki 13169-2386

PLATE,RECOIL STARTER

$2.49

$

Usually ships in 2-5 days

0

32099

Kawasaki 32099-2136

CASE,RECOIL STARTER

$5.99

$

Usually ships in 2-5 days

0

32099A

Kawasaki 32099-2356

CASE,RECOIL STARTER

$

$

Not available

46075

Kawasaki 46075-2129

GRIP,RECOIL STARTER

$

$

Not available

49080

Kawasaki 49080-2185

PULLEY-STARTING

$15.99

$

Usually ships in 2-5 days

0

49088

Kawasaki 49088-2499

STARTER-RECOIL

$

$

Not available

59101

Kawasaki 59101-2074

REEL,RECOIL STARTER

$17.99

$

Usually ships in 2-5 days

0

59106

Kawasaki 59106-2092

ROPE,3.8X1150

$10.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2218

SCREW,5X12
(Superseded to 92009-2199)

$3.49

$

In Stock, Qty 7

0

92009A

Kawasaki 92009-2418

SCREW,4X16

$1.49

$

In Stock, Qty 10

0

92022

Kawasaki 92022-2237

WASHER

$1.49

$

In Stock, only 3 left!

0

92033

Kawasaki 92033-2010

RING-SNAP

$0.99

$

In Stock, Qty 8

0

92144

Kawasaki 92144-2040

SPRING,RECOIL

$19.99

$

Usually ships in 2-5 days

0

92144A

Kawasaki 92144-2046

SPRING,RETURN

$8.49

$

In Stock, only 2 left!

0

315

Kawasaki 315B1000

NUT-HEX-FINE
(Superseded to 315AA1000)

$0.99

$

In Stock, Qty 10

0

410

Kawasaki 410B1000

W-PLAIN-S
(Superseded to 410AA1000)

$0.99

$

Usually ships in 2-5 days

0
