KRB 650 B (KRB650B-A3) - Kawasaki Blower FRAME/COUPLING Parts Diagram

Blower

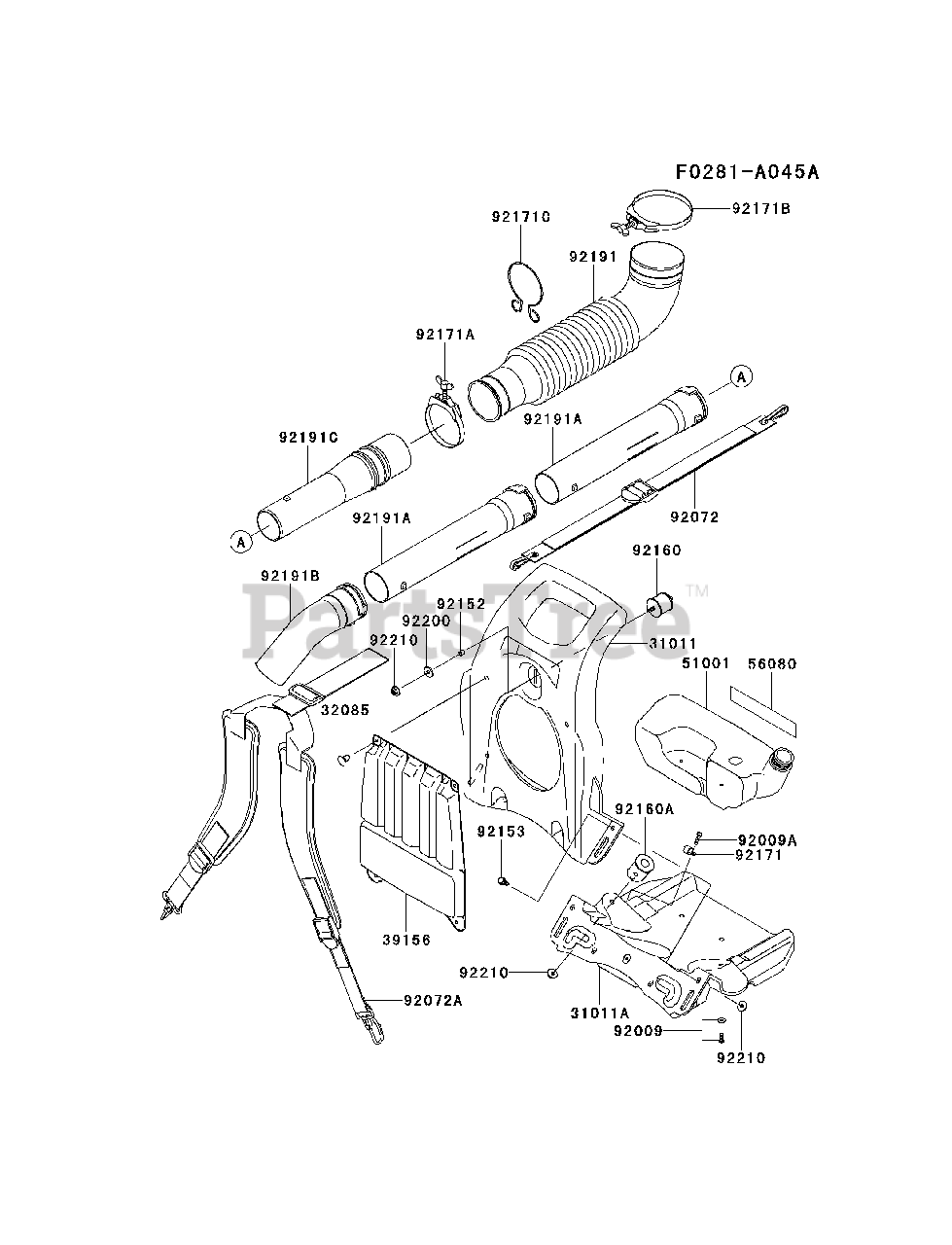

FRAME/COUPLING Parts Diagram

  • Title

31011

Kawasaki 31011-W003

FRAME,

Note: A

$74.99

$

Usually ships in 2-5 days

0

31011A

Kawasaki 31011-W004

FRAME,

Note: B

$74.99

$

Usually ships in 2-5 days

0

32085

Kawasaki 32085-2099

STOPPER

$1.49

$

In Stock, only 4 left!

0

39156

Kawasaki 39156-2074

PAD,FRAME

$35.99

$

Usually ships in 2-5 days

0

51001

Kawasaki 51001-2298

TANK-COMP-FUEL
(Superseded to 51001-W004)

$44.99

$

Usually ships in 2-5 days

0

56080

Kawasaki 56080-2149

LABEL-BRAND

$5.49

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-W005

SCREW,5X14

Note: W16XT1.6

$0.99

$

In Stock, Qty 10

0

92009A

Kawasaki 92009-2433

SCREW,5X18
(Superseded to 92009-2457)

$0.99

$

In Stock, only 2 left!

0

92072

Kawasaki 92072-W003

BAND,HIP

$36.99

$

In Stock, only 1 left!

0

92072A

Kawasaki 92072-W005

BAND,SHOULDER

$60.99

$

In Stock, only 1 left!

0

92152

Kawasaki 92152-2064

COLLAR

$0.99

$

In Stock, Qty 7

0

92153

Kawasaki 92153-W006

BOLT,6X20

$1.49

$

Usually ships in 2-5 days

0

92160

Kawasaki 92160-W001

DAMPER,D30-6X14

$13.99

$

Usually ships in 2-5 days

0

92160A

Kawasaki 92160-2050

DAMPER,D40-6X14

$13.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-W005

CLAMP

$1.99

$

Usually ships in 2-5 days

0

92171A

Kawasaki 92171-W006

CLAMP,D85

$22.99

$

Usually ships in 2-5 days

0

92171B

Kawasaki 92171-W007

CLAMP,D105

$22.99

$

In Stock, only 1 left!

0

92171C

Kawasaki 92171-2061

CLAMP

$17.99

$

Usually ships in 2-5 days

0

92191

Kawasaki 92191-2079

TUBE

$36.99

$

Usually ships in 2-5 days

0

92191A

Kawasaki 92191-2081

TUBE

$15.99

$

In Stock, only 1 left!

0

92191B

Kawasaki 92191-2082

TUBE

$22.99

$

In Stock, only 2 left!

0

92191C

Kawasaki 92191-2113

TUBE

$27.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2111

WASHER

$0.99

$

In Stock, only 3 left!

0

92210

Kawasaki 92210-2068

NUT,M6

$1.49

$

In Stock, only 3 left!

0
