KRB 400 B (HG400A-AS02) - Kawasaki Blower FRAME/COUPLING Parts Diagram

Blower

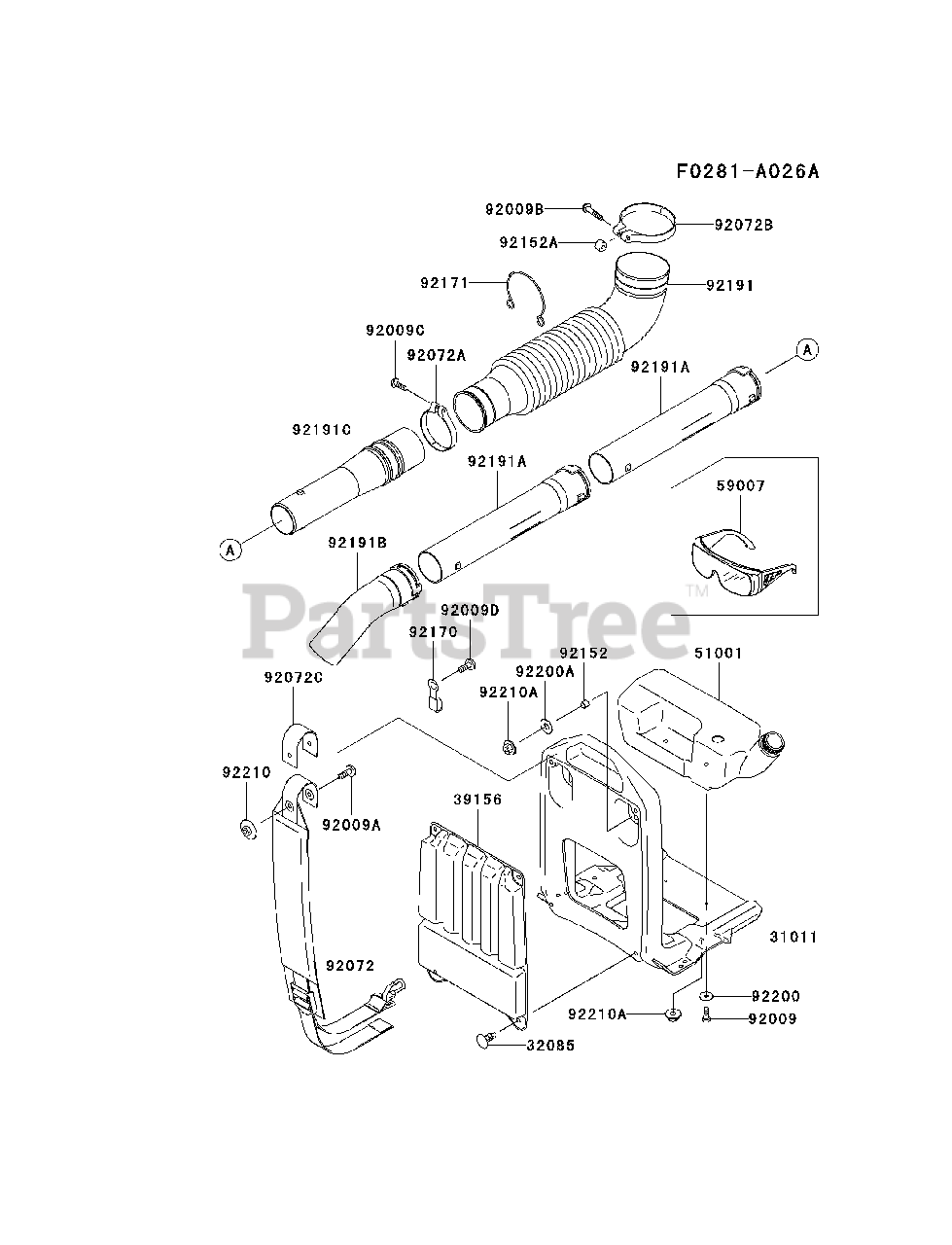

FRAME/COUPLING Parts Diagram

  • Title

31011

Kawasaki 31011-2092

FRAME

$109.99

$

In Stock, only 2 left!

0

32085

Kawasaki 32085-2099

STOPPER

$1.49

$

In Stock, only 4 left!

0

39156

Kawasaki 39156-2074

PAD,FRAME

$35.99

$

Usually ships in 2-5 days

0

51001

Kawasaki 51001-2298

TANK-COMP-FUEL
(Superseded to 51001-W004)

$44.99

$

Usually ships in 2-5 days

0

59007

Kawasaki 59007-2004

GOGGLES

$21.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2428

SCREW,5X14

$0.99

$

In Stock, Qty 6

0

92009A

Kawasaki 92009-2430

SCREW,6X16
(Superseded to 92009-W002)

$1.49

$

In Stock, Qty 8

0

92009B

Kawasaki 92009-2431

SCREW,5X25

$1.49

$

In Stock, only 1 left!

0

92009C

Kawasaki 92009-2432

SCREW,5X16

$0.99

$

In Stock, Qty 9

0

92009D

Kawasaki 92009-2452

SCREW

$

$

Not available

92072

Kawasaki 92072-2131

BAND

$40.99

$

In Stock, only 1 left!

0

92072A

Kawasaki 92072-2132

BAND,D75

$4.49

$

Usually ships in 2-5 days

0

92072B

Kawasaki 92072-2137

BAND,D100

$

$

Not available

92072C

Kawasaki 92072-2140

BAND

$6.49

$

In Stock, only 2 left!

0

92152

Kawasaki 92152-2064

COLLAR

$0.99

$

In Stock, Qty 7

0

92152A

Kawasaki 92152-2065

COLLAR

$0.99

$

In Stock, Qty 5

0

92170

Kawasaki 92170-2112

CLAMP

$

$

Not available

92171

Kawasaki 92171-2061

CLAMP

$17.99

$

Usually ships in 2-5 days

0

92191

Kawasaki 92191-2079

TUBE

$36.99

$

Usually ships in 2-5 days

0

92191A

Kawasaki 92191-2081

TUBE

$15.99

$

In Stock, only 1 left!

0

92191B

Kawasaki 92191-2082

TUBE

$22.99

$

In Stock, only 2 left!

0

92191C

Kawasaki 92191-2113

TUBE

$27.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2106

WASHER,5.3X16X2

$0.99

$

In Stock, Qty 6

0

92200A

Kawasaki 92200-2111

WASHER

$0.99

$

In Stock, only 3 left!

0

92210

Kawasaki 92210-2067

NUT,M6

$1.99

$

In Stock, Qty 5

0

92210A

Kawasaki 92210-2068

NUT,M6

$1.49

$

In Stock, only 3 left!

0
