KRB 300 A (KRB300A-A1) - Kawasaki Blower ELECTRIC-EQUIPMENT Parts Diagram

Blower

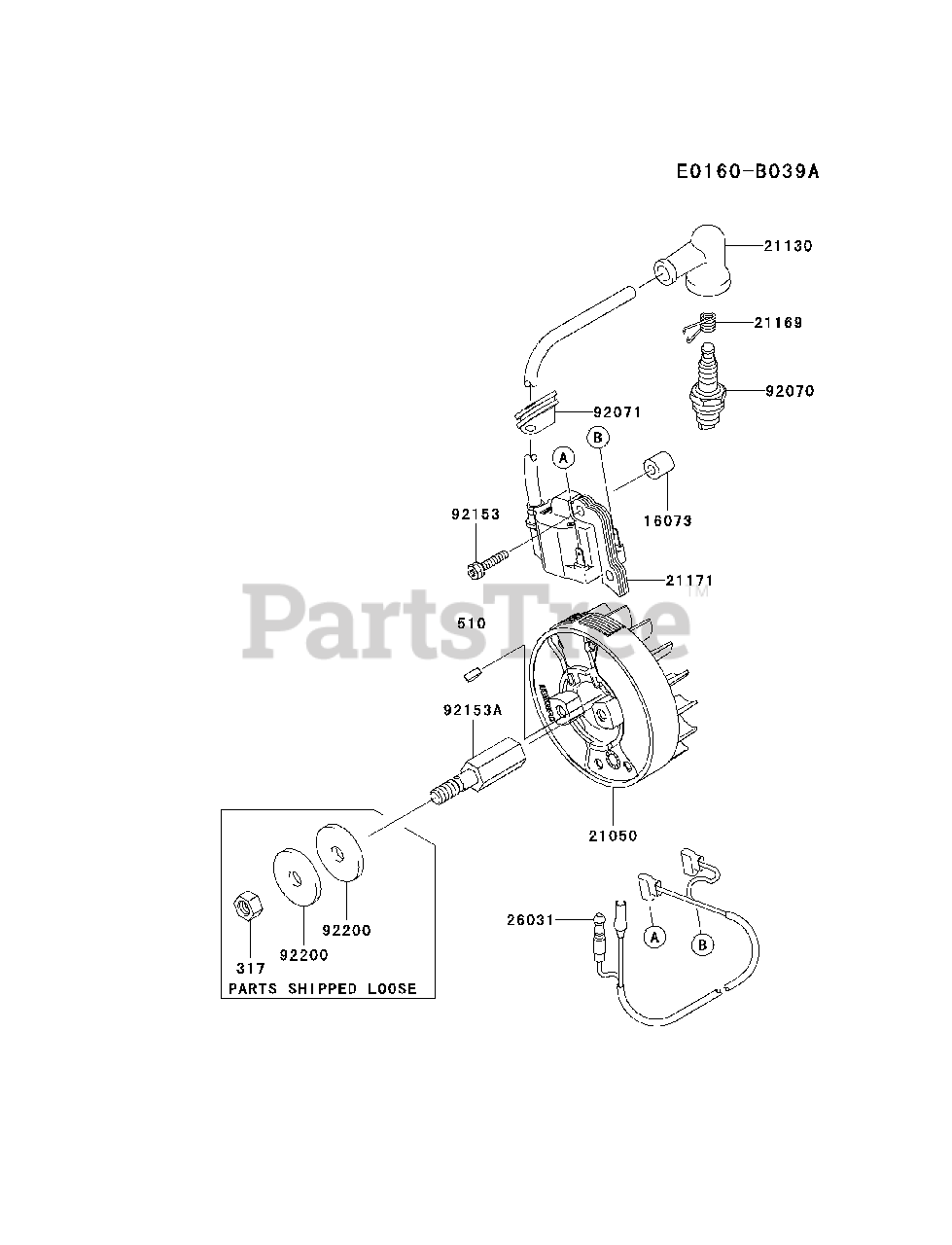

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

16073

Kawasaki 16073-2220

INSULATOR

$1.49

$

In Stock, Qty 7

0

21050

Kawasaki 21050-2311

FLYWHEEL

$151.99

$

Usually ships in 2-5 days

0

21130

Kawasaki 21130-2056

CAP-SPARK PLUG
(Superseded to 3119AA-8418D)

$5.49

$

In Stock, Qty 18

0

21169

Kawasaki 21169-2051

TERMINAL
(Superseded to 311509-8419B)

$

$

Not available

21171

Kawasaki 21171-2245

COIL-ASSY-IGNITION

$111.99

$

Usually ships in 2-5 days

0

26031

Kawasaki 26031-2067

HARNESS

$4.49

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2108

PLUG-SPARK,BPMR6A,SOLID
(Superseded to BPMR6A)

Note: NGK

$3.99

$

In Stock, Qty 11

0

92071

Kawasaki 92071-2163

GROMMET

$

$

Not available

92153

Kawasaki 92153-2079

BOLT,4X20

$1.49

$

In Stock, Qty 6

0

92153A

Kawasaki 92153-2105

BOLT

$

$

Not available

92200

Kawasaki 92200-2143

WASHER,18.2X30X3.2

$

$

Not available

317

Kawasaki 317AA0800

NUT-HEX-SMALL,8MM
(Superseded to 92017-006)

$0.99

$

In Stock, Qty 19

0

510

Kawasaki 510A3100

KEY-WOODRUFF

$2.99

$

In Stock, only 1 left!

0
