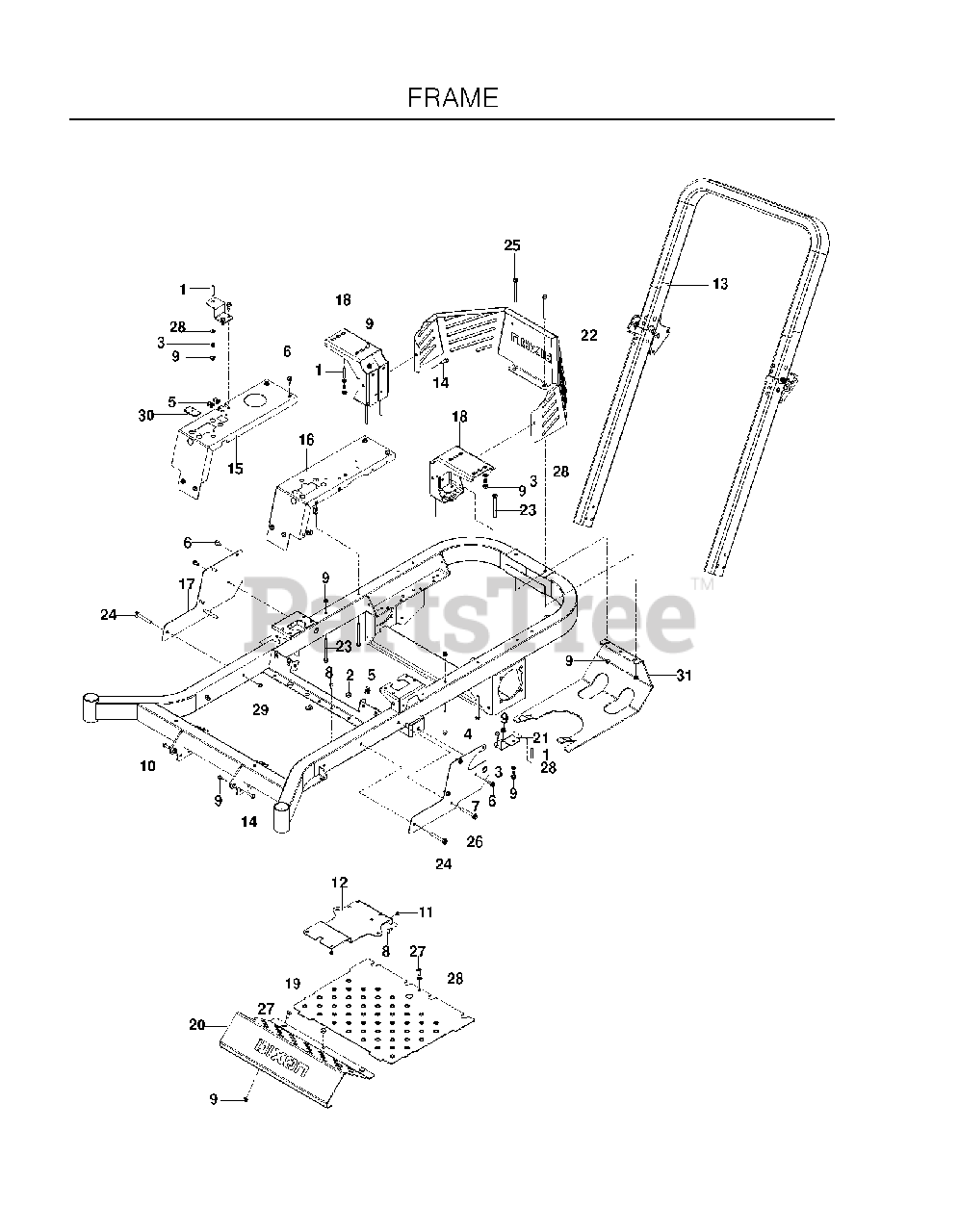

Kodiak SE 5225 CE (966057501) - Dixon 52" Kodiak Zero-Turn Mower (2010-01) FRAME Parts Diagram

52" Kodiak Zero-Turn Mower

FRAME Parts Diagram

  • Title

1

Dixon 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

2

Dixon 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

3

Dixon 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

4

Dixon 539113226

Hex Washer Head Bolt, 5/16-18 X 3/4 Thread Forming
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

5

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

6

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

7

Dixon 539132179

SIDE, LT, BL

$21.99

$

Usually ships in 3-10 days

0

8

Dixon 539111786

RHSSNB, 1/4-20X5/8

$2.49

$

Usually ships in 3-10 days

0

9

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

10

Dixon 575725302

FRAME, BLUE W/DECALS

Note: w / SAFETY DECALS

$1821.99

$

Usually ships in 3-10 days

0

11

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

12

Dixon 539131537

BATTERY MOUNT

$42.99

$

Usually ships in 3-10 days

0

13

Dixon 521966101

ASSEMBLY, ROPS

$661.99

$

Usually ships in 3-10 days

0

14

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

15

Dixon 539131681

PANEL, FILLER, RT, DK BLUE

$51.99

$

Usually ships in 3-10 days

0

16

Dixon 539131684

PANEL, FILLER, LT - BLUE

$66.99

$

Usually ships in 3-10 days

0

17

Dixon 539131687

SIDE, RT, BL

$21.99

$

Usually ships in 3-10 days

0

18

Dixon 539131692

MOUNT, TANK, RR

$109.99

$

Usually ships in 3-10 days

0

19

Dixon 539132845

FLOOR PAN W/DECALS

Note: w / SAFETY DECALS

$80.99

$

Usually ships in 3-10 days

0

20

Dixon 521941302

PLATE.FOOTREST.RAM.DARK.BLUE

$121.99

$

Usually ships in 3-10 days

0

21

Dixon 539131706

SUPPORT, TANK, FT, BLK

$18.99

$

Usually ships in 3-10 days

0

22

Dixon 521922702

GUARD, REAR, BLUE

$151.99

$

Usually ships in 3-10 days

0

23

Dixon 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

24

Dixon 539131781

HHFS 3/8-16 X 2 3/4

$5.99

$

In Stock, only 2 left!

0

25

Dixon 539976940

CAPSCREW 5/16 X 4-1/2 HED HEAD

$

$

Not available

26

Dixon 539133006

HHFS 3/8-16 X 2.5 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

28

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

29

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

30

Dixon 532404951

PLUG DASH
(Superseded to 532439976)

$6.49

$

Usually ships in 3-10 days

0

31

Dixon 521921802

GUARD, SKID, BLUE
(Superseded to 521921805)

$96.99

$

Usually ships in 3-10 days

0
