Kodiak SE 5225 CE (966057501) - Dixon 52" Kodiak Zero-Turn Mower (2010-01) CONTROLS Parts Diagram

52" Kodiak Zero-Turn Mower

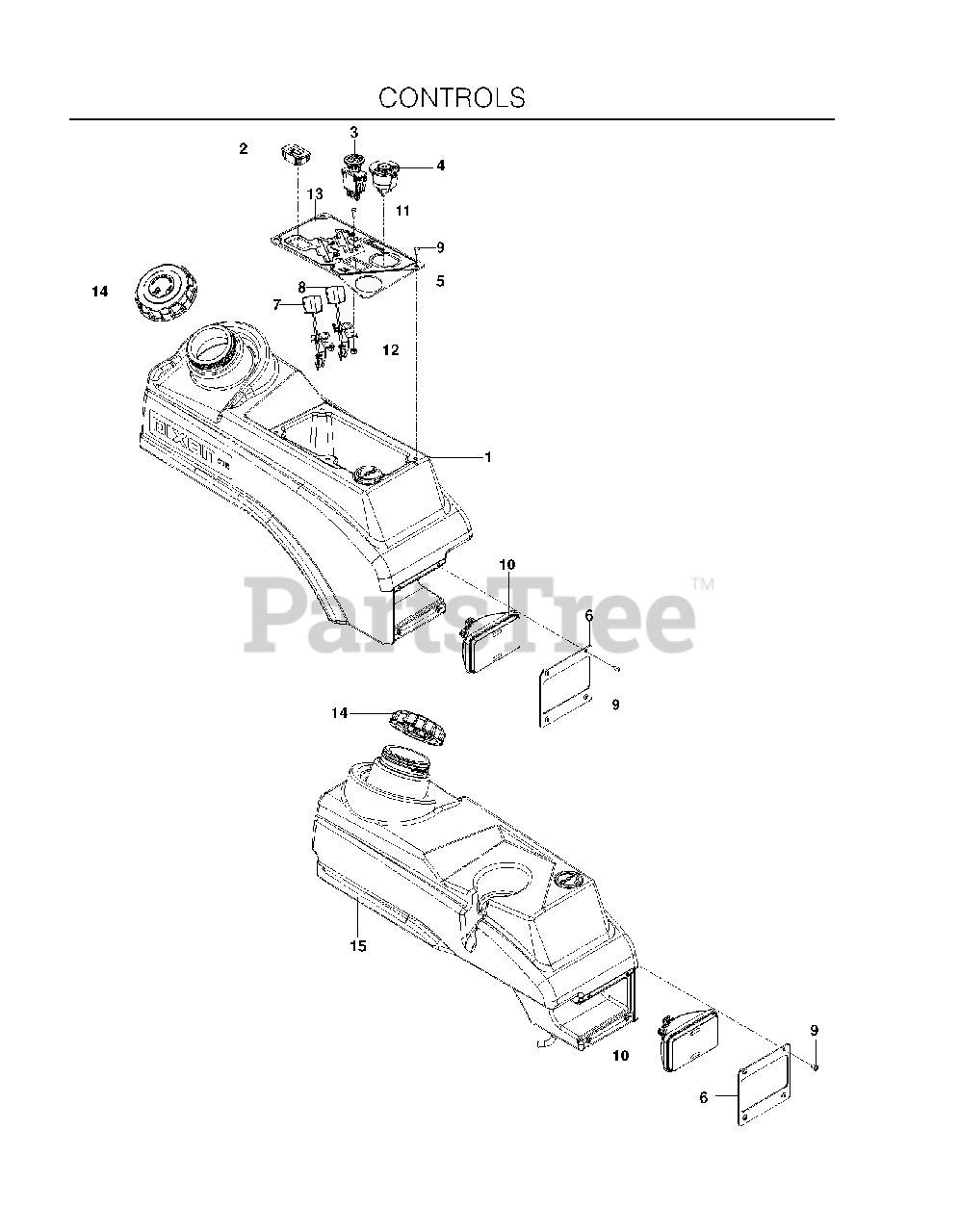

CONTROLS Parts Diagram

  • Title

1

Dixon 539114058

TANK, FUEL, RT

$

$

Not available

2

Dixon 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

3

Dixon 539131627

SWITCH, PTO 10 AMP
(Superseded to 597520401)

$100.99

$

In Stock, Qty 5

0

4

Dixon 539107541

IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

5

Dixon 539114066

CONTROL PANEL

$

$

Not available

6

Dixon 539114075

PLATE LIGHT

$24.99

$

Usually ships in 3-10 days

0

7

Dixon 539118816

CABLE THROTTLE

$26.99

$

Usually ships in 3-10 days

0

8

Dixon 539121866

CHOKE CABLE

$

$

Not available

9

Dixon 539114341

SCR #10-24 X 3/8 SKT HD BLK OX

$4.99

$

In Stock, only 3 left!

0

10

Dixon 539114232

LIGHT

$

$

Not available

11

Dixon 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

12

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

13

Dixon 539114068

DECAL, CONTROL

$10.99

$

Usually ships in 3-10 days

0

14

Dixon 539130394

FUEL CAP, GENERIC

$31.99

$

Usually ships in 3-10 days

0

15

Dixon 539114057

TANK, FUEL, LT

$

$

Not available

Dixon 539132044

PIGTAIL, LIGHT

$6.99

$

Usually ships in 3-10 days

0

Dixon 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0
