Kodiak SE 5223 Van BF (965884601) - Dixon 52" Kodiak Zero-Turn Mower (2008-08) ENGINE PLATE Parts Diagram

52" Kodiak Zero-Turn Mower

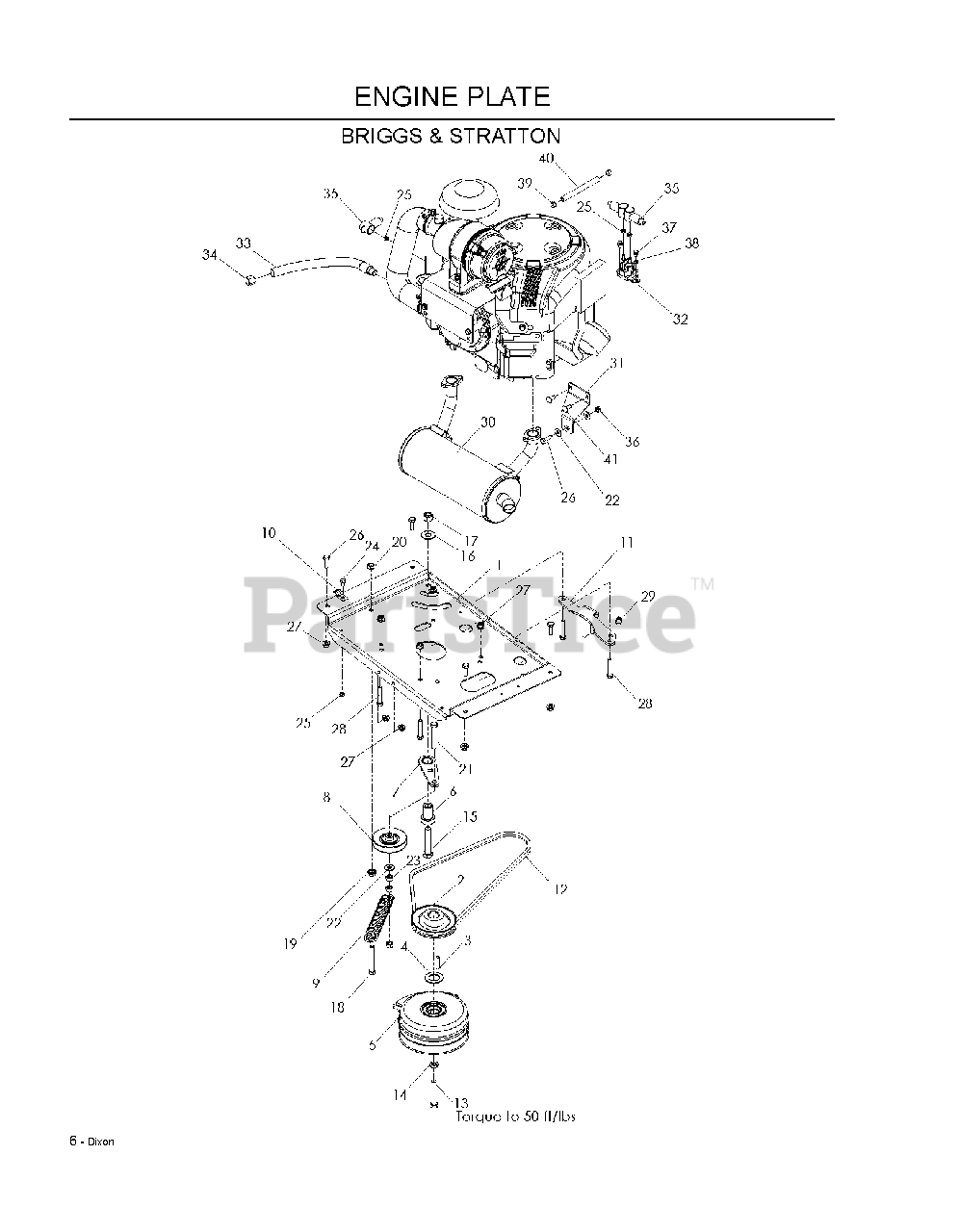

ENGINE PLATE Parts Diagram

  • Title

1

Dixon 521916202

PLATE, ENGINE, BLK

$157.99

$

Usually ships in 3-10 days

0

2

Dixon 539109639

PULLEY

$

$

Not available

3

Dixon 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

4

Dixon 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available

5

Dixon 539132733

CLUTCH, 200 FT/LB

$485.99

$

Usually ships in 3-10 days

0

6

Dixon 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

7

Dixon 539112092

IDLER ARM WELDMENT
(Superseded to 583593901)

$13.99

$

In Stock, only 2 left!

0

8

Dixon 539117501

PULLEY, IDLER 3 METAL

$44.99

$

In Stock, only 1 left!

0

9

Dixon 539101977

SPRING

$17.99

$

In Stock, Qty 10

0

10

Dixon 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

11

Dixon 521922302

STOP, CLUTCH, BLK
(Superseded to 522559501)

$

$

Not available

12

Dixon 521966701

BELT, "A", 44.0"

$

$

Not available

13

Dixon 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 8

0

14

Dixon 539990247

WASHER 7/16 LOCK

$

$

Not available

15

Dixon 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

16

Dixon 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

18

Dixon 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$5.99

$

In Stock, only 3 left!

0

19

Dixon 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

21

Dixon 539110122

HCS 3/8-16 X 2-1/2 TPBLT

$3.99

$

In Stock, only 1 left!

0

22

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

23

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

24

Dixon 539990071

HCS 1/4-20.

$3.99

$

Usually ships in 3-10 days

0

25

Dixon 539108120

JAM NUT 1/4C
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

26

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

27

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

28

Dixon 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

29

Dixon 539976856

TIE, PLASTIC

$5.99

$

Usually ships in 3-10 days

0

30

Dixon 539110419

MUFFLER.VANGUARD.23HP

$

$

Not available

31

Dixon 521917102

MOUNT, VANGUARD MUFFLER, BLK

$21.99

$

Usually ships in 3-10 days

0

32

Dixon 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

33

Dixon 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

34

Dixon 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

35

Dixon 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

36

Dixon 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

37

Dixon 539990302

HWST 1/4C X 3/8

$

$

Not available

38

Dixon 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

39

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

40

Dixon 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

41

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

Dixon 539107516

KOHLER PIGTAIL-CV490S

Note: NOT SHOWN

$

$

Not available

Dixon 539102757

CABLE POSITIVE

Note: NOT SHOWN

$15.99

$

Usually ships in 3-10 days

0
