Kodiak SE 5223 Van (965871801) - Dixon 52" Kodiak Zero-Turn Mower (2008-08) 52INCH CUTTING DECK Parts Diagram

52" Kodiak Zero-Turn Mower

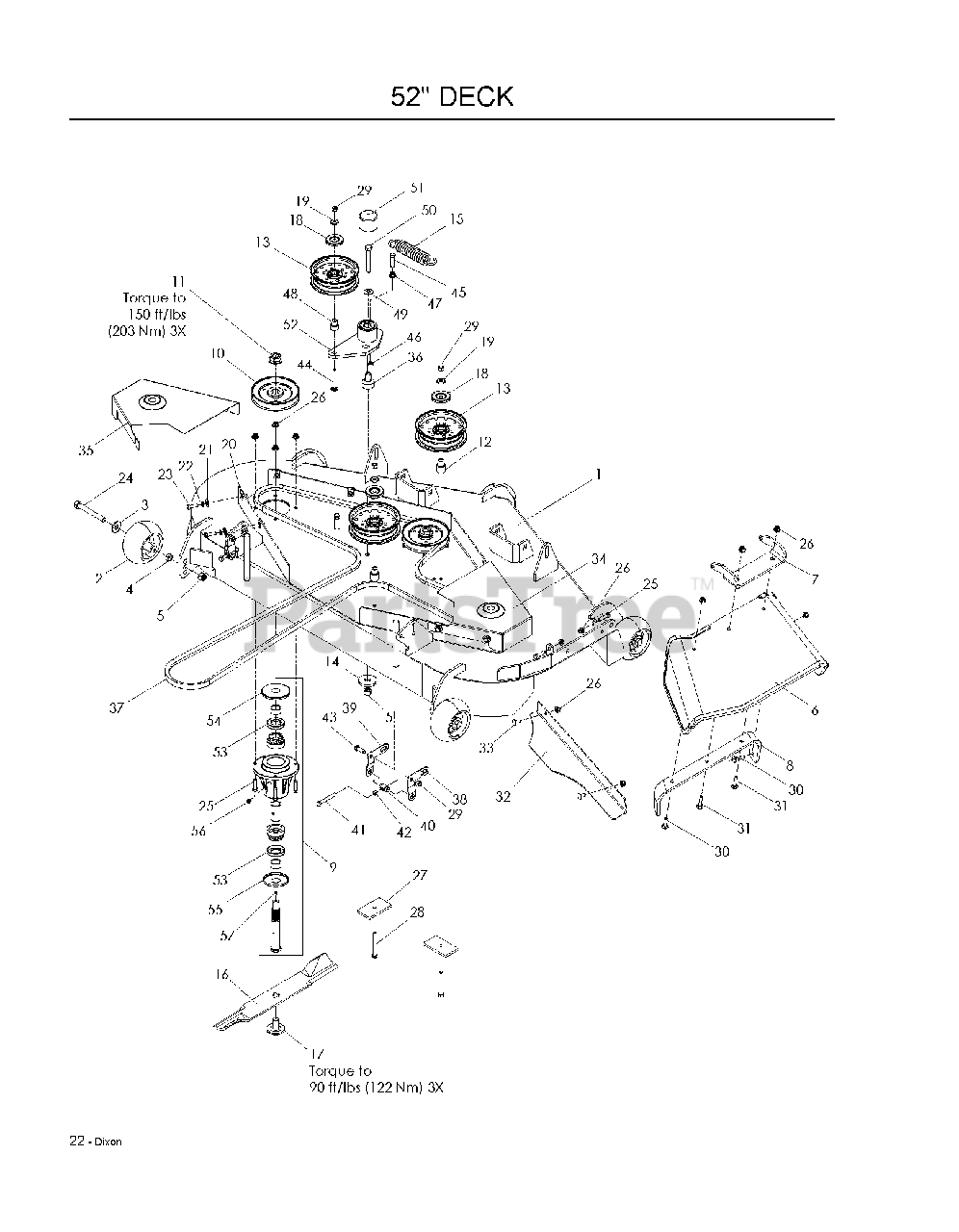

52INCH CUTTING DECK Parts Diagram

  • Title

1

Dixon 521929103

DECK W/DECALS 52 DIX

$2306.99

$

Usually ships in 3-10 days

0

2

Dixon 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 18

0

3

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

4

Dixon 539990625

NUT 1/2 HEX JAM
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

5

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

6

Dixon 539130901

CHUTE, RUBBER DISCHARGE 52/61"

$91.99

$

Usually ships in 3-10 days

0

7

Dixon 539130917

PIVOT BRACKET - CHUTE

$148.99

$

Usually ships in 3-10 days

0

8

Dixon 539130920

BRKT, REINF - CHUTE 52/61"
(Superseded to 592964402)

$31.99

$

In Stock, only 2 left!

0

9

Dixon 539131383

HOUSING ASM, 52/61
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

10

Dixon 539112124

PULLEY 52

$45.99

$

Usually ships in 3-10 days

0

11

Dixon 539130653

NUT FLANGE 3/4-16
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

12

Dixon 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

13

Dixon 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

14

Dixon 539102243

WASHER, SUPPORT

$

$

Not available

15

Dixon 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

16

Dixon 510417801

BLADE, 18"

$34.99

$

In Stock, only 3 left!

0

17

Dixon 539119007

BLADE BOLT/WASHER

$10.99

$

In Stock, only 3 left!

0

18

Dixon 510254501

DUST SHIELD

$

$

Not available

19

Dixon 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

20

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

21

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

22

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

23

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

24

Dixon 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.99

$

In Stock, Qty 17

0

25

Dixon 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

26

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

27

Dixon 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

28

Dixon 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

29

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

30

Dixon 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

31

Dixon 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

32

Dixon 539112417

CONFINEMENT PLATE, 52"
(Superseded to 593565002)

$31.99

$

Usually ships in 3-10 days

0

33

Dixon 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

34

Dixon 521969402

SHIELD, BELT, 52 RT, BLUE

Note: RT

$72.99

$

Usually ships in 3-10 days

0

35

Dixon 521969502

SHIELD.BELT.52 LT.BLUE.DIXON

Note: LT

$91.99

$

Usually ships in 3-10 days

0

36

Dixon 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

37

Dixon 539112335

BELT, DECK 52"

$

$

Not available

38

Dixon 539131857

PITCH, ADJUST, RT

Note: RT

$48.99

$

Usually ships in 3-10 days

0

39

Dixon 539131858

PITCH, ADJUST, LT

Note: LT

$48.99

$

In Stock, only 2 left!

0

40

Dixon 539131859

TRUNION, PITCH

$

$

Not available

41

Dixon 539108396

HCS 5/16-18 X 2 1/2 TPBLT

$

$

Not available

42

Dixon 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

43

Dixon 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

44

Dixon 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

45

Dixon 539107042

HCS 3/8-16 X 1-1/2

$3.99

$

In Stock, Qty 6

0

46

Dixon 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

47

Dixon 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

48

Dixon 539130242

BUSHING, IDLER

$3.99

$

In Stock, only 4 left!

0

49

Dixon 539115528

CONTACT BELLSPR 1/2

$3.99

$

Usually ships in 3-10 days

0

50

Dixon 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

51

Dixon 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0

52

Dixon 539130391

ARM-IDLER W/BRG

$

$

Not available

53

Dixon 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

54

Dixon 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

55

Dixon 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

56

Dixon 539977326

PLUG-VENTED

$13.99

$

Usually ships in 3-10 days

0

57

Dixon 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0
