Kodiak 60 (968999624) - Dixon 60" Kodiak Zero-Turn Mower, 25hp Kohler (2008) STEERING Parts Diagram

60" Kodiak Zero-Turn Mower, 25hp Kohler

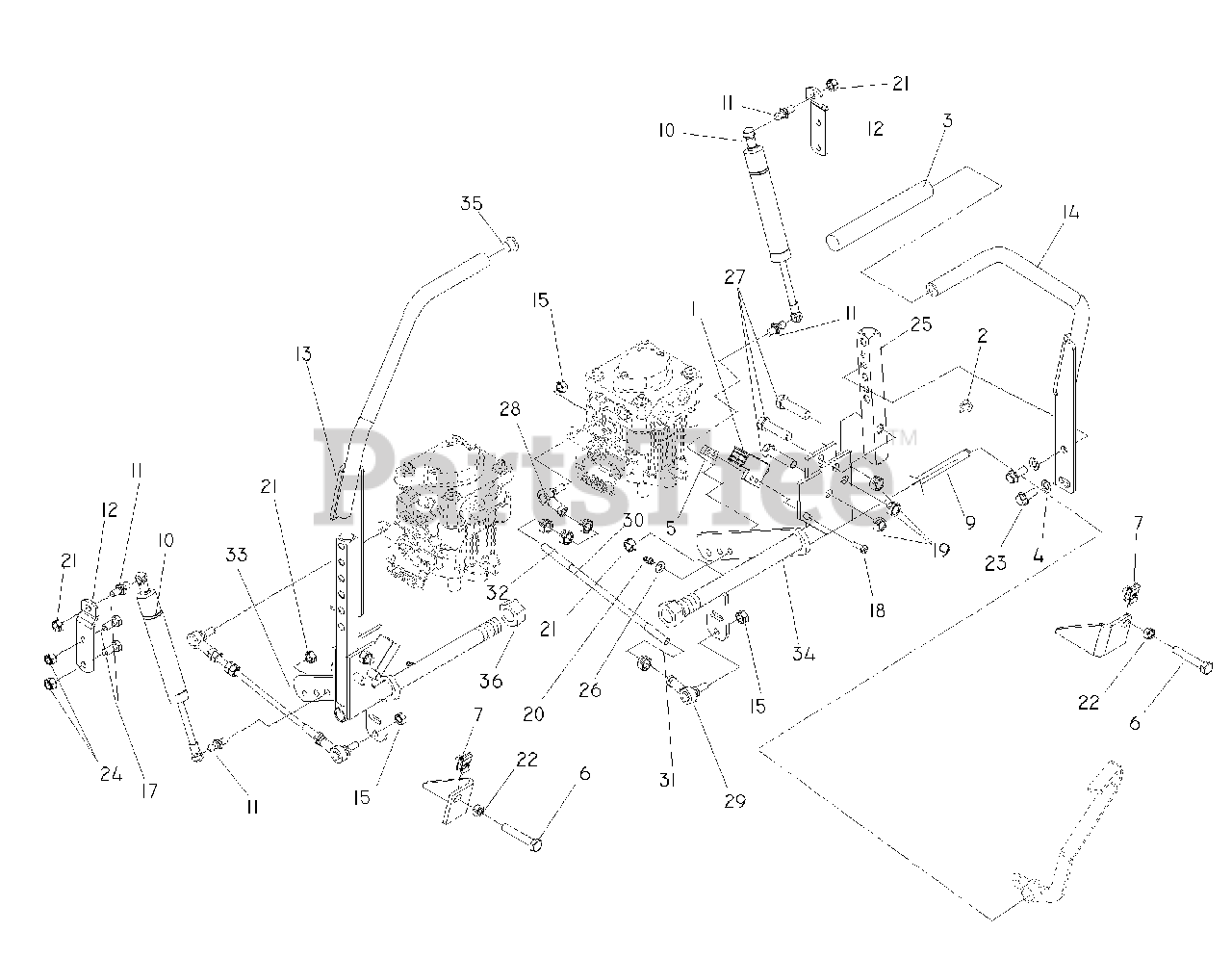

STEERING Parts Diagram

  • Title

1

Dixon 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

2

Dixon 539101949

E-RING 1/2 (2 2)

$3.99

$

Usually ships in 3-10 days

0

3

Dixon 539122635

GRIP, FOAM (GROUND) 15
(Superseded to 539130894)

$9.99

$

In Stock, only 3 left!

0

4

Dixon 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.99

$

In Stock, only 4 left!

0

5

Dixon 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

6

Dixon 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

7

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

9

Dixon 539108659

CONTROL SHAFT

$30.99

$

Usually ships in 3-10 days

0

10

Dixon 539110606

DAMPENER
(Superseded to 539131932)

$87.99

$

Usually ships in 3-10 days

0

11

Dixon 539110607

STUD.BALL.10MM

$4.99

$

Usually ships in 3-10 days

0

12

Dixon 539110811

DAMPENER ARM

$

$

Not available

13

Dixon 539114335

LEVER, DRIVE, RT

Note: RIGHT

$

$

Not available

14

Dixon 539114336

LEVER, DRIVE, LT

Note: LEFT

$84.99

$

Usually ships in 3-10 days

0

15

Dixon 539110943

NUT 5/16F NYLOC

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

18

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

19

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

20

Dixon 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

21

Dixon 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

22

Dixon 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

23

Dixon 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

24

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

25

Dixon 539110638

CONTROL ARM

$42.99

$

In Stock, only 1 left!

0

26

Dixon 539103547

WASHER

$0.99

$

In Stock, only 2 left!

0

27

Dixon 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

28

Dixon 539110603

SPHERICAL ROD END, RH

Note: RIGHT

$40.99

$

Usually ships in 3-10 days

0

29

Dixon 539110604

SPHERICAL ROD END, LH

Note: LEFT

$24.99

$

In Stock, only 1 left!

0

30

Dixon 539103264

PUMP CONTROL LINK

$

$

Not available

31

Dixon 539991073

NUT 5/16F LEFTHAND

Note: LH

$3.99

$

Usually ships in 3-10 days

0

32

Dixon 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

33

Dixon 539131336

CONTROL-DRIVE RT

Note: RIGHT

$

$

Not available

34

539131337

Note: LEFT

$

$

Not available

35

Dixon 539122636

END PLUG 15/16` (BLACK)

$6.49

$

In Stock, only 2 left!

0

36

Dixon 539990820

NUT 3/4 X 16 HEX CTR

$3.99

$

Usually ships in 3-10 days

0
